ACOPower | 100w 12v Portable Solar Panel kit, Foldable Mono Suitcase, proteusX Waterproof 20A Charge Controller

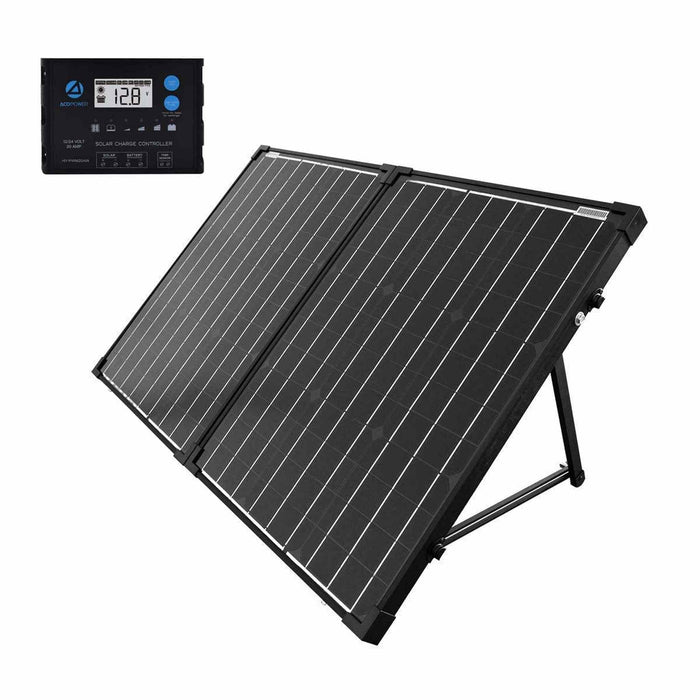

ACOPOWER 100W 12V Portable Solar Panel Kit – Foldable Mono Suitcase with ProteusX Waterproof 20A Charge Controller

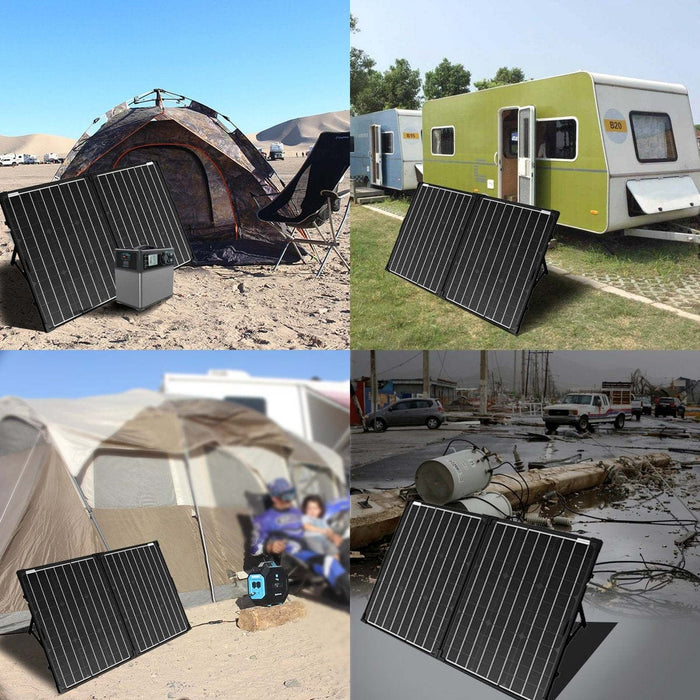

The ACOPOWER 100W Monocrystalline Solar Panel Kit is a high-performance, portable power solution designed for off-grid applications. Featuring a foldable mono suitcase design and a ProteusX waterproof 20A charge controller, this kit is ideal for RVs, campers, boats, cabins, and emergency backup systems. Its plug-and-play setup, durable build, and advanced charge management make it a reliable choice for anyone seeking efficient, off-grid power generation.
Key Features
-
100W High-Efficiency Monocrystalline Panels
Premium-grade solar cells provide excellent energy conversion, delivering more power in less space compared to polycrystalline options. -

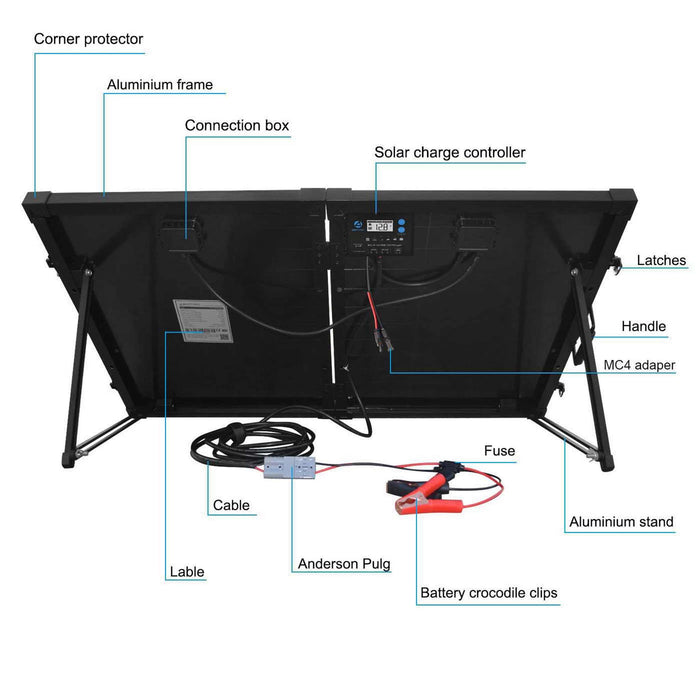

Foldable Mono Suitcase Design
Compact, portable, and easy to transport. Integrated stand and handle make setup quick and hassle-free—no tools required. -
ProteusX Waterproof 20A PWM Charge Controller
Features 4-stage charging (bulk, boost, float, equalization) with a built-in LCD display for real-time system monitoring. Offers full protection against overcharging, over-discharging, reverse polarity, and short circuits. -

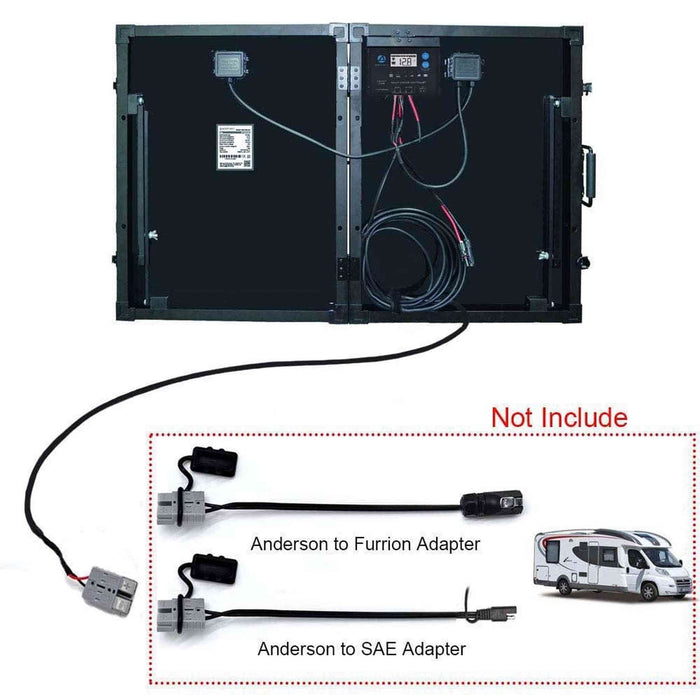

Plug-and-Play Installation

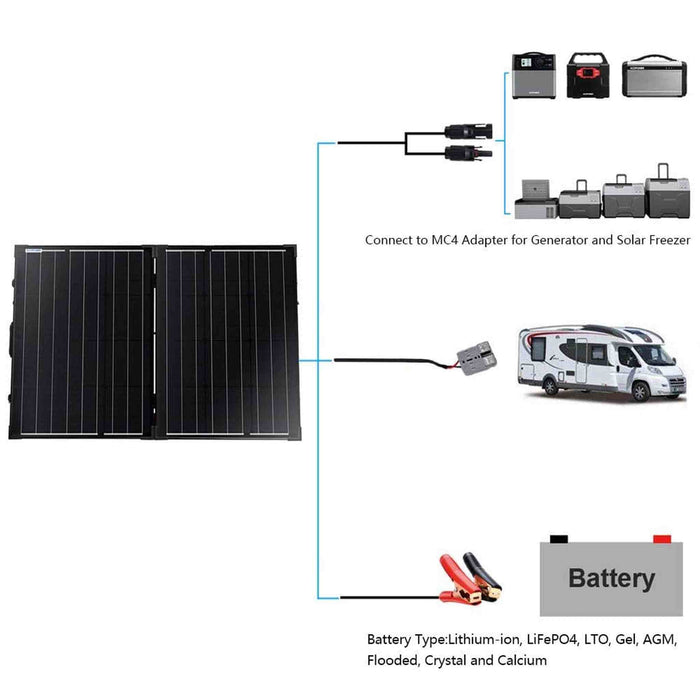

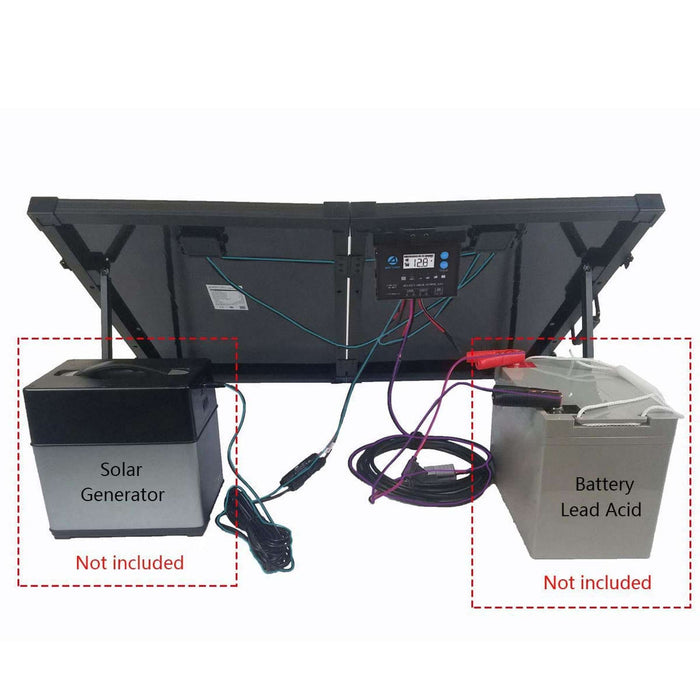

Comes with pre-attached cables and connectors, compatible with multiple 12V battery types—Sealed, Gel, Flooded, and Lithium. -
Weather-Resistant and Rugged Construction
Built with tempered glass and a corrosion-resistant aluminum frame for long-lasting performance in outdoor and mobile environments. -

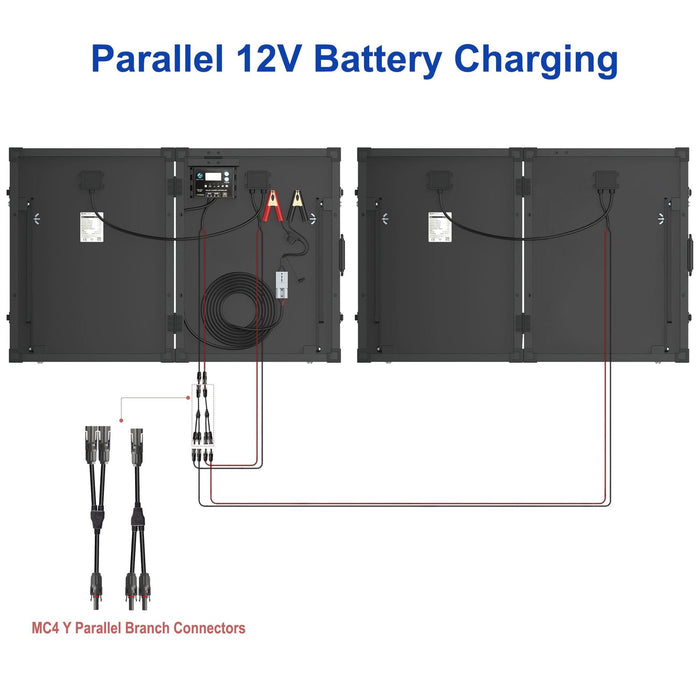

Expandable Solar Setup
The included ProteusX 20A charge controller supports expansion with additional panels (within rated capacity), allowing your system to grow as your energy needs increase.
Specification
| Component | Specification |
|---|---|
| Solar Panel Type | Monocrystalline |
| Rated Power (Pmax) | 100W |
| Operating Voltage | 18V |
| Operating Current | 5.56A |
| Open Circuit Voltage | 22.5V |
| Short Circuit Current | 5.81A |
| Charge Controller | Proteus 20A PWM |
| Controller Voltage | 12V/24V Auto Recognition |
| Supported Battery Types | Sealed, Gel, Flooded, Lithium |
| Display | LCD Screen |
| Panel Dimensions | Approx. 39.6 x 26.4 x 1.4 in (1005 x 670 x 35 mm) |
| Weight | Approx. 17.5 lbs (8 kg) |
