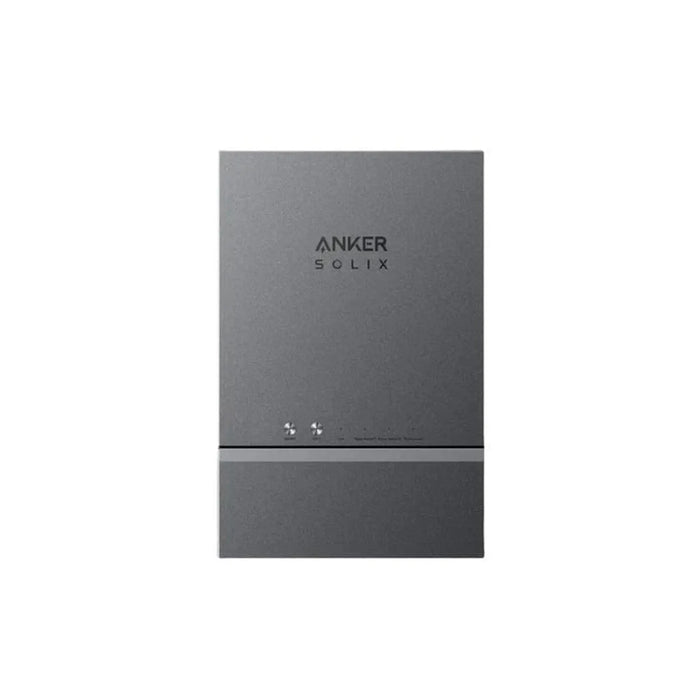

Anker SOLIX Smart Home Power
This kit integrates the Anker SOLIX F3800 Portable Power Station with your home's electrical system, combining grid and rooftop solar power for optimal efficiency and reliable backup. It includes the Home Power Panel, which allows for energy management through modes like Self Consumption and Time-of-Use, aiming to reduce electricity costs and enhance energy independence.
KEY FEATURES
- Seamlessly integrates Anker SOLIX F3800, utility grid, and roof solar power.
- Provides backup power for essential home appliances during outages.
- Easily control and monitor energy usage with the Anker app.
- Avoid peak rate charges and optimize energy consumption.
- Significantly promotes sustainability and self-sufficiency.
Harness Solar Power for Daily Use
Add Anker SOLIX Home Power Panel and watch Anker SOLIX F3800 integrate your home power system, uniting the grid and rooftop solar panels. With the Anker app, you can manage energy and savings with modes like Self Consumption and Time-of-Use. Gain full control of solar power, optimizing battery cycles and reducing electric bills.
Automatic Switchover During Outages
Enjoy seamless transition to backup power with Anker SOLIX F3800 and keep life powered on. It's built to power multiple appliances simultaneously with up to 12,000W output and scalable storage up to 53.8kWh. The battery even automatically charges if severe weather is forecasted.
What's Included
- Anker SOLIX Home Power Panel
- Backplate Bracket (×2)
- Wall Bracket (×2)
- F3800 to Home Power Panel Cable (1.5m) (×1)
- 200A Current Transformer (Model: XH-SCT-S24) (×2)
- 100A Current Transformer (Model: CTSA016-100A/100mA) (×1)
- M6*60 Expansion Bolt (Secures Wall Bracket to Concrete Wall) (×4)
- M6*50 Hexagonal Self-Tapping Screw (Secures Wall Bracket to Wooden Wall) (×4)
- M4*10 Cross Recessed Countersink Screw (×10)
- Positioning Card
- Installation Guide
Specification
| SKU | A17B1111 |
|---|---|
| Product Weight | 19 lbs |
| Product Dimensions | 19.7 in ×13 in × 5.7 in |
| Installation | Wall |
| Warranty | 5 Years |
| Rated System Voltage | 120 / 240V AC |
| Grid Wiring Area (Input) | 18kW Max, 75A Max, 60Hz, L1+L2+N+PE |
| Grid Wiring Area (Output) |
6kW Max (Continuous), 25A Max (Continuous), 60Hz, L1+L2+N+PE |
| Overvoltage Protection of Grid Wiring Area | |
| Phase Voltage | |
| Overvoltage Point | 135 ± 3V |
| Duration | 200 ms |
| Recovery Point | 132 ± 3V |
| Recovery Time | 30 s |
| Line Voltage | |
| Overvoltage Point | 270 ± 3V |
| Duration | 200 ms |
| Recovery Point | 265 ± 3V |
| Recovery Time | 30 s |
| Undervoltage Protection of Grid Wiring Area | |
| Phase Voltage | |
| Undervoltage Point | 166 ± 3V |
| Duration | 200 ms |
| Recovery Point | 172 ± 3V |
| Recovery Time | 30 s |
| Line Voltage | |
| Undervoltage Point | 83 ± 3V |
| Duration | 200 ms |
| Recovery Point | 86 ± 3V |
| Recovery Time | 30 s |
| Backup Wiring Area (Output) |
12kW Max (Continuous), 50A Max (Continuous), 60Hz, L1+L2+N+PE |
| Power Station 1 Ports (Input) | 6kW Max, 25A Max, 60Hz, L1+L2+N+PE |
| Power Station 1 Ports (Output) |
3.8kW Max (Continuous), 15.8A Max (Continuous), 60Hz, L1+L2+N+PE |
| Power Station 2 Ports (Input) | 6kW Max, 25A Max, 60Hz, L1+L2+N+PE |
| Power Station 2 Ports (Output) |
3.8kW Max (Continuous), 15.8A Max (Continuous), 60Hz, L1+L2+N+PE |
| Power Stations 1 and 2 Ports (Total Output) |
6kW Max (Continuous), 25A Max (Continuous), 60Hz, L1+L2+N+PE |
| Power Stations 1 and 2 Ports (Total Input) |
12kW Max (Continuous), 50A Max (Continuous), 60Hz, L1+L2+N+PE |
| Output Power Factor Rating |
One Anker SOLIX F3800, (30% Load) 1.9 W Load, PF > 0.96 Two Anker SOLIX F3800s, (60% Load) 3.8kW Load, PF > 0.98 Two Anker SOLIX F3800s, (100% Load) 6kW Load, PF > 0.985 |
| Nominal Output Voltage (AC) | 120/240V |
| Normal Output Frequency | 60Hz |
| Normal Temperature Range Operation | -4°F - 104°F / -20°C - 40°C |
