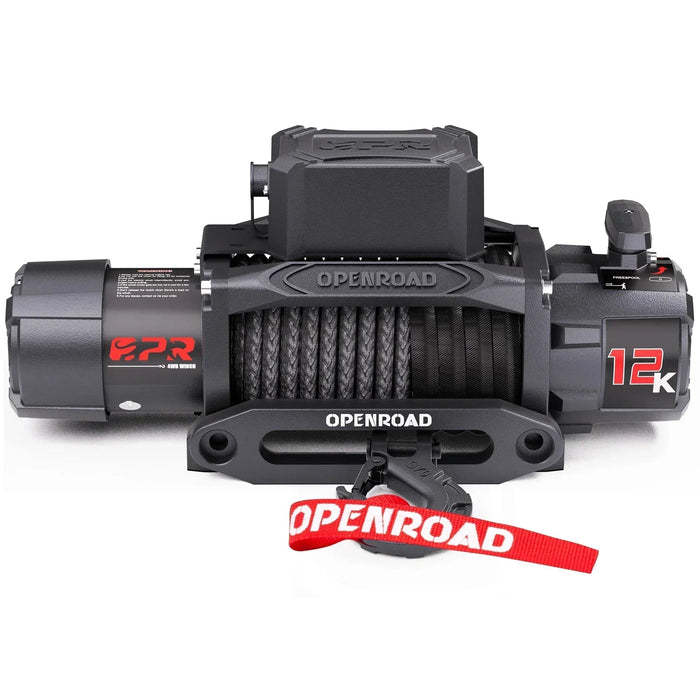

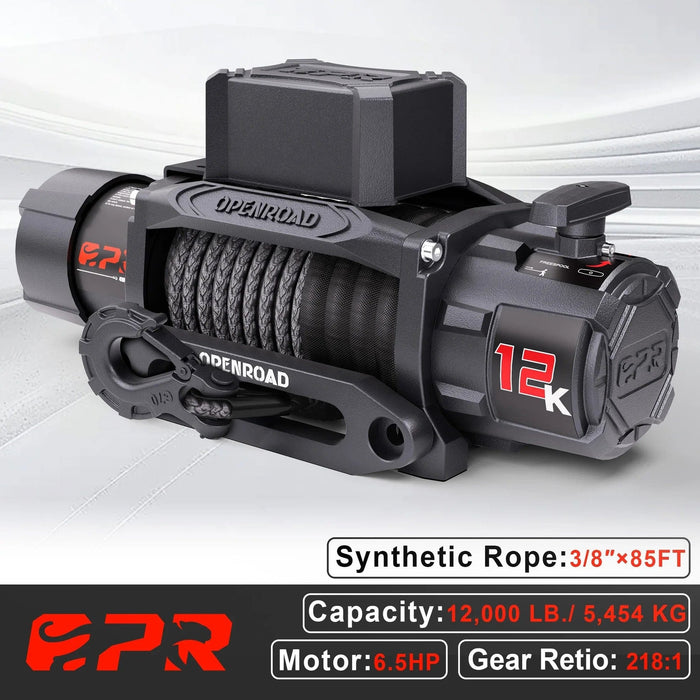

OPENROAD | 12,000lbs Electric Winch with Synthetic Rope-Panther Series 3S
OPENROAD | 12,000 lb Electric Winch with Synthetic Rope, Panther Series 3S
The OPENROAD Panther Series 3S 12,000 lb Electric Winch is designed to support vehicle recovery for trucks, SUVs, Jeeps, and other compatible off-road vehicles. Featuring a synthetic rope and an electric motor, it provides reliable pulling capability for recovery, trail, and utility applications. Built for compatibility with standard winch mounting systems, this winch is intended for demanding outdoor environments and off-road use.
KEY FEATURES
- Rated for up to 12,000 lb pulling capacity for compatible vehicle recovery applications.
- Includes a synthetic rope designed for strength and recovery performance.
- Electric motor provides powered winching for recovery and pulling tasks.
- Suitable for trucks, SUVs, Jeeps, and other compatible off-road vehicles.
- Designed for installation on compatible vehicle winch mounting systems.
- Durable construction is intended for off-road, overlanding, and utility applications.
- Supports vehicle recovery, trail use, worksite tasks, and recreational off-road activities.
- Part of the OPENROAD Panther Series 3S product line.
Specifications
| Specification | 13,500 lb Winch (6,136 kg) | 12,000 lb Winch (5,454 kg) | 10,000 lb Winch (4,535 kg) |
|---|---|---|---|

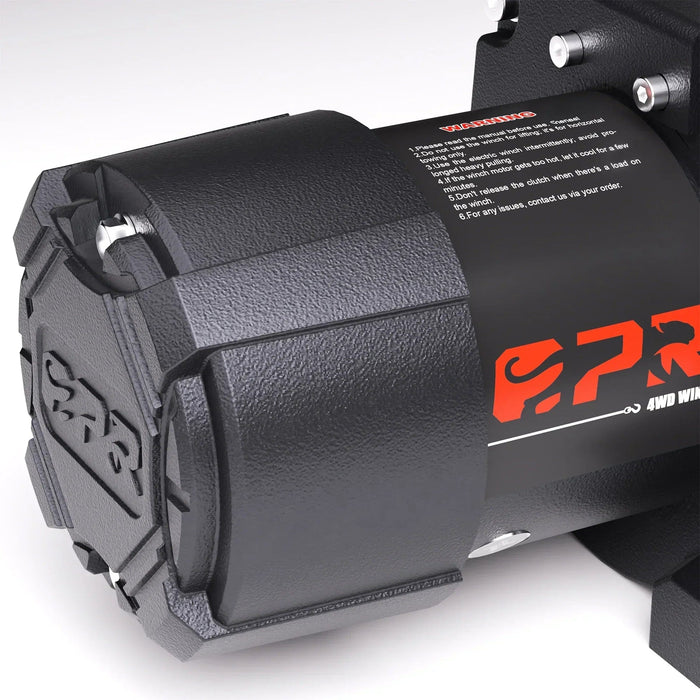

| Motor | 6.6 hp / 5.0 kw, Series Wound | 6.5 hp / 4.8 kw, Series Wound | 6.2 hp / 4.6 kw, Series Wound |
| Gear Train | 3 Stage Planetary | 3 Stage Planetary | 3 Stage Planetary |
| Gear Reduction Ratio | 218:1 | 218:1 | 218:1 |
| Brake | Automatic Load-Holding | Automatic Load-Holding | Automatic Load-Holding |
| Control | 2 × Wireless Remote + 1 × Wire Remote | 2 × Wireless Remote + 1 × Wire Remote | 2 × Wireless Remote + 1 × Wire Remote |
| Battery | Recommended: 650 CCA | Recommended: 650 CCA | Recommended: 650 CCA |
| Battery Cables | 72" | 72" | 72" |
| Fairlead | 4-Way Roller Fairlead | 4-Way Roller Fairlead | 4-Way Roller Fairlead |
| Cable Type | Synthetic Rope | Synthetic Rope | Synthetic Rope |
| Mounting Bolt Pattern | 10" × 4.5" | 10" × 4.5" | 10" × 4.5" |
| Cable Size (D × L) | 88 ft of 3/8" diameter | 88 ft of 3/8" diameter | 88 ft of 3/8" diameter |
| Overall Dimensions (L × W × H) | 20.8" × 6.3" × 9.5" | 20.8" × 6.3" × 9.5" | 20.8" × 6.3" × 9.5" |
| Weight | 65 lbs | 65 lbs | 65 lbs |
| Waterproof Rating | IP68 | IP68 | IP68 |
| Line Speed (Max Line Pull) | 5.2 ft/min | 5.7 ft/min | 7.4 ft/min |
| Amp Draw (Max Line Pull) | 320 (@12VDC) | 301 (@12VDC) | 262 (@12VDC) |
| Application | Truck / Jeep / SUV | Truck / Jeep / SUV | Truck / Jeep / SUV |
Dimensions
Manual & Downloads
