SunGoldPower | 2000W DC 12V Pure Sine Wave Inverter With Charger
Overview
-

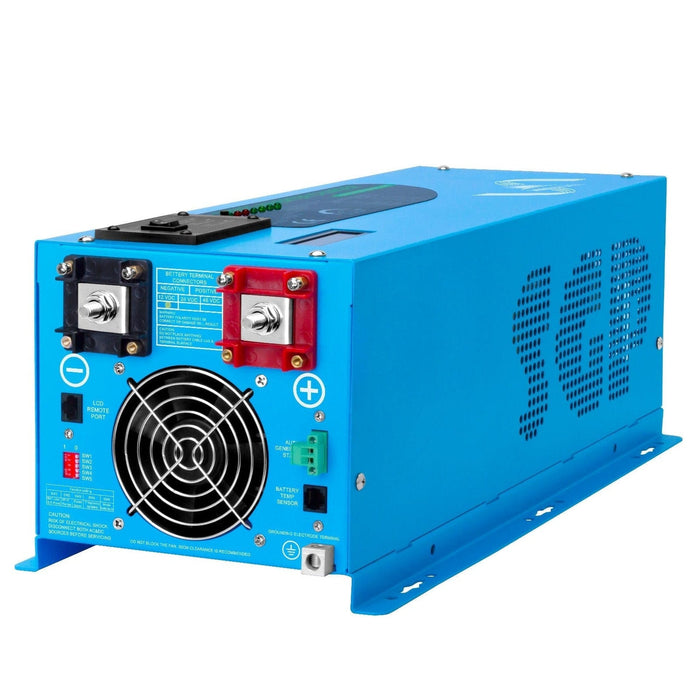

LFP Series 2000 Watt Pure Sine Wave Inverter: This unit combines an inverter, battery charger, and AC auto-transfer switch. It features low frequency, low idle current, a BTS cable, and a remote control.
-
Power Specifications: This 2000-watt inverter charger requires a 120VAC input and delivers 120VAC output for various appliances. It can output at either 50 or 60Hz, adjustable via the SW4 switch.
-
AC/Battery Priority: The inverter is set to prioritize AC power by default, but you can switch to battery priority using the SW5 switch.
-
Adjustable Charging Current: The maximum charging current can be adjusted from 0% to 100% using a linear switch.
-
Automatic Generator Start: The inverter can automatically start a generator when battery voltage is low and will turn off the generator once the battery is fully charged.
Key Features:
- 2000W LFP Low-Frequency Pure Sine Inverter with Charger.
- AC/Battery Priority Selector for seamless power management.
- Automatic Generator Start feature for added convenience.
- Equipped with GFCI Socket for safety and convenience.
- Compatible with all kinds of appliances.
- Includes LCD Display, Remote Control, and BTS for easy monitoring and control.
- Low Idle Consumption for energy efficiency.
- Offers 7 battery type settings for the charger's versatility.
- Multi-Stage Smart Charger with 70+/-5A capacity; charger can be disabled as needed.
- 10 msec typical transfer time ensures swift transition.
What's Included:
- 2000W 12V Low-Frequency Pure Sine Inverter
- English Manual
- Remote Control
- BTS Cable
- Unit Weight: 53LB
- Unit Size: 17.4 x 9.5 x 7.8 inch
- Shipping Weight: 57LB
- Shipping Size: 23 x 12.6 x 12.0 inch
Specifications
Inverter Output:
- Continuous Output Power: 2000W
- Surge Rating: 6000W (20 Seconds)
- Output: 120VAC, 60hz
- Output Wave: Pure Sine Wave (bypass mode)
- Typical Transfer Time: 10ms (MAX)
- Nominal Efficiency: >88%
DC Input:
- Nominal Input Voltage: 12.0Vdc
- Minimum Start Voltage: 10.0Vdc
- Low Battery Alarm: 10.5Vdc-11.0Vdc
- Low battery Trip: 10.0Vdc-10.5Vdc (select by SW1)
- High Voltage Alarm: 16.0Vdc
- Low battery Voltage Restart: 13Vdc
- Idle Consumption: 25W
- Power Saver Mode Idle Consumption: 12W
AC Charger:
- Charger Rate: 70+/-5A
- AC input Range (Grid or Generator): 90V-135VAC/100V-135VAC (select by SW2);
- Over Charge Protection Shutdown:15.7V
- Selectable Charge Setting: off 0%-100%
- 3-step intelligent battery charger
Manuals and Downloads
Download LFP Series Pure Sine Wave Inverter/Charger User's Manual
Warranty
2 Year Warranty
