Rich Solar | 24V - 300AH - 7.6kWh Lithium Battery Bank
Overview
The ALPHA 4 LITE is a 24V 100 Ah lithium battery built and packed with RICH SOLAR’s premium LiFePO4 cells. Built to withstand extreme temperatures and handle deep discharges, this lithium battery is ready to be your go to battery for any off-grid needs.
Whether you’re looking to set up backup power for your family home or boondocking off-grid, you can be sure you have power available to you. With it’s low maintenance, lightweight build, and powerful discharge cycles, the ALPHA 4 LITE is the battery for you.
* Not intended to replace starting batteries.
FEATURES
- Extremely high number of charge/discharge cycles
- > 10 Year lifespan with proper maintenance
- Built-in smart battery management system
- Wide operating temperature range
- Unsurpassed high temperature performance
- Green energy without metal contaminant
- Low maintenance
- High amp capacity
- Stable output voltage
- Little self-discharge
- Lifetime customer support
- Over charging or discharging protection.
- Over current & short circuit protection.
- High & low temperature disconnects
- Charge Voltage: 28.8V
- Max Charge Current: 100A
- Max Discharge Current: 100A
- Battery Dimensions(L*W*H): 20.9x8.1x8.5 in
- Weight: 52.9 lb
BMS Safety Protection
Every LiFePO4 cell is individually fused with safety and efficiency in mind. If any cells fail, the isolated fuse will prevent any damage to the other cells and allow the battery to function normally.
Other BMS Features include:
- Convenient removable carry handle
- Lightweight
- Short circuit protection
- Over-charge/discharge protection
- Excessive heat protection

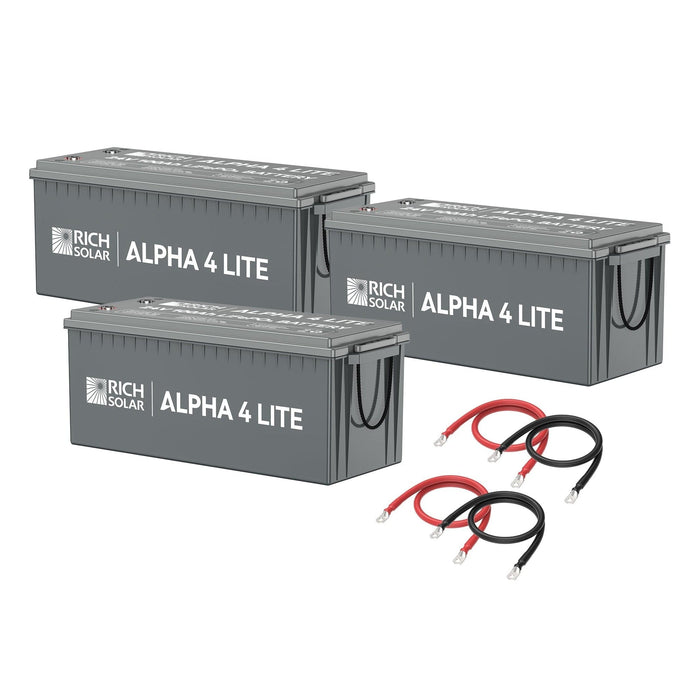

This 300AH 24V 7.6kWh Lithium Battery Bank comes with:
- 3 x 24V 100AH ALPHA 4 LITE LiFePO4 Battery
- 4 x 1ft 2 AWG Battery Cable
Specifications
BATTERY
Nominal Voltage: 25.6V
Nominal Capacity: 100Ah
Minimum Capacity: 99.5Ah
Cycle Life: >4000 cycles
Operating Specifications
Capacity: 100 Ah
Energy: 2560 Watt Hours
Charge Voltage: 28.8V
Continuous Discharge Current: 100A
Self Discharge: < 5%/month
Temperature Performance
Charge Temperature: 32℉ to 131℉ (0℃ to 55℃)
Discharge Temperature: -4℉ to 140℉ (-20℃ to 60℃)
Storage Temperature: 14°F-113°F / -10℃~45℃ 90％RH Max (More than 3 months)
Physical Specifications
Battery Dimensions(L*W*H): 20.9x8.1x8.5 in
Weight: 52.9 lb
BMS Operation
Over Charge Protection
- Over charge detection voltage: 3.75V±0.05V
- Over charge detection delay time: 1000ms±500ms
- Over charge recovery voltage: 33.55V±0.05V
Over Discharge Protection
- Over discharge detection voltage: 2.20V±0.08V
- Over discharge detection delay time: 1000ms±500ms
- Over discharge recovery voltage: 2.70V±0.10V
Short Circuit Protection: Yes
Warranty: 5 years warranty
