SunGoldPower | 3000W 24V Solar Inverter Charger
Overview

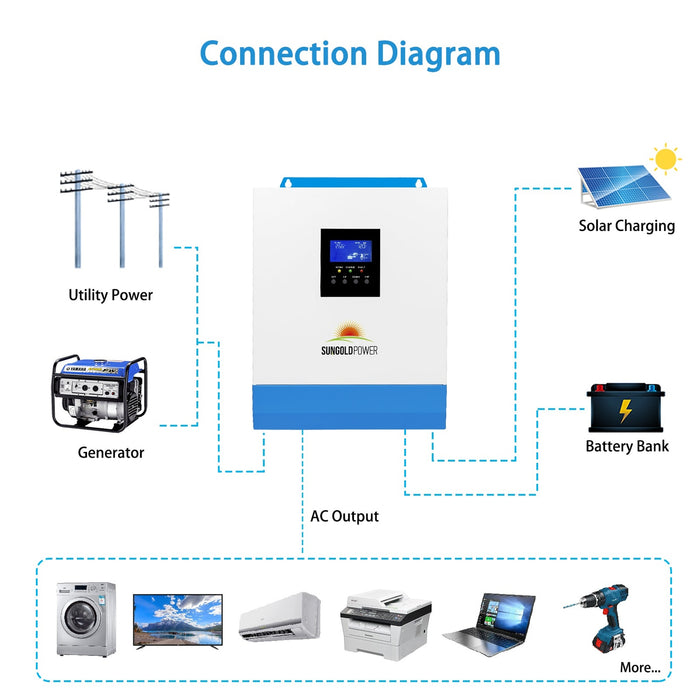

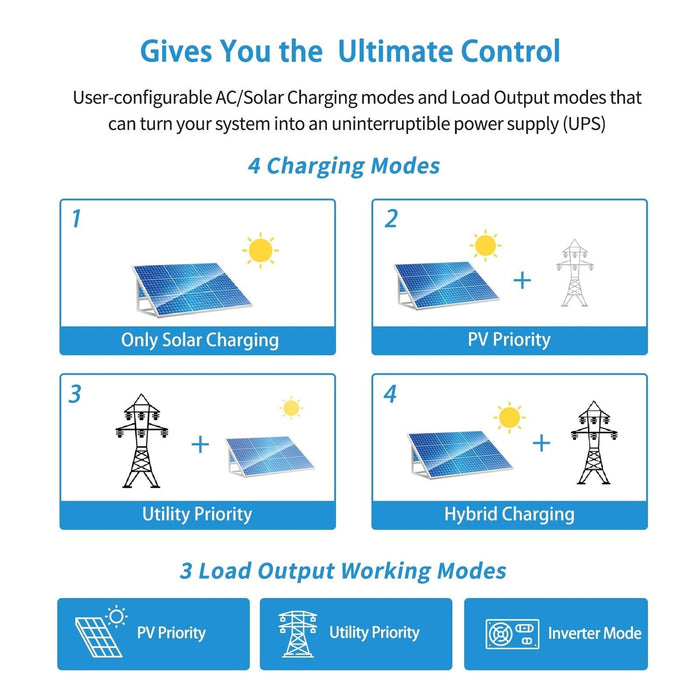

The SUNGOLDPOWER 3000W 24V solar inverter integrates solar charging, AC/generator battery charging, and battery inverter functionality into a single unit, ideal for off-grid systems. Compatible with 24V battery packs, it offers four user-configurable AC/solar charging modes and three load output modes. Additionally, it can transform your system into an uninterruptible power supply (UPS), automatically switching to off-grid in just 10 milliseconds to ensure continuous power to your load.
0
Specifications
Main Features:

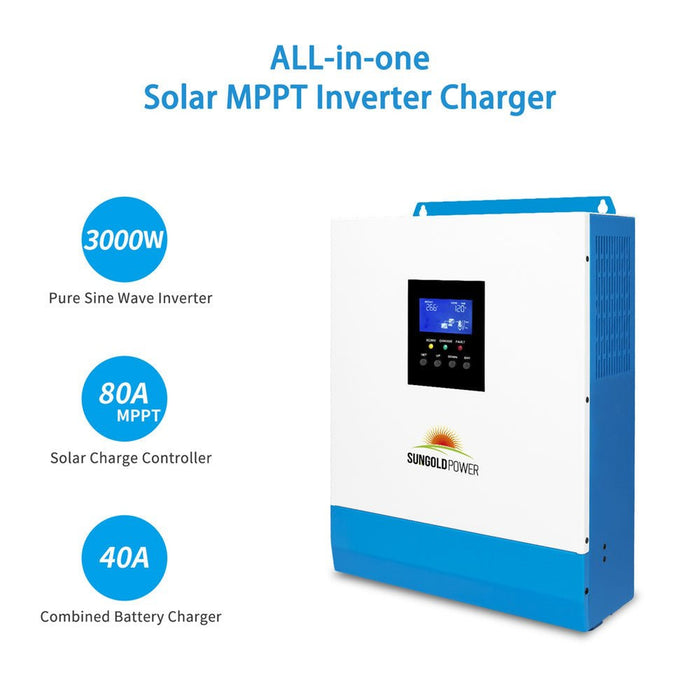

● Built-in 80A MPPT solar charge controller, max PV input 4000W
● 40A Smart AC charger
● High frequency transformer-less compact design
● Pure sine wave AC 120V output with 50hz/60hz switch
● Optional WiFi/ GPRS remote monitoring (extral cost)
● Overload, short circuit, over discharge protection
● Auto-start the generator ( Dry Contacts for delivering signal)
Inverter Mode:
● Output: Pure Sine Wave
● Peak Power : 6000VA
● AC Output : 120VAC ,50HZ/60HZ
● Input Voltage / Rated Battery : 24VDC (minimum start-up voltage:22V)
● Bypass Breaker Current: 40A
● Idle Power: 50W
● Power Saver Mode Idle Consumption: 25W
MPPT Solar Charging Mode:（Had upgraded on May 8th,2023）
● Maximum Input Power: 4000W
● PV Charging Current : 0-80A
● Max.PV Open Circuit Voltage: 450V
● PV operation voltage range: 120-450VDC
● Mppt Voltage Range: 120-400VDC
● Recommended wire: 12 AWG
AC Charging Mode:
● Rated AC input: 110V, 50HZ/60HZ
● Input Voltage Range: 90VAC-140VAC
● Conversion Time: 10ms

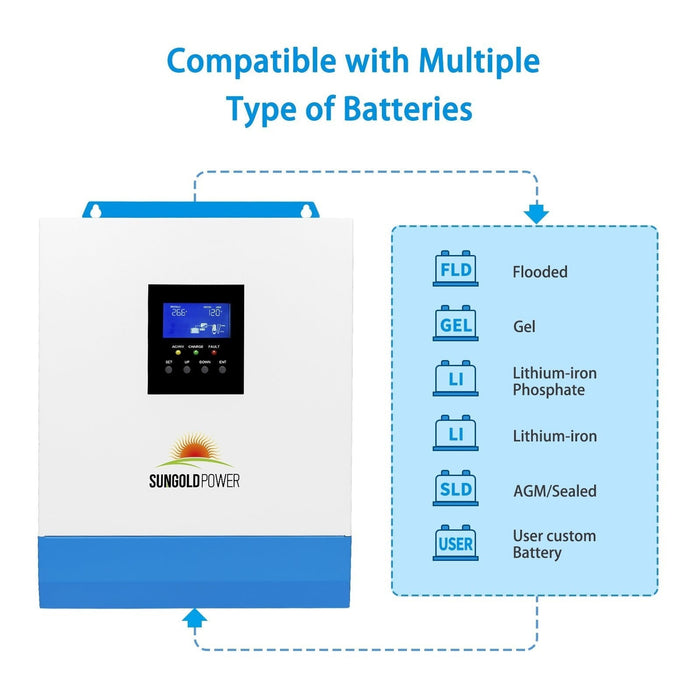

● Battery Type: Lead Acid and Lithium Battery
● Maximum Charging Current: 40A
● Charging Voltage Range:20-33VDC
● Short-Circuit Protection: Breakers and fuses
● Overcharge Protection: Yes. Automatically alerts and turns off charging after 1 min
Mechanical Specification:

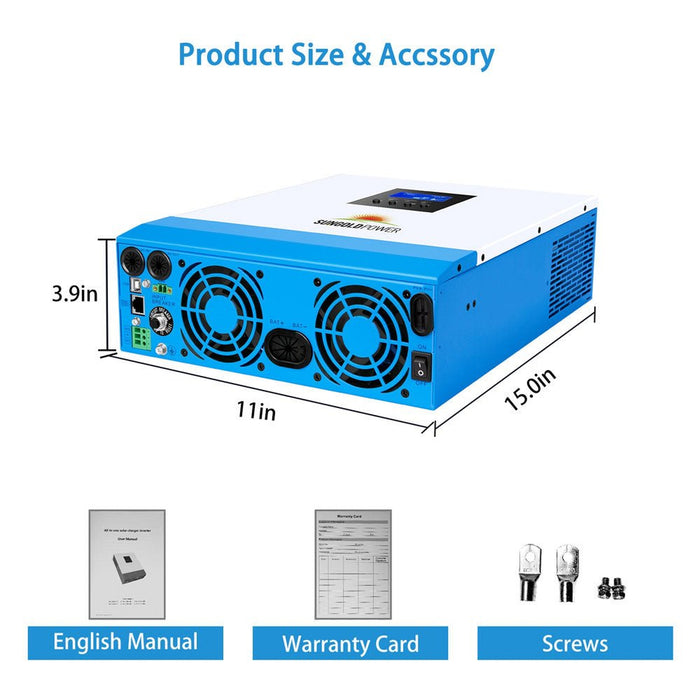

● Size: 15.0 x 11.0 x 4.0 inch
● Net Weight: 16.8lbs
● Noise: ≤60dB
● Operating Temperature Range:5°F ~ 131°F/ -15°C ~ 55°C
● Cooling Fan: Yes
