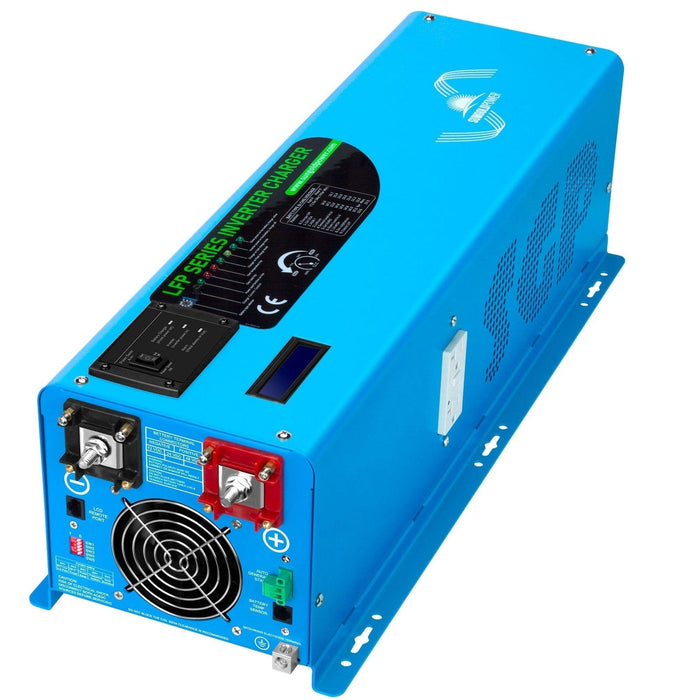

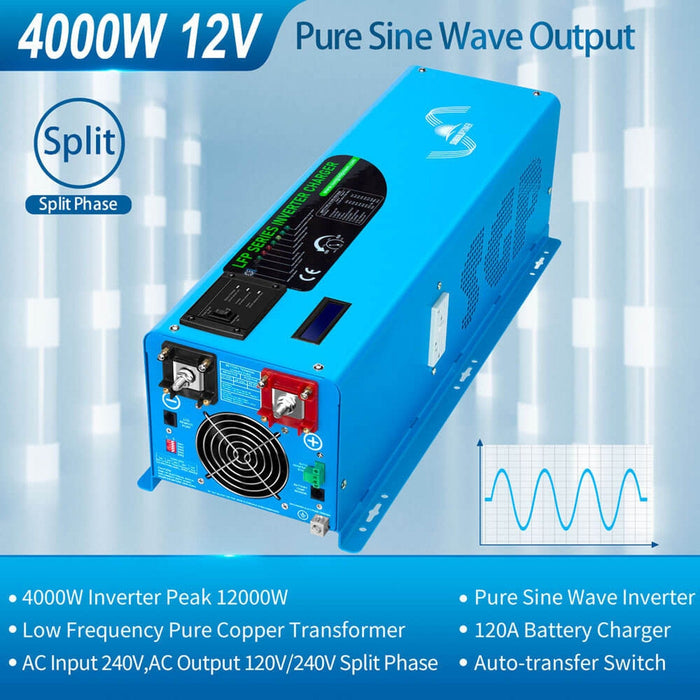

SunGoldPower | 4000W DC 12V Split Phase Pure Sine Wave Inverter With Charger
Overview
-
The LFP Series Pure Sine Wave Inverter integrates an inverter, battery charger, and AC auto-transfer switch, boasting low frequency, minimal Idle Current, BTS cable, and remote control functionality.
- Operating with a split-phase configuration, this 4000-watt power inverter necessitates a 240VAC input, delivering 120VAC or 240VAC output power suitable for various appliances. It offers the flexibility of outputting at 50 or 60Hz via the SW4 switch.
- With AC priority set as default, users can opt for battery priority by utilizing the SW5 switch. Moreover, the inverter enables adjustable charging current, ranging from 0% to 100% through a linear switch.
- Equipped with an Auto Gen Start feature, the inverter can initiate generator startup upon detecting low battery voltage, ensuring seamless battery charging before automatically shutting off the generator.
Key Features:
- 4000W Low-Frequency Pure Sine Inverter With Charger.
- AC/Battery Priority Selector.
- Automatic Generator Start.
- Safety and Convenience.
- Powers all kinds of appliances with its low-frequency design.
- Includes LCD Display and Remote Control.
- Low Idle Consumption.
- Supports 7 battery types for charging.
- Multi-Stage Smart Charger 120+/-5A, with the option to disable the charger.
- Typical transfer time of 10 milliseconds.

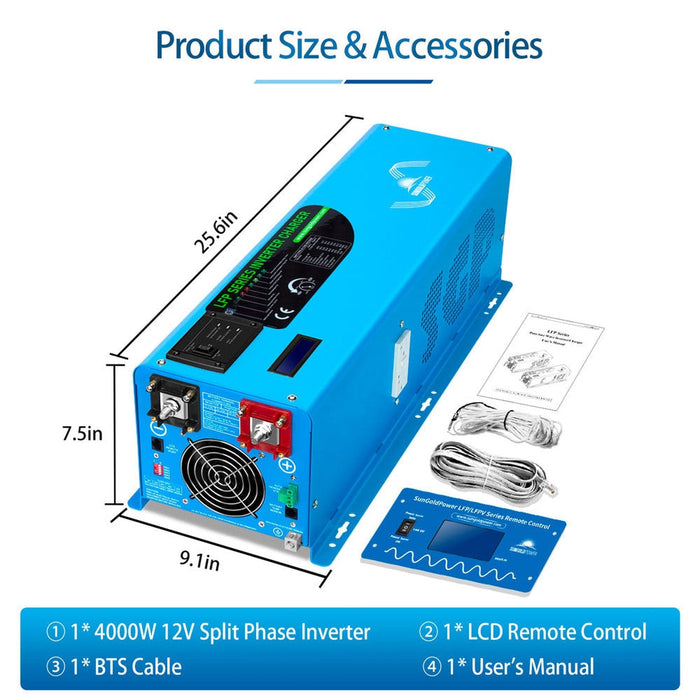

Package Description:
- 4000W 12V Low-Frequency Pure Sine Inverter
- English Manual
- Remote Control
- BTS Cable
- Unit Weight: 53LB
- Unit Size: 17.4 x 9.5 x 7.8 inch
- Shipping Weight: 57LB
- Shipping Size: 26 x 12.6 x 12.0 inch

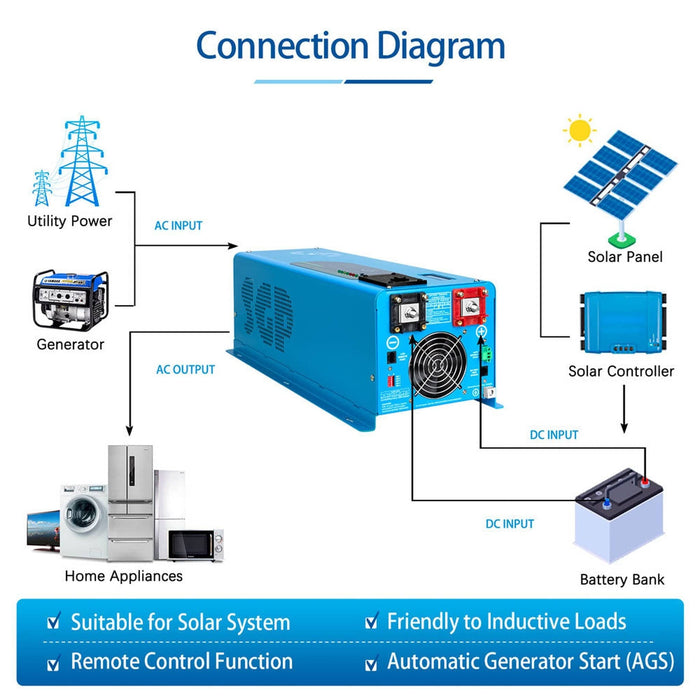

The SunGoldPower LFP 4000 Watt DC 12V AC 120/240 Split Phase Inverter Charger stands out as a high-quality, low-frequency power inverter designed to power your entire small home, business, RV system, trailer, or boat application. It serves as an ideal solution for off-grid systems or emergency backup power supply needs.
This split-phase inverter operates with a 240VAC input and offers flexible output options of 110/120V or 220/230/240VAC, with the capability to output 50 or 60Hz via the SW4 switch. With the ability to produce two legs of 110V, it caters perfectly to home and business applications equipped with a 220 panel.
Specifications
Inverter Output:
- Continuous Output Power: 4000W
- Surge Rating: 12000W (20 Seconds)
- Output: AC120V and AC 240V , 60hz
- AC Input:240V
- Output Wave: Pure Sine Wave (bypass mode)
- Typical Transfer Time: 10ms (MAX)
- Nominal Efficiency: >88%
DC Input:
- Nominal Input Voltage: 12.0Vdc
- Minimum Start Voltage: 10.0Vdc
- Low Battery Alarm: 10.5Vdc-11.0Vdc
- Low battery Trip: 10.0Vdc-10.5Vdc (select by SW1)
- High Voltage Alarm: 16.0Vdc
- Low battery Voltage Restart: 13Vdc
- Idle Consumption: 45W
- Power Saver Mode Idle Consumption: 18W
AC Charger :
- Charger Rate: 120+/-5A
- AC input Range (Grid or Generator) : 90V-135VAC/100V-135VAC (select by SW2), 140V-270VAC/184V-253VAC (select by SW2)
- Over Charge Protection Shutdown:15.7V
- Selectable Charge Setting based on battery type
- Adjustable charge current: off 0%-100%
- 3-step intelligent battery charger
User Manual
Download LFP Series Pure Sine Wave Inverter/Charger User's Manual
FAQ
What is the idle wattage?
The idle power is 18W in saver-on mode and 45W in saver-off mode.
Can this work with Enphase microinverters on the same grid?
Unfortunately, it cannot operate with other inverters on the same grid and is not stackable.
Will the charger work on 120 volts, or does it require 24 volts?
The AC input is 240V, while the AC output is available at 120V and 240V, with a DC voltage of 12V.
Does this unit come with a warranty?
Yes, it includes a 12-month warranty, with a 30-day replacement and refund policy.
Warranty
2 Year Warranty
