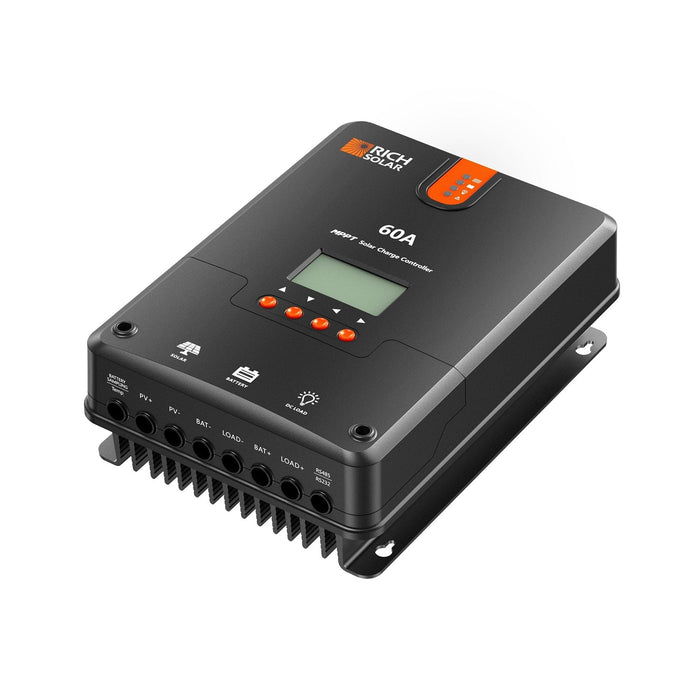

Rich Solar | 60 Amp MPPT Solar Charge Controller
60 Amp MPPT Solar Charge Controller – High-Efficiency Power Regulation
The Rich Solar Charge Controller is designed to optimize your solar energy system’s performance, ensuring maximum power conversion efficiency and extended battery life. Built with advanced MPPT (Maximum Power Point Tracking) technology, the Rich Solar Charge Controller delivers high tracking efficiency, intelligent real-time monitoring, and reliable protection—making it the ideal choice for off-grid systems, RV setups, and solar battery installations. Whether you’re managing a small residential system or a large off-grid configuration, the Rich Solar Charge Controller provides consistent, efficient, and safe energy regulation to help you get the most from your solar investment.
Key Features
-
Auto-Detection of System Voltage: Automatically identifies 12V, 24V, 36V, or 48V DC system voltages for seamless integration.
-
Wide Battery Compatibility: Works flawlessly with Sealed, Gel, Flooded, and Lithium deep cycle batteries.
-
Advanced MPPT Technology: Offers up to 99% tracking efficiency and a peak conversion rate of 98%, ensuring you get the most out of your 60 amp solar controller.
-
Comprehensive Electronic Protection: Safeguards your system from reverse polarity, overcharging, over-discharging, overload, short circuits, and reverse current.
-
User-Friendly Display: LCD screen and LED indicators provide real-time system status, customizable settings, and diagnostic error codes.
-
Smart Load Control: Manages diverse load types and can even recharge over-discharged lithium batteries.
-
Durable Heat Dissipation: Constructed with die-cast aluminum for superior thermal management and long-term reliability.
-
Bluetooth Connectivity (Optional): The RS232 port supports BT-1 Bluetooth modules for convenient remote monitoring and control.
Specification
Controller Info
- Rated Battery Current: 60A
- Rated Load Current: 20A
- Max Solar Input Voltage: 150V
- Max Solar Input Power: 800W/12V; 1600W/24V; 2400W/36V; 3200W/48VCharge Circuit Voltage Drop: = 0.26V
- Discharge Circuit Voltage Drop: = 0.15V
- Operating Temperature: -31 °F to 113 °F
- Max Terminal Size: 4AWG
- Overall Dimension: 11.2 x 8.1 x 4.0 in
- Net Weight: 7.9 lb
