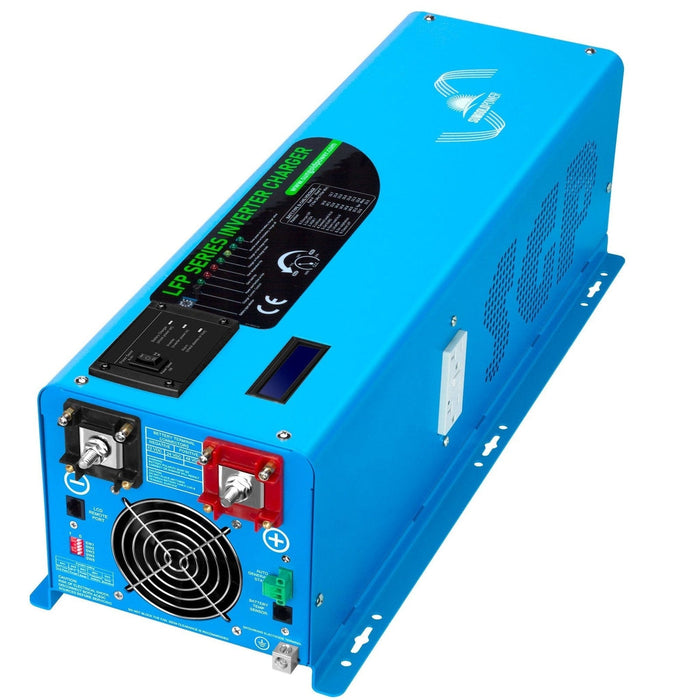

SunGoldPower | 6000W DC 24V Split Phase Pure Sine Wave Inverter With Charger

6000W DC 24V Split Phase Pure Sine Wave Inverter with Charger

This advanced LFP Series Pure Sine Wave Inverter combines a 6000-watt inverter, battery charger, and AC auto-transfer switch into a single, compact unit, providing a highly efficient and versatile solution for both residential and commercial power needs. It delivers reliable 120V/240V output, making it suitable for a wide range of appliances and systems.

Key Features

• Pure Sine Wave Output:

  • Provides high-quality pure sine wave AC power, ideal for sensitive electronics and appliances that require clean, stable electricity.

• Split-Phase Operation:

  • The inverter is designed to handle split-phase power (120VAC/240VAC), making it suitable for a variety of household and office appliances.

  • Can operate at either 50Hz or 60Hz depending on your location or needs, adjustable via the SW4 setting.

• Battery Charger:

  • Built-in battery charger with adjustable charging current. The charging current can be set from 0% to 100% via a linear switch for flexibility.

• AC/Battery Priority:

  • By default, the inverter operates on AC priority, but you can easily switch to battery priority using the SW5 option for different energy management needs.

• Auto Gen Start:

  • The inverter features an Auto Gen Start function, automatically activating a generator when battery voltage is low and shutting it off once the batteries are fully charged.

• Low Idle Current & Efficient Operation:

  • Designed for low idle current, minimizing energy consumption when the system is not in use.

• Remote Control:

  • Includes a remote control for convenient monitoring and operation, allowing for flexible control of the system.

• BTS Cable:

  • Comes with a Battery Temperature Sensor (BTS) cable to ensure the system operates within the optimal temperature range, improving safety and battery longevity.

Benefits

• • High-Quality Power: Provides stable, reliable power with pure sine wave output, ensuring safe operation of sensitive devices.

  • Versatile Use: Supports both 120V and 240V appliances, making it ideal for a wide range of applications.

  • Flexible Charging Options: Adjustable charging current and priority settings for customizable energy management.

  • Convenience: With features like Auto Gen Start and remote control, managing the system is easy and convenient.

  • Efficient Design: Low idle current and integrated functionality in one unit ensure reliable, energy-efficient operation.

The SunGoldPower LFP 6000 Watt DC 24V AC 120/240 Split Phase Inverter Charger is a top high quality low frequency power inverter, built for running your whole house (small home), Business, RV System, Trailer or Boat Application, this inverter charger is perfect for your off grid system or an emergency backup supply. The split-phase inverter requires 240VAC input and will output 110/120 or 220/230/240VAC, and it can output 50 or 60Hz via the SW4. It is capable of producing 2 legs of 110V, making this inverter perfect for home and business applications with a 220 panel in place.

Three in one product:
★ The 6000 watt power inverter transforms 24V DC power stored by batteries to AC electricity that can power the tools and appliances.
★ It has a built-in 90 amp battery charger which help the grid or generator to recharge the battery.
★ The transfer switch allows the product to automatically switch between shore power and battery power within 10 mili seconds.

Specifications

Main Features:
*6000W Low Frequency Pure Sine Inverter With Charger.
*AC/Battery Priority Selector.
*Automatic Generator Start.
*Safety and Convenient.
*The low frequency inverter can power all kinds of appliances.
*LCD Display, Remote Control.
*Low Idle Consumption.
*9 battery type settings for charger.
*Multi Stage Smart charger 90+/-5A, charger can be disable.
*10msec typical transfer time.

Inverter Output:
*Continuous Output Power: 6000W
*Surge Rating: 18000W (20 Seconds)
*AC Output: AC 120V and AC 240V
*AC Input: 240V
*Output Wave: Pure Sine Wave (bypass mode)
*Typical Transfer Time: 10ms (MAX)
*Nominal Efficiency: >88%

DC Input:
*Nominal Input Voltage: 24.0Vdc
*Minimum Start Voltage: 20.0Vdc
*Low Battery Alarm: 21.0Vdc-22.0Vdc
*Low battery Trip: 20.0Vdc-21.0Vdc (select by SW1)
*High Voltage Alarm: 32.0Vdc
*Low battery Voltage Restart: 26Vdc
*Idle Consumption: 77W
*Power Saver Mode Idle Consumption: 29W

AC Charger :
*Charger Rate: 90+/-5A
*AC input Range (Grid or Generator): 140V-270VAC/184V-253VAC (select by SW2)
*Over Charge Protection Shutdown: 31.4V
*Selectable Charge Setting based on battery type
*Adjustable charge current: off 0%-100%
*3-step intelligent battery charger
