SunGoldPower | 6000W DC 48V Split Phase Pure Sine Wave Inverter With Charger UL1741 Standard
Overview
-

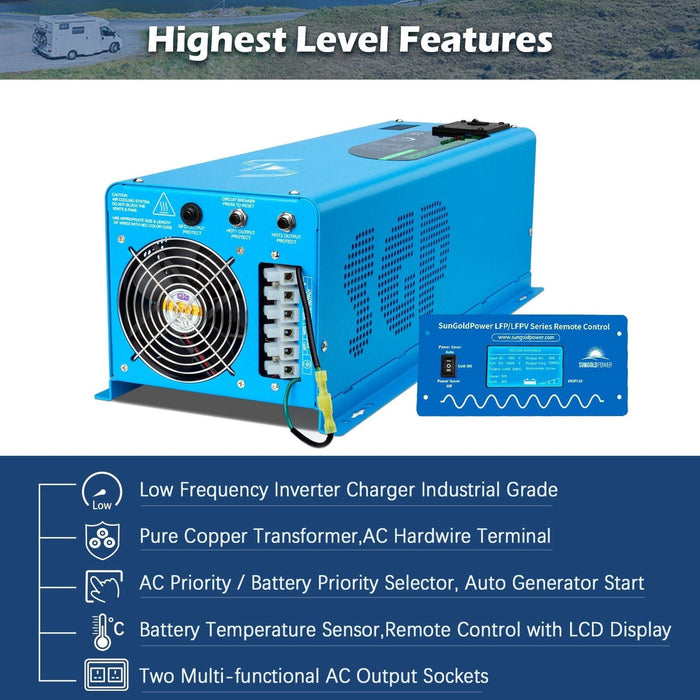

The LFP Series 6000 watt Pure Sine Wave Inverter combines an inverter, battery charger, and AC auto-transfer switch. It features low frequency, low idle current, BTS cable, and remote control, meeting UL1741 standards.
-
This split-phase inverter requires a 240VAC input and can deliver 120VAC or 240VAC output, suitable for a variety of appliances, with selectable 50 or 60Hz via the SW4 switch.
-
Defaulted to AC priority, the 48-volt split-phase inverter allows for battery priority selection using the SW5 switch.
-
The maximum charge current can be adjusted from 0%-100% with a linear switch.
-
The inverter is equipped with an Auto Gen Start feature, enabling it to activate a generator when battery voltage is low and automatically shut off once charging is complete.

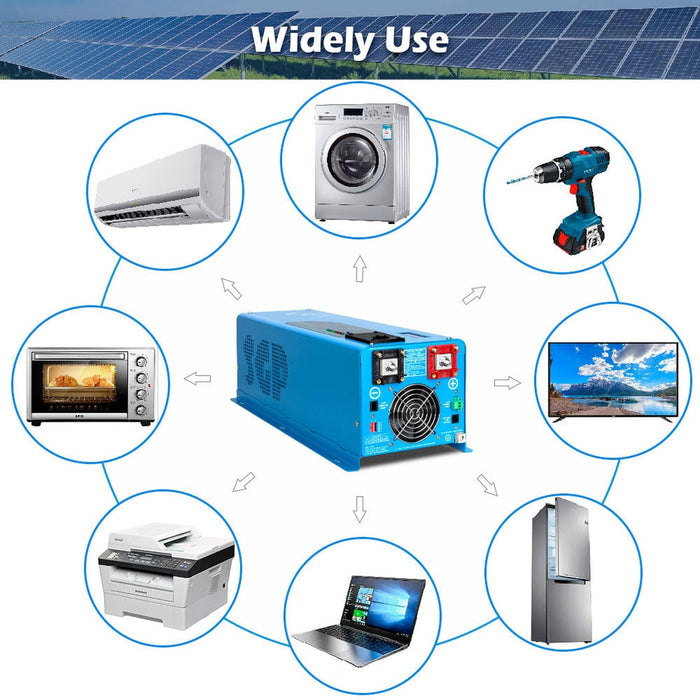

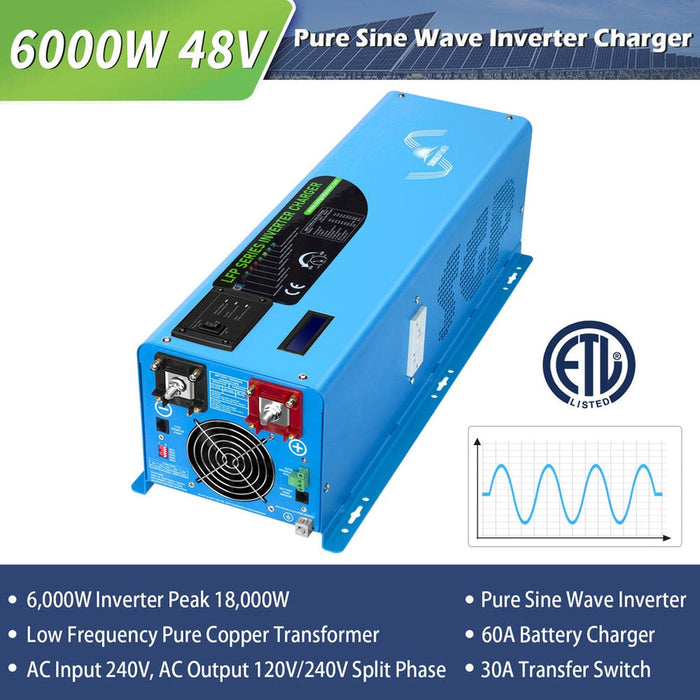

The SunGoldPower LFP 6000 Watt DC 48V AC 120/240 Split Phase Inverter Charger is a premier low-frequency power inverter designed for residential, commercial, and mobile applications such as RVs, trailers, and boats. It serves as an ideal solution for off-grid setups or emergency backup power.

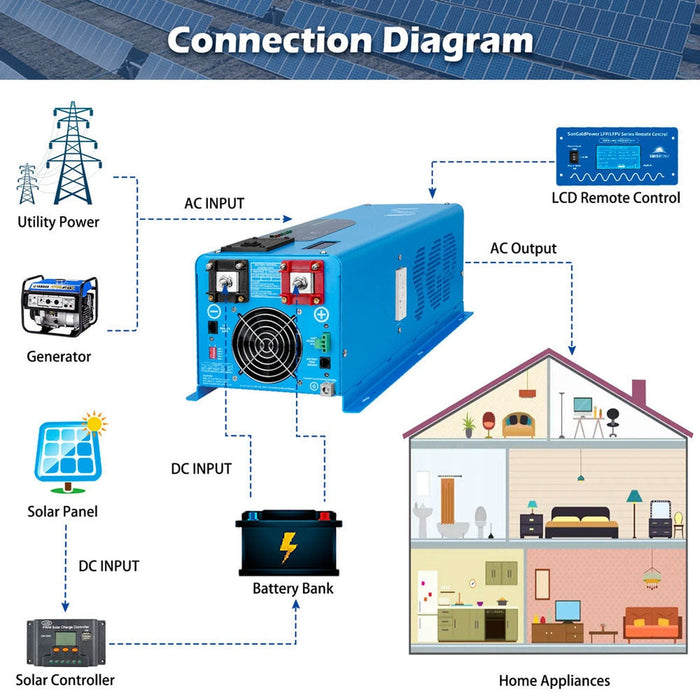

This split-phase inverter operates with 240VAC input and provides flexible 110/120V or 220/230/240VAC output, with options for 50Hz or 60Hz frequency via the SW4 switch. With the ability to generate two legs of 110V, it seamlessly integrates with both home and business electrical systems.
Comprising three essential functions in one unit:
- The inverter efficiently converts stored 48V DC battery power into AC electricity to power various appliances and tools.
- Equipped with a 60 amp battery charger, it facilitates battery recharging from the grid or generator.
- Featuring an 80 amp transfer switch, the inverter swiftly transitions between shore power and battery power within a mere 10 milliseconds.
Specifications
| MODEL | 6000W DC 48V Split Phase |
|---|---|
| Inverter Output: | |
| Continuous Output Power | 6000W |
| Surge Rating | 18000W (20 Seconds) |
| AC Output | AC 120V and AC 240V |
| AC Input | 240V |
| Output Wave | Pure Sine Wave (bypass mode) |
| Typical Transfer Time | 10ms (MAX) |
| Nominal Efficiency | >88% |
| DC Input: | |
| Nominal Input Voltage | 48.0Vdc |
| Minimum Start Voltage | 40.0Vdc |
| Low Battery Alarm | 42.0Vdc-44.0Vdc |
| Low battery Trip | 40.0Vdc-42.0Vdc (select by SW1) |
| High Voltage Alarm | 64.0Vdc |
| Low battery Voltage Restart | 52Vdc |
| *Idle Consumption | 81W |
| Power Saver Mode Idle Consumption | 30W |
| AC Charger : | |
| Charger Rate | 60+/-5A |
| AC input Range (Grid or Generator) | 140V-270VAC/184V-253VAC (select by SW2) |
| Over Charge Protection Shutdown | 62.8V |

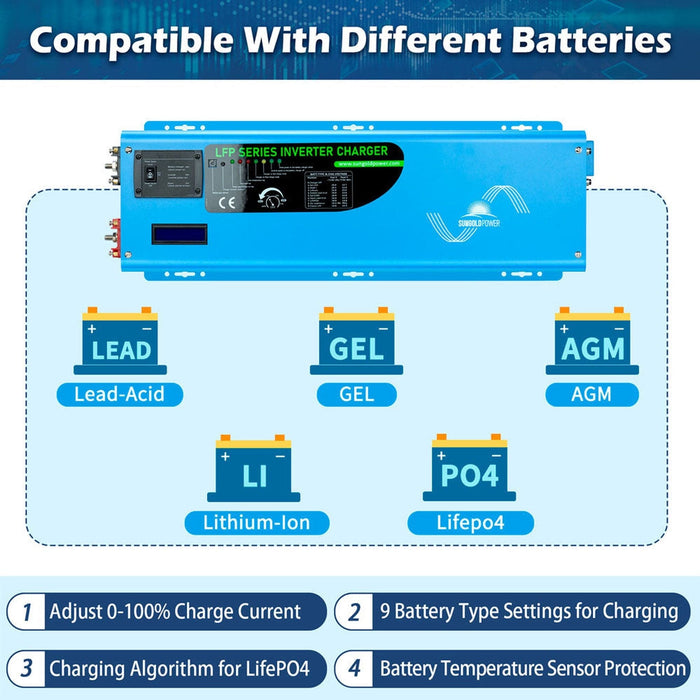

| Selectable Charge Setting based on battery type | |
| Adjustable charge current | off 0%-100% |
| 3-step intelligent battery charger | |

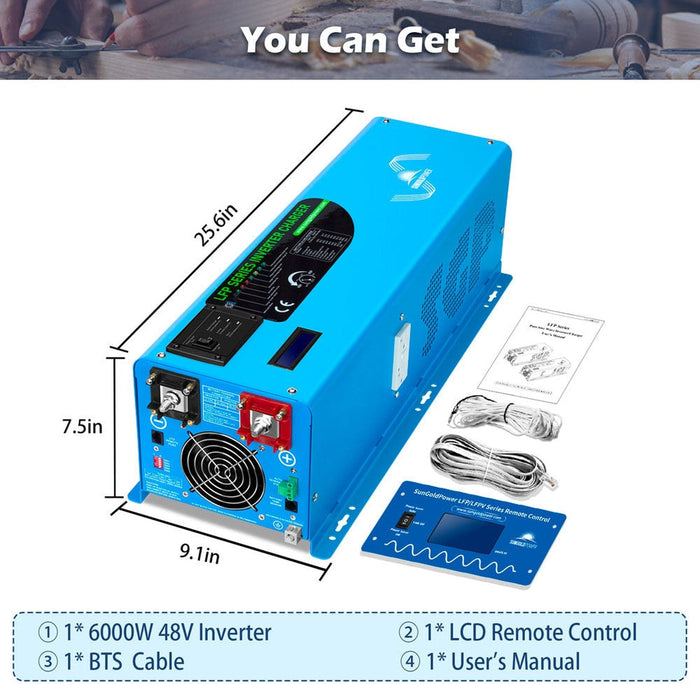

| Packaging: | |
| 6000W 48V Low Frequency Pure Sine Inverter | |
| English Manual | |
| Remote Control | |
| BTS Cable | |
| Unit Weight | 76.7 LB |
| Unit Size | 25.6 x 9.1 x 7.5 inch |
| Shipping Weight | 85.5 LB |
| Shipping Size | 30.3 x 13.4 x 12.8 inch |
Manuals and Downloads
DOWNLOAD LFP 6KW 48V PURE SINE WAVE SPLIT INVERTER/CHARGER DATA SHEET
Download LFP Series Pure Sine Wave Inverter/Charger User's Manual
FAQ
1.) Is this unit a grid-tie inverter?
This unit is a pure sine wave inverter designed for off-grid use.
2.) How many can I connect in parallel?
This inverter cannot be connected in parallel with others.
3.) Can I connect my solar panels directly to the controller, or do I need a separate solar battery controller?
You will need an external solar controller to use it with solar panels.
Warranty
2 Year Warranty
