Rich Solar | 600Ah 12V LiFePO4 Off-Grid Battery Kit | 7.6kWh Deep Cycle Lithium Battery Bank | Powerful 600Ah Battery Bank | 3 X ALPHA 2 LITE in Parallel
Overview
The ALPHA 2 LITE is a 12V 200 Ah LiFePO4 battery built to be as tougher and more efficient than similar batteries on the market. Manufactured with the finest quality materials, the ALPHA 2 LITE is packed with lithium-iron-phosphate cells for maximum energy efficiency.
With its optimized construction and 200Ah, the ALPHA 2 LITE can provide the energy you need at a moment’s notice. Coupled with its security features and low-maintenance requirements, the ALPHA 2 LITE is the battery for people who need energy storage solutions without fuss.
FEATURES
- Premium lithium-iron-phosphate cells
- > 10 Year lifespan with proper maintenance
- Unsurpassed high-temperature performance
- Low maintenance
- High amp capacity
- Stable output voltage
- Little self-discharge
- Overcharging or discharging protection
- Overcurrent & short circuit protection
- High & low-temperature disconnects
- Charge Voltage: 14.4V
- Max Charge Current: 200A
- Max Discharge Current: 200A
- Battery Dimensions(L*W*H): 20.9x8.1x8.5 in
- Weight: 52.9 lb
BMS Safety Protection
Every LiFePO4 cell is individually fused with safety and efficiency in mind. If any cells fail, the isolated fuse will prevent any damage to the other cells and allow the battery to function normally.
Other BMS Features include:
- Convenient removable carry handle
- Lightweight
- Short circuit protection
- Over-charge/discharge protection
- Excessive heat protection

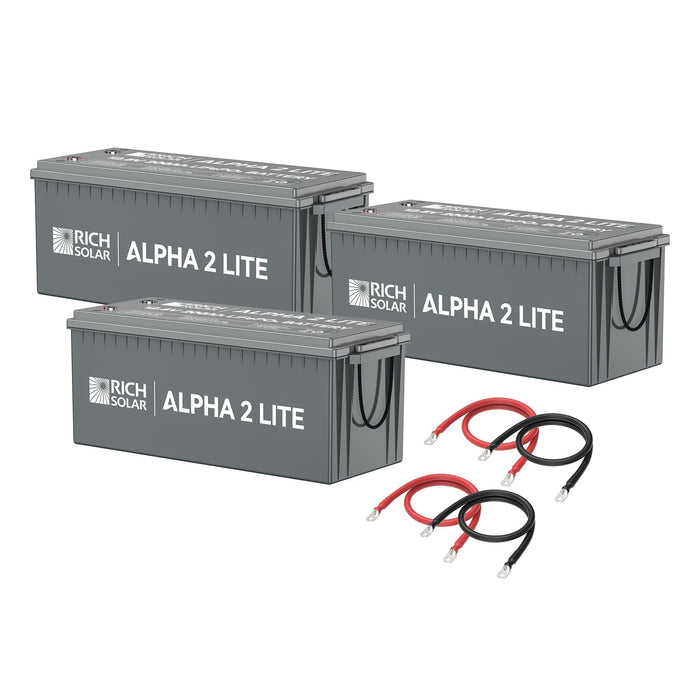

This 600AH 12V 7.6kWh Lithium Battery Bank comes with
- 3x 12V 200AH LiFePO4 Battery
- 4x 1ft 2 AWG Battery Cable
Specification
BATTERY
- Nominal Voltage: 12.8V
- Nominal Capacity: 200Ah
- Minimum Capacity: 199Ah
- Cycle Life: >4000 cycles
Operating Specifications
- Capacity: 200Ah
- Energy: 2560 Watt Hours
- Charge Voltage: 14.4V
- Continuous Discharge Current: 200A
- Self Discharge: < 5%/month
Temperature Performance
- Charge Temperature: 32℉ to 131℉ (0℃ to 55℃)
- Discharge Temperature: -4℉ to 140℉ (-20℃ to 60℃)
- Storage Temperature: 14°F-113°F / -10℃~45℃ 90％RH Max (More than 3 months)
Physical Specifications
- Battery Dimensions(L*W*H): 20.9x8.1x8.5 in
- Weight: 52.9 lb
BMS Operation
Over Charge Protection- Over charge detection voltage: 3.75V±0.03V
- Over charge detection delay time: 1000ms±500ms
- Over charge recovery voltage: 3.55V (Min 3.40V, Max 3.60V)
Over Discharge Protection
- Over discharge detection voltage: 2.20V±0.08V
- Over discharge detection delay time: 1000ms±500ms
- Over discharge recovery voltage: 2.70V±0.10V
Short Circuit Protection: Yes
Warranty: 5 years warranty
