Rich Solar | All-in-One Energy Storage System
Overview

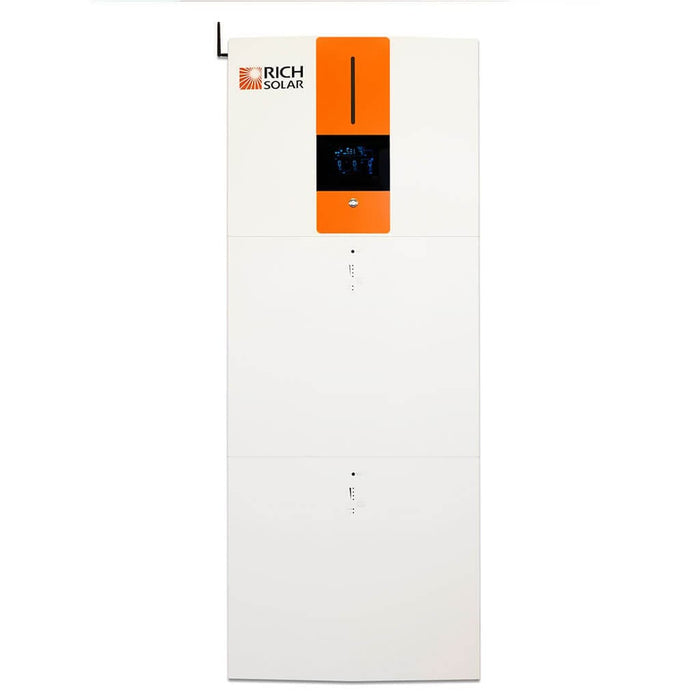

Introducing the RICH SOLAR All-in-One Energy Storage System
The RICH SOLAR All-in-One Energy Storage System is a powerful and efficient solar energy system designed to provide clean and reliable electricity. This innovative system integrates all the components required for solar power generation into a single, compact unit, including an inverter, batteries, and a charge controller.
FEATURES
- Pure sine wave output
- Off-Grid application
- Programmable supply priority for PV, Battery, or Grid
- User-adjustable battery charging current
- Battery independent design
- Multiple communication for USB, RS232, SNMP, Modbus, GPRS and Wi-Fi
- Monitoring APP (Android and iOS) for real-time status display and parameter control
- Built-in 2 MPPT trackers and AC/Solar charger up to 120A
- Compatible with utility and generator
- Scalable Li-Ion battery expansion
Specification
BATTERY INFO
Model: RS-A10
Maximum PV Input Power: 8000W
Rated Output Power: 6500W
Maximum Charging Power: 6500W
PV INPUT (DC)
MPPT Range @ Operating Voltage: 90 ~ 230 VDC
Maximum PV Array Open Circuit Voltage: 250 VDC/p>
Maximum Solar Charge Current: 120A
Number of MPP Trackers / Maximum Input Current: 2 / 2 x 18 A
AC INPUT
Acceptable Input Voltage Range: 90-140 VAC (For Computers)
80-140 VAC (For Home Appliances)
Maximum AC Input Current: 60A
BATTERY MODE OUTPUT
Nominal Output Voltage: 120 VAC
Maximum Conversion Efficiency (DC/AC): 93%

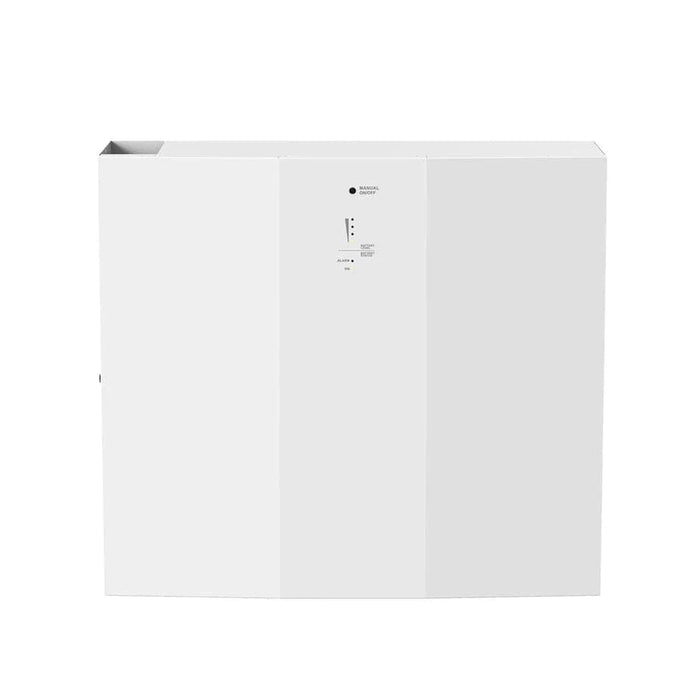

BATTERY
Nominal DC Voltage: 48 VDC
Maximum Charging Current: 120 A
Dimension: (D x W x H): 8.4" x 24.4" x 19.7"
Net Weight: 99 lb
Capacity: 5120Wh
Nominal Voltage: 51.2VDC
Full Charge Voltage(FC): 56V
Full Discharge Voltage(FD): 42V
Typical Capacity: 100 Ah
Max Continuous Discharging Current: 120A
Max Discharging Current: 192A at 1 min
Protection: BMS, Breaker
Float Charge Voltage: 52.5V
Charge Current: 20A (0.2C)
Maximum Charge current: 50A (0.5C)
Standard Charge method: 0.2C CC (Constant current) charge to FC, CV (Constant voltage FC) charge till charge current declines to <0.05C
Inner Resistance: =20m ohm
ALL IN ONE SYSTEM PHYSICAL
System Dimension (D X W X H): 19.7" x 26" x 49.2"
Net Weight: 287 lb
STANDARD
Compliance Safety: IEC 62619, EN 61000-6-3, EN 61000-6-1, UKCA, UN38.3, UL 1741, CSA C22.2 No.107.1-16, FCC PART 15B
