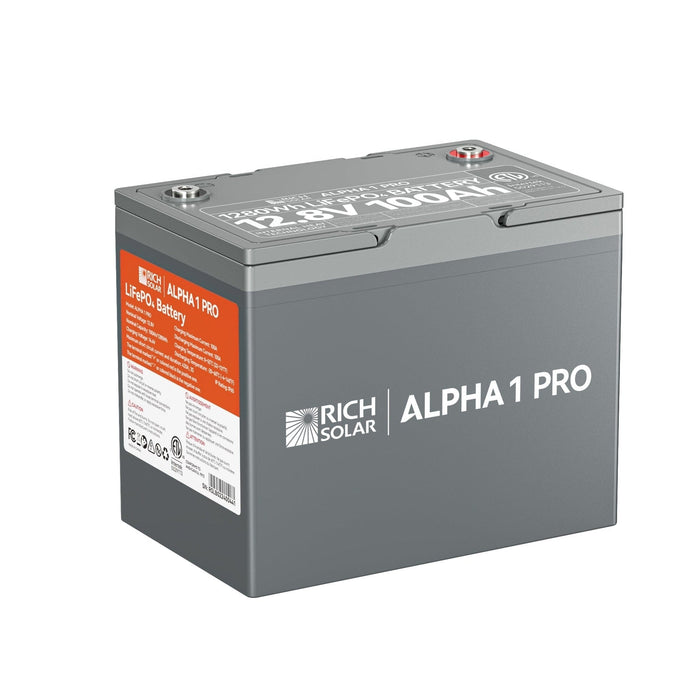

Rich Solar | ALPHA 1 PRO | 12V 100Ah LiFePO4 Battery | Premium 12V Lithium Battery | 7,000 Lifetime Cycles | 10 Year Warranty | UL1973 Certified
by Rich Solar
SKU RS-B121SP
Original price
$599.99
-
Original price
$599.99
Original price
$599.99
$599.99
-
$599.99
Current price
$599.99
Overview
Reliable Power in a Compact Package
Experience the perfect combination of efficiency and durability with our 12.8V 100Ah LiFePO4 Battery. Designed for longevity and high performance, this battery is ideal for a range of applications, including RVs, boats, solar systems, and more.
FEATURES
- Cell Type: Built with advanced LiFePO4 technology for stable and reliable power delivery.
- Energy Capacity: 1280Wh of energy storage ensures you have the power you need when you need it.
- Cycle Life: With an impressive 7000-cycle lifespan, this battery offers years of dependable use.
- Scalability: Expandable up to 4P4S, giving you the flexibility to scale your system as needed.
Specifications
- Cell Type: LiFePO4 Battery
- Nominal Voltage: 12.8V
- Nominal Capacity: 100Ah
- Nominal Energy: 1280Wh
- Cycle Life: 7000 cycles
- Maximum Expansion (Parallel & Series): 4P4S
BMS
- BMS: 100A
- Maximum Charging Current: 100A
- Maximum Continuous Discharge Current: 100A
- Maximum Discharge Current 10 Seconds: 110A
CHARGE
- Charge Method: CC/CV
- Charge Voltage: 14.4V ± 0.2V
- Recommend Charge Current: 50A (0.2C)
TEMPERATURE
- Charge Temperature: 32℉ to 131℉ (0℃ to 55℃)
- Discharge Temperature: -4℉ to 140℉ (-20℃ to 60℃)
- Storage Temperature: 14℉ to 95℉ (-10℃ to 35℃)
SELF-HEATING
- External Power Draw: 100W
- Internal Heating Starts: < 41℉ (5℃)
- Internal Heating Stops: > 50℉ (10℃)
OTHERS
- Net Battery Weight: 24.0lb
- Size(L*W*H): 10.2x6.6x8.3in (Group 24 size)
- Housing Material: ABS (Flame Retardant Plastic)
- Protection Class: IP65
- Warranty: 10 Years
- Certifications: UL1973, FCC, UN38.3, ETL
Manuals and Downloads
