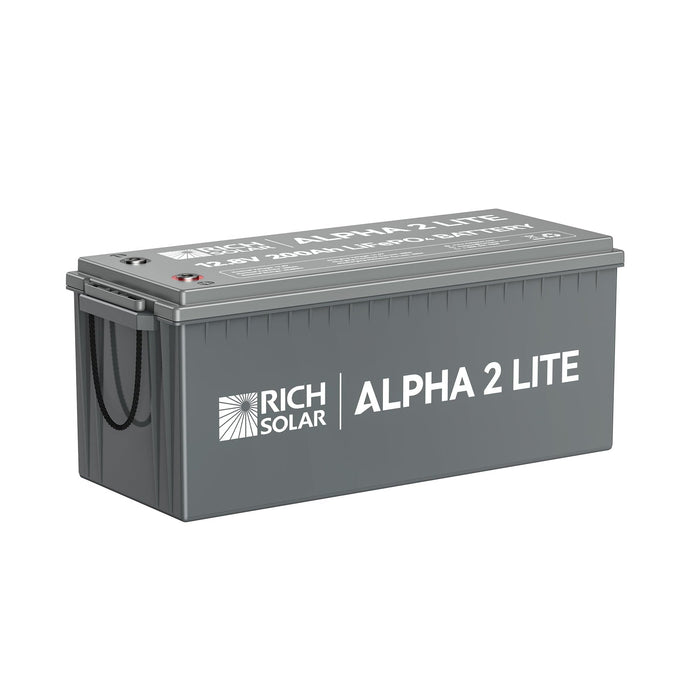

Rich Solar | ALPHA 2 LITE | 12V 200Ah LiFePO4 Battery | Best 12V Deep Cycle Lithium Battery | 4,000 Lifetime Cycles | Best Value
Overview
Energy Whenever You Need
For adventurers and off-gridders looking for durable and powerful energy storage solutions, the new ALPHA 2 LITE is a 12V 200Ah LiFePO4 battery that can provide. Its durable construction and individually fused LiFePO4 cells grant the battery excessive heat protection, short circuit protection, and individual cell failure protection.
Boasting 2560Wh and a BMS system to ensure optimal protection, you won't even have to worry about never having energy. Whether setting up your backup generator or boondocking in the middle of the summer, the ALPHA 2 LITE gives you the freedom to go where you want.
Specification
BATTERY
- Nominal Voltage: 12.8V
- Nominal Capacity: 200Ah
- Minimum Capacity: 199Ah
- Cycle Life: >4000 cycles
Operating Specifications
- Capacity: 200Ah
- Energy: 2560 Watt Hours
- Charge Voltage: 14.4V
- Continuous Discharge Current: 200A
- Self Discharge: < 5%/month
Temperature Performance
- Charge Temperature: 32℉ to 131℉ (0℃ to 55℃)
- Discharge Temperature: -4℉ to 140℉ (-20℃ to 60℃)
- Storage Temperature: 14°F-113°F / -10℃~45℃ 90％RH Max (More than 3 months)
Physical Specifications
- Battery Dimensions(L*W*H): 20.9x8.1x8.5 in
- Weight: 52.9 lb
BMS Operation
Over Charge Protection
- Over charge detection voltage: 3.75V±0.03V
- Over charge detection delay time: 1000ms±500ms
- Over charge recovery voltage: 3.55V (Min 3.40V, Max 3.60V)
Over Discharge Protection
- Over discharge detection voltage: 2.20V±0.08V
- Over discharge detection delay time: 1000ms±500ms
- Over discharge recovery voltage: 2.70V±0.10V
Short Circuit Protection
Warranty: 5 year warranty
