Anker Solix | E10 Manual Backup Kit | 6-12 kWh LiFePO4 Battery | 10-30 kW Turbo Output

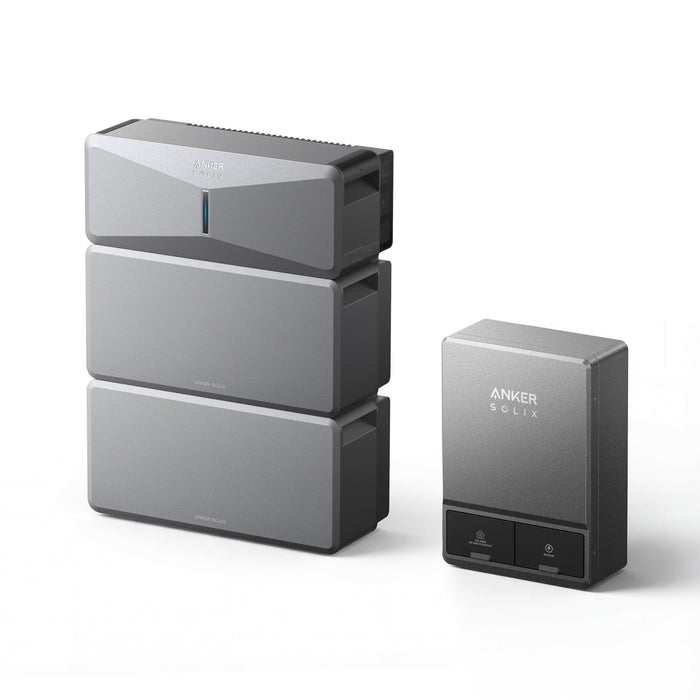

Anker SOLIX E10 Manual Backup Kit
Reliable Whole-Home Backup

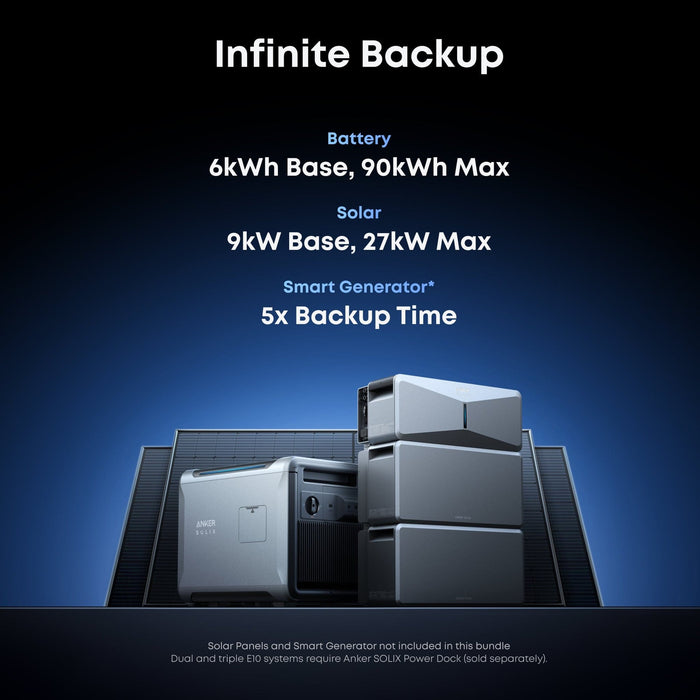

The Anker SOLIX E10 Manual Backup Kit provides scalable energy backup from 6kWh to 90kWh, supporting 1–15 days of power depending on your needs. Each unit delivers up to 30kWh, expandable for full home coverage, ensuring uninterrupted power during outages.
High-Capacity Solar Input
- Dual 30V–450V MPPTs, up to 9kW per unit
- Total solar input: 9–27kW
- Compatible with existing solar systems via CT integration for maximum energy capture

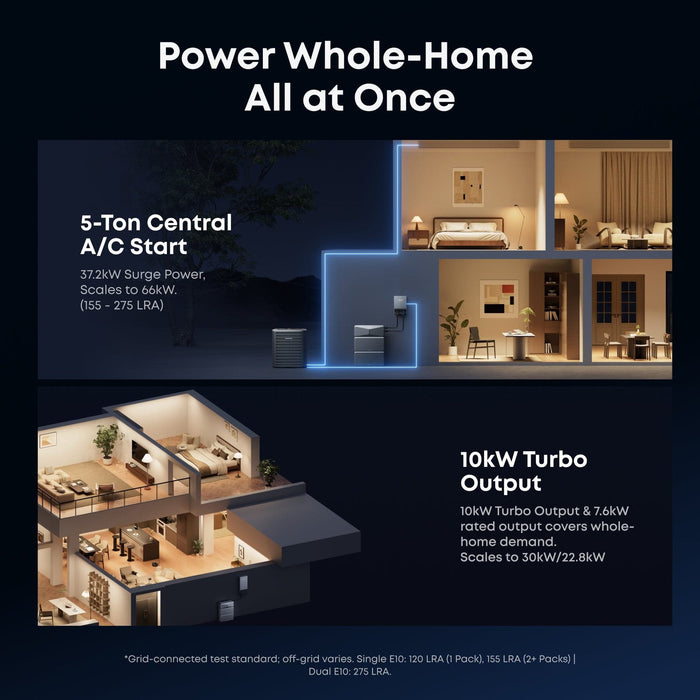

Whole-Home, No Compromises
- 200A whole-home backup protects the entire panel
- 10kW turbo output per unit, up to 30kW total
- Continuous output: 7.6–22.8kW
- Surges 37–66kW to handle heavy appliances, including 5-ton A/C

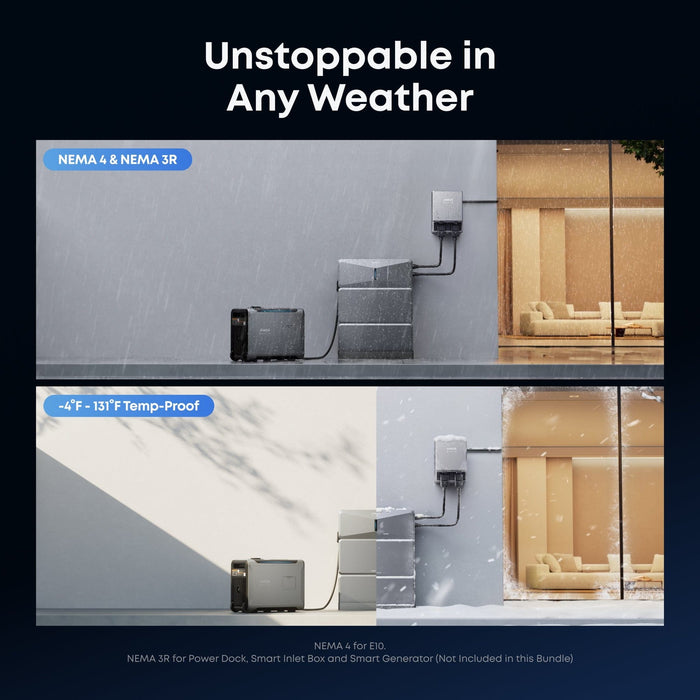

Built for All Weather
- Outdoor-ready with IP66 military-grade casing
- Reliable in heat, cold, storms, and snow—no shelter required
- Flexible wall or floor mount installation

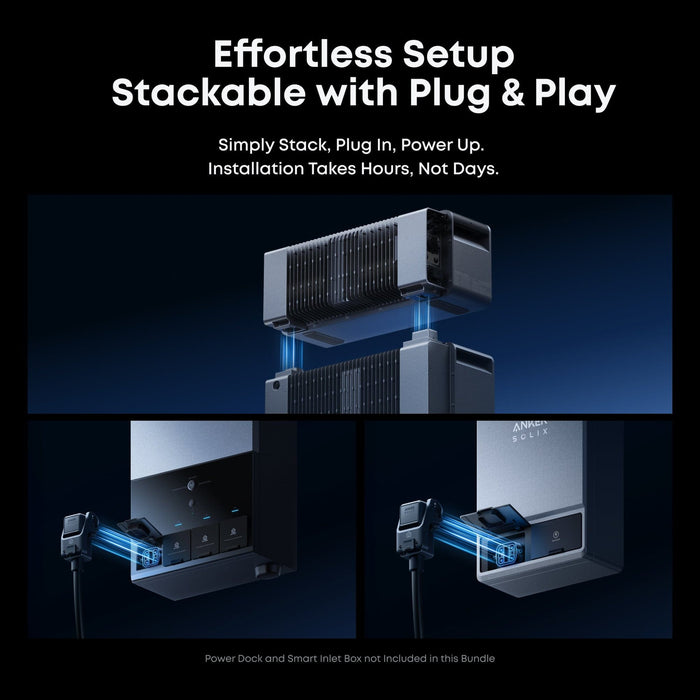

Effortless Setup
- Stackable plug-and-play design for quick installation
- Step-by-step guides, videos, and live expert support
- Optional access to licensed electricians for hands-free setup
Smart Energy & Savings
- Store solar or off-peak energy for use during peak hours
- Reduce electricity bills by up to 80%
- Storm Guard™ Mode proactively prepares the system for severe weather
Reliable Battery Safety
- Automotive-grade LFP cells with 41-point smart BMS
- Pressure-relief, durable design for long-lasting performance
Hassle-Free Warranty
- 5 years: E10 power module & battery
- 3 years: Smart Generator 5500
- 10 years: Smart Inlet Box & Power Dock
Specifications
| Product | |
| Product Name | Anker SOLIX E10 Power Module |
| Model | A17E1 |
| Image | |
| On-Grid AC Port | |
| Rated Voltage | 120/240 VAC (Split Phase) |
| Rated Frequency | 60 Hz |
| Maximum Continuous Input / Output Current | 32 A |
| Maximum Continuous Input / Output Power | 7,680 W |
| Backup AC Port | |
| Rated Voltage | 120/240 VAC (Split Phase) |
| Rated Frequency | 60 Hz |
| Maximum Continuous Output Current (With Battery) | 32 A |
| Maximum Continuous Output Power (With Battery) | 7,680 W |
| Peak Backup Output Current (With Battery) | 41.6 A |
| Peak Backup Output Power (With Battery) | 10,000 W |
| LRA Equivalent Ability* | 275A(2 or more inverters in parrallel with 2 or more batteries connect to each inverter) 155 A(with 2 or more batteries) 120 A(with 1 battery) |
| Maximum Continuous Output Current (AC Generator Bypass) | 40 A |
| Maximum Continuous Output Power (AC Generator Bypass) | 9,600 W |
| AC Input Port | |
| Recharging Mode#1 | |
| Rated Voltage | 120 VAC |
| Rated Frequency | 60Hz |
| Maximum Input Current | 15A Max (<3hours when the current exceeds 12A) |
| Maximum Input Power | 1800W |
| Recharging Mode#2 | |
| Rated Voltage | 120/240 VAC (Split Phase) |
| Rated Frequency | 60Hz |
| Maximum Input Current | 32A |
| Maximum Input Power | 7680W |
| AC Bypass Mode | |
| Rated Voltage | 120/240 VAC (Split Phase) |
| Rated Frequency | 60Hz |
| Maximum Input Current | 40 A |
| Maximum Input Power | 9,600 W |
| Battery Input/Output | |
| Charge/Discharge Voltage Range | 380~450Vdc |
| Maximum Charge/Discharge Current | 23.7/21.1A |
| Maximum Charge/Discharge power | 9000/8000W |
| DC Solar Input | |
| MPPTs | 2 |
| PV DC Input Voltage Range | 30 to 450 V(DC) |
| Maximum Current per MPPT (Imp) | 15 A(DC) |
| Maximum Short Circuit Current per MPPT (Isc) | 20 A(DC) |
| Each MPPT Maximum Input Power | 4,500W(DC) |
| DC Generator Input | |
| DC Input Voltage Range | 380~450V |
| Maximum Input Current | 12A Max |
| Maximum Input Power | 5400W |
| Others | |
| Connectivity | Wi-Fi, Bluetooth |
| Installation Option | Mounting On Battery |
| Dimensions (W x H x D) | 26.4" x 11.8" x 10.2" (670 x 300 x 260 mm) |
| Weight | 59.5 lbs (27 kg) |
| Enclosure Type | NEMA 4X (IP66) |
| Operating Temperature | -4 °F to 131 °F (-20~55°C) |
| Warranty | 5 Years |
| Certification Information | UL 1741, CSA C22.2 No. 107.1:16, UL 1699B, ANSI/CAN/UL 9540, ANSI/CAN/UL9540A, UL 1741 SB, IEEE Std 1547:2018, IEEE Std 1547a:2020, IEEEE Std 1547.1:2020, SRD 2.0, CPUC Rule 21, UL 3141, UL1741CRD(PCS), UL1998, California Public Utilities Commission Resolution E-5000 & E-5036, ANSI/CAN/UL 2743, UL 1778, CSA C22.2 No. 107.3-14, UL 1012, CSA C22.2 No. 107.1, 47 CFR Part 15, Subpart B, 47 CFR Part 15,Subpart C 15.247, ICES-003, RSS247, CP65, TSCA, PFAS, CEC-300-2018-009-CMF, Appendix section C - "Inverters"，Energy Commission’s Solar Equipment Lists |
| Product | |
| Product Name | Anker SOLIX E10 Battery Module |
| Model | A17E1141-85 |
| Performance Specification | |
| Battery Type | Li-ion (LFP) |
| Capacity | 6144Wh |
| Battery Terminal Voltage Range | 380~450Vdc |
| Maximum Charge / Discharge Power | 6000/8000W |
| Maximum Charge / Discharge Current: | 15.8/21.1A |
| Others | |
| Installation Option | Floor Mounting Or Wall Mounting |
| Dimensions (W x H x D) | 26.4" x 12.7" x 11.1" (670 x 322 x 281 mm) |
| Weight | 130 Ibs (59 kg) |
| Enclosure Type | NEMA 4X (IP66) |
| Operating Temperature | -4 °F to 131 °F (-20~55°C) |
| Warranty | 5 Years |
| Certification Information | ANSI/CAN/UL 1973,UL 60730-1:2016 Annex H, ANSI/CAN/UL 9540, ANSI/CAN/UL9540A, ANSI/CAN/UL 2743, UL 1778, CSA C22.2 No. 107.3-14, UL 1012, CSA C22.2 No. 107.1, 47 CFR Part 15, Subpart B,ICES-003,CP65,TSCA,PFAS,UN38.3,Energy Commission’s Solar Equipment Lists |
| Product | |

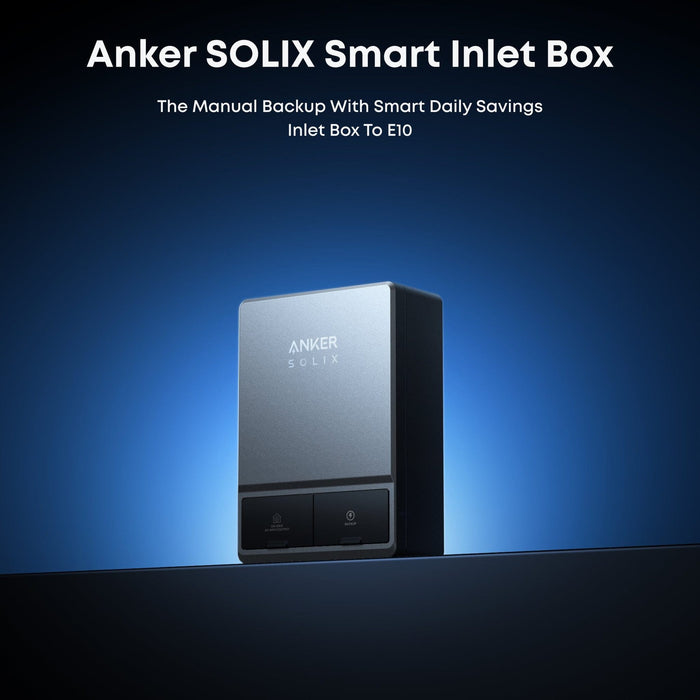

| Product Name | Anker SOLIX Smart Inlet Box |
| Model | AS211 |
| On-Grid Port | |
| Rated Voltage | 120/240 VAC (Split Phase) |
| Rated Frequency | 60 Hz |
| Maximum Continuous Current | 100 A |
| Backup Port | |
| Rated Voltage | 120/240 VAC (Split Phase) |
| Rated Frequency | 60 Hz |
| Maximum Continuous Current | 100 A |
| Others | |
| Installation Option | Wall Mounting |
| Dimensions (W x H x D) | 16.5" × 11" × 5.2" (418 x 280 x 131 mm) |
| Weight | 14.3 Ibs (6.5 kg) |
| Enclosure Type | NEMA TYPE 3R |
| Operating Temperature | -4 °F to 131 °F (-20~55°C) |
| Warranty | 10 Years |
| Certification Information | UL 1741, CSA C22.2 No. 107.1:16, ANSI/CAN/UL 9540,CP65,TSCA,PFAS |
