Anker Solix | E10 Starter Kit | Whole Home Backup System 6-30 kWh LiFePO4 Battery | 10-30 kW Turbo Output
Anker SOLIX E10 Whole-Home Backup System (Starter Kit)
The Anker SOLIX E10 is a scalable whole-home backup system built for uninterrupted living. From short outages to multi-day emergencies, E10 delivers reliable power, massive solar input, and true 200A whole-panel coverage—so your home works exactly like the grid never went down.
Key Benefits at a Glance
- 6kWh to 90kWh expandable capacity
- Up to 30kWh per unit
- 9–27kW solar input
- 200A whole-home backup
- Outdoor-ready, all-weather design
- Plug-and-play, stackable installation

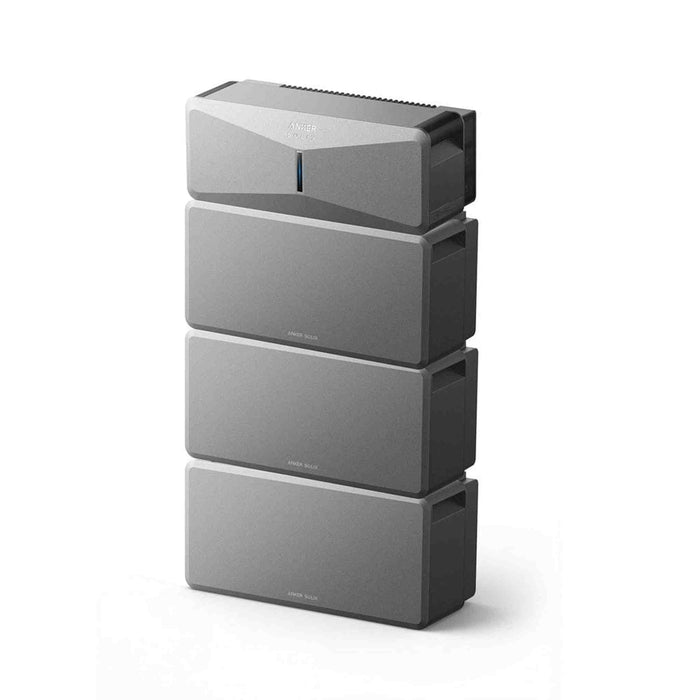

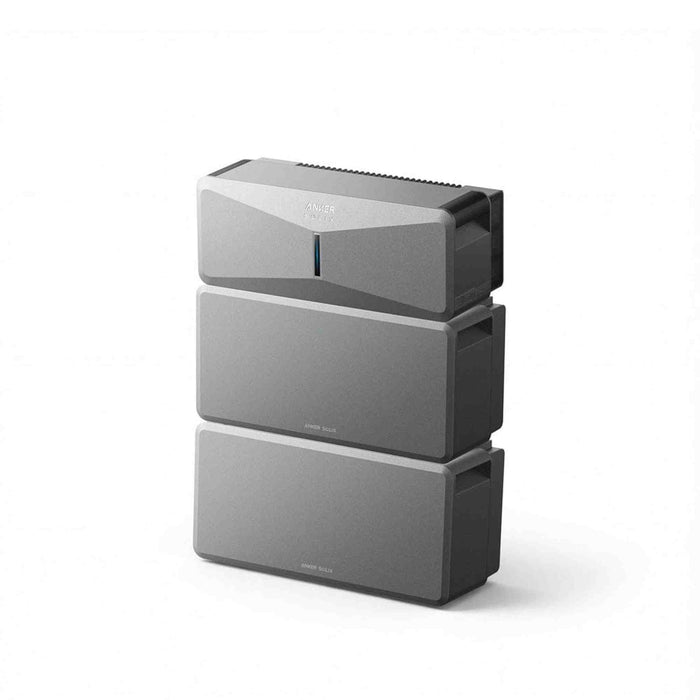

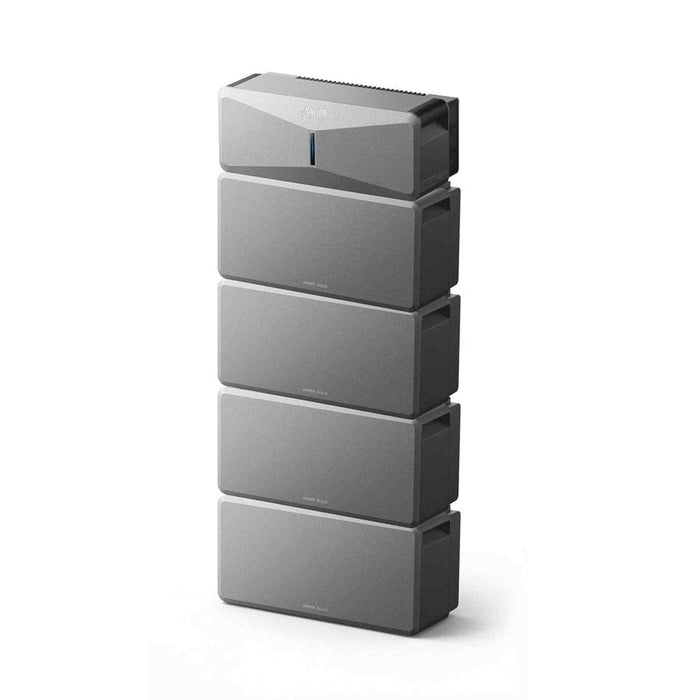

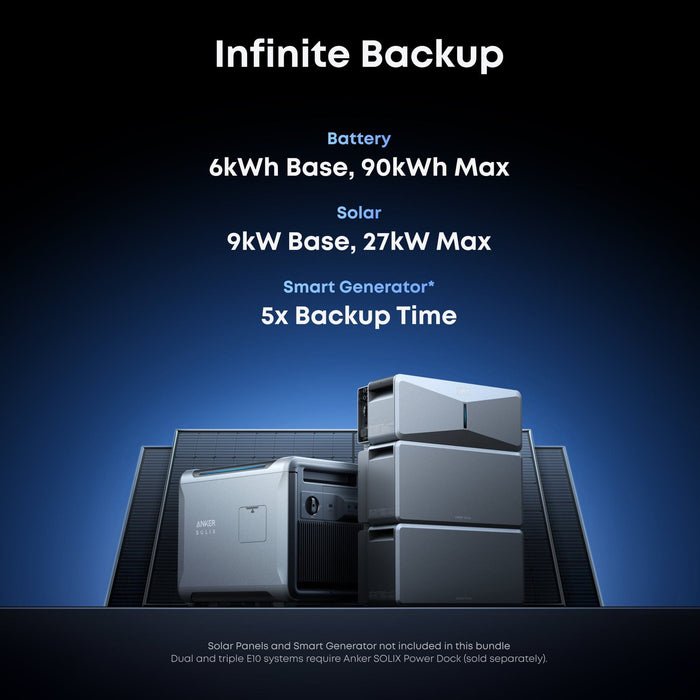

Scalable Backup That Grows With You
Start small or build big. Each E10 unit provides up to 30kWh of capacity and expands to 90kWh total, supporting 1 to 15 days of backup power depending on usage.
Massive Solar Input for Longer Runtime
- Dual 30V–450V MPPTs
- Up to 9kW solar per unit
- 9–27kW total system input
The E10 maximizes solar generation for daily savings and extended backup. With CT integration, it also works alongside existing solar systems for even greater energy capture.

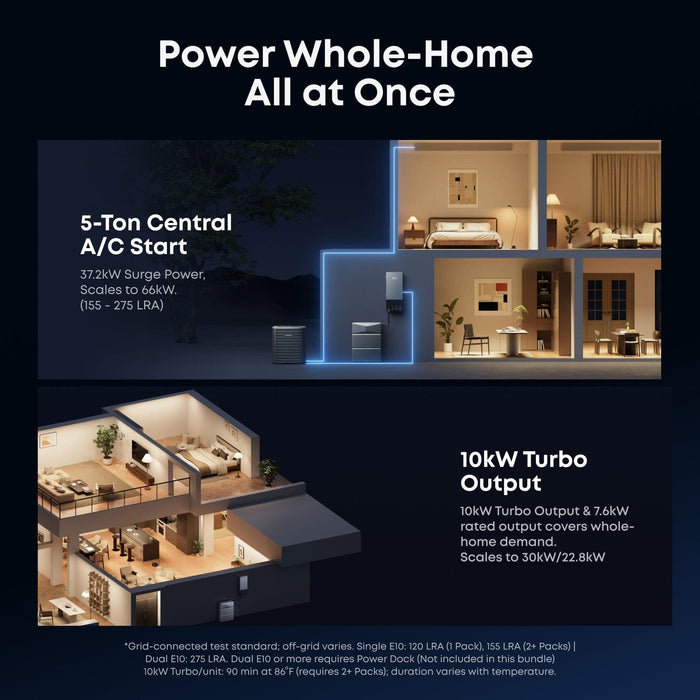

True Whole-Home Power — No Load Shedding
Unlike limited 100A systems, the E10 delivers 200A whole-panel backup, powering every room, outlet, and appliance simultaneously.
No prioritizing. No compromises. Just seamless power.
High Output & Heavy-Load Ready
- 10kW turbo output per unit
- Up to 30kW total output
- 7.6–22.8kW continuous power
- 37kW–66kW surge capacity
Confidently starts and runs high-demand appliances, including 5-ton central air conditioning systems.

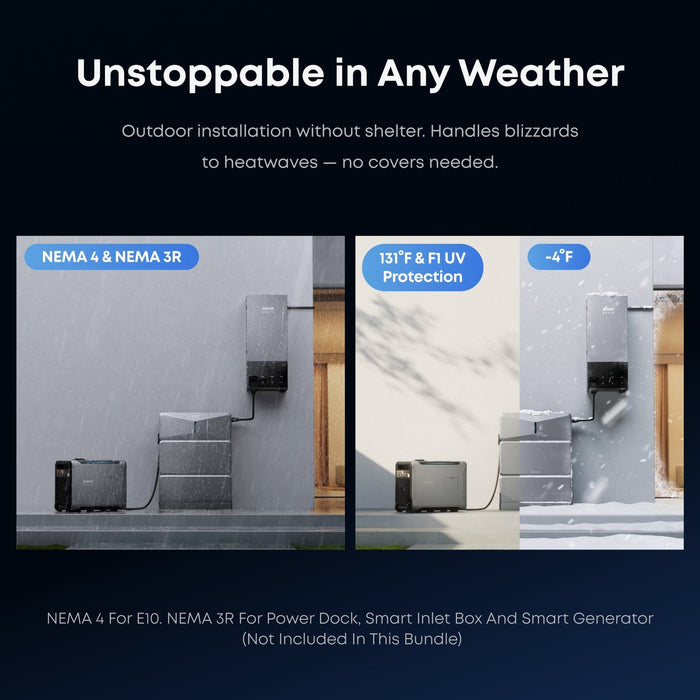

Built for the Outdoors. Ready for Anything.
Engineered for year-round outdoor installation, the E10 operates reliably through extreme heat, cold, storms, and snow—no shelter or covers required.

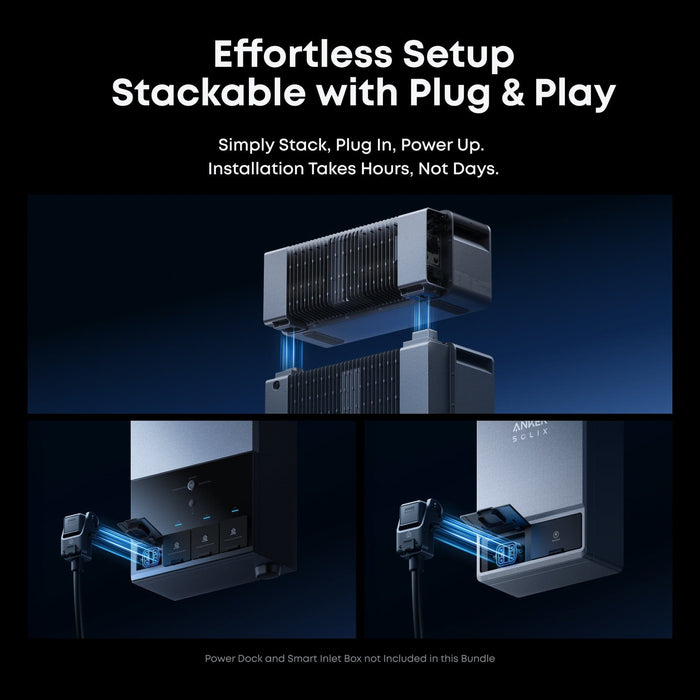

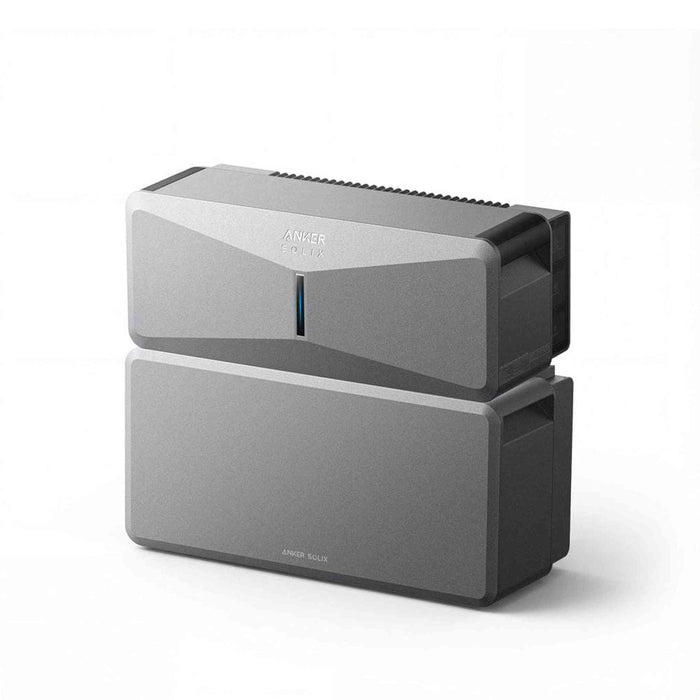

Flexible Installation, Faster Setup
- Wall-mount or floor-mount options
- Stackable modular design
- Plug-and-play connections
Installation and expansion take hours, not days, making upgrades quick and stress-free.
Smart Energy That Saves You Money
Store solar and off-peak grid power, then use it during peak hours to reduce electricity costs by up to 80%. Backup power that pays you back.
Storm Guard™ Mode
E10 actively monitors severe weather and automatically pre-charges using solar and grid power—keeping your home prepared before outages strike.
Advanced Battery Safety You Can Trust
- Automotive-grade LFP battery cells
- 41-point smart BMS
- Reinforced IP66 metal enclosure
- Pressure-relief safety design
Built for long-term durability, safety, and performance.
Warranty & Support You Can Rely On
Comprehensive multi-year coverage across system components, backed by Anker’s trusted support and installation guidance.
Specifications
| Product | |

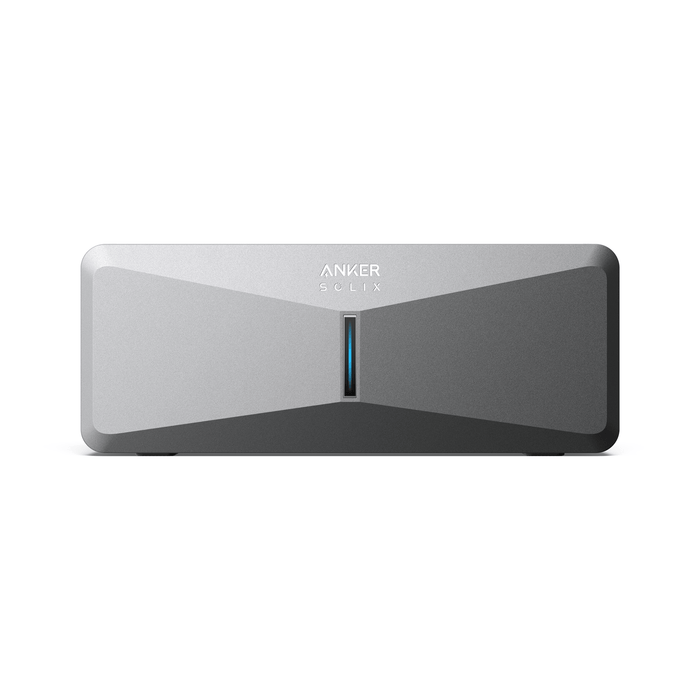

| Product Name | Anker SOLIX E10 Power Module |
| Model | A17E1 |
| Image | |
| On-Grid AC Port | |
| Rated Voltage | 120/240 VAC (Split Phase) |
| Rated Frequency | 60 Hz |
| Maximum Continuous Input / Output Current | 32 A |
| Maximum Continuous Input / Output Power | 7,680 W |
| Backup AC Port | |
| Rated Voltage | 120/240 VAC (Split Phase) |
| Rated Frequency | 60 Hz |
| Maximum Continuous Output Current (With Battery) | 32 A |
| Maximum Continuous Output Power (With Battery) | 7,680 W |
| Peak Backup Output Current (With Battery) | 41.6 A |
| Peak Backup Output Power (With Battery) | 10,000 W |
| LRA Equivalent Ability* | 275A(2 or more inverters in parrallel with 2 or more batteries connect to each inverter) 155 A(with 2 or more batteries) 120 A(with 1 battery) |
| Maximum Continuous Output Current (AC Generator Bypass) | 40 A |
| Maximum Continuous Output Power (AC Generator Bypass) | 9,600 W |
| AC Input Port | |
| Recharging Mode#1 | |
| Rated Voltage | 120 VAC |
| Rated Frequency | 60Hz |
| Maximum Input Current | 15A Max (<3hours when the current exceeds 12A) |
| Maximum Input Power | 1800W |
| Recharging Mode#2 | |
| Rated Voltage | 120/240 VAC (Split Phase) |
| Rated Frequency | 60Hz |
| Maximum Input Current | 32A |
| Maximum Input Power | 7680W |
| AC Bypass Mode | |
| Rated Voltage | 120/240 VAC (Split Phase) |
| Rated Frequency | 60Hz |
| Maximum Input Current | 40 A |
| Maximum Input Power | 9,600 W |
| Battery Input/Output | |
| Charge/Discharge Voltage Range | 380~450Vdc |
| Maximum Charge/Discharge Current | 23.7/21.1A |
| Maximum Charge/Discharge power | 9000/8000W |
| DC Solar Input | |
| MPPTs | 2 |
| PV DC Input Voltage Range | 30 to 450 V(DC) |
| Maximum Current per MPPT (Imp) | 15 A(DC) |
| Maximum Short Circuit Current per MPPT (Isc) | 20 A(DC) |
| Each MPPT Maximum Input Power | 4,500W(DC) |
| DC Generator Input | |
| DC Input Voltage Range | 380~450V |
| Maximum Input Current | 12A Max |
| Maximum Input Power | 5400W |
| Others | |
| Connectivity | Wi-Fi, Bluetooth |
| Installation Option | Mounting On Battery |
| Dimensions (W x H x D) | 26.4" x 11.8" x 10.2" (670 x 300 x 260 mm) |
| Weight | 59.5 lbs (27 kg) |
| Enclosure Type | NEMA 4X (IP66) |
| Operating Temperature | -4 °F to 131 °F (-20~55°C) |
| Warranty | 5 Years |
| Certification Information | UL 1741, CSA C22.2 No. 107.1:16, UL 1699B, ANSI/CAN/UL 9540, ANSI/CAN/UL9540A, UL 1741 SB, IEEE Std 1547:2018, IEEE Std 1547a:2020, IEEEE Std 1547.1:2020, SRD 2.0, CPUC Rule 21, UL 3141, UL1741CRD(PCS), UL1998, California Public Utilities Commission Resolution E-5000 & E-5036, ANSI/CAN/UL 2743, UL 1778, CSA C22.2 No. 107.3-14, UL 1012, CSA C22.2 No. 107.1, 47 CFR Part 15, Subpart B, 47 CFR Part 15,Subpart C 15.247, ICES-003, RSS247, CP65, TSCA, PFAS, CEC-300-2018-009-CMF, Appendix section C - "Inverters"，Energy Commission’s Solar Equipment Lists |
| Product | |

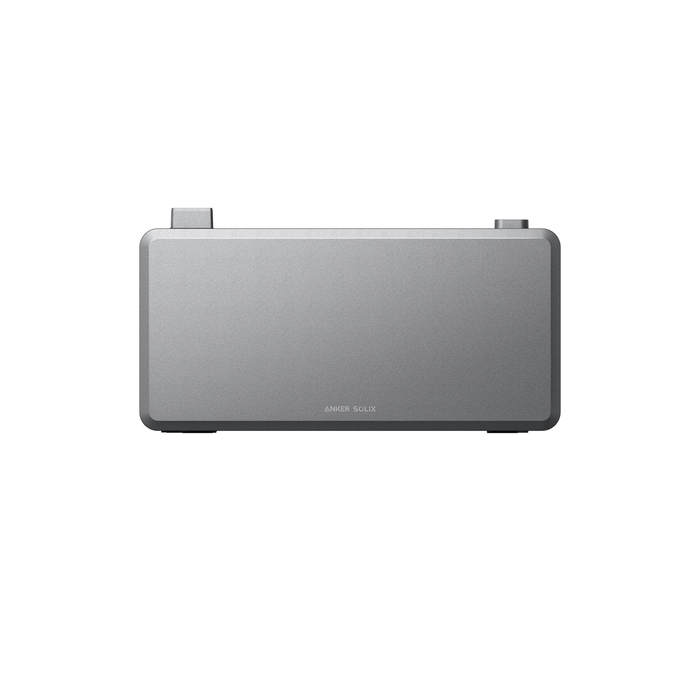

| Product Name | Anker SOLIX E10 Battery Module |
| Model | A17E1141-85 |
| Performance Specification | |
| Battery Type | Li-ion (LFP) |
| Capacity | 6144Wh |
| Battery Terminal Voltage Range | 380~450Vdc |
| Maximum Charge / Discharge Power | 6000/8000W |
| Maximum Charge / Discharge Current: | 15.8/21.1A |
| Others | |
| Installation Option | Floor Mounting Or Wall Mounting |
| Dimensions (W x H x D) | 26.4" x 12.7" x 11.1" (670 x 322 x 281 mm) |
| Weight | 130 Ibs (59 kg) |
| Enclosure Type | NEMA 4X (IP66) |
| Operating Temperature | -4 °F to 131 °F (-20~55°C) |
| Warranty | 5 Years |
| Certification Information | ANSI/CAN/UL 1973,UL 60730-1:2016 Annex H, ANSI/CAN/UL 9540, ANSI/CAN/UL9540A, ANSI/CAN/UL 2743, UL 1778, CSA C22.2 No. 107.3-14, UL 1012, CSA C22.2 No. 107.1, 47 CFR Part 15, Subpart B,ICES-003,CP65,TSCA,PFAS,UN38.3,Energy Commission’s Solar Equipment Lists |
