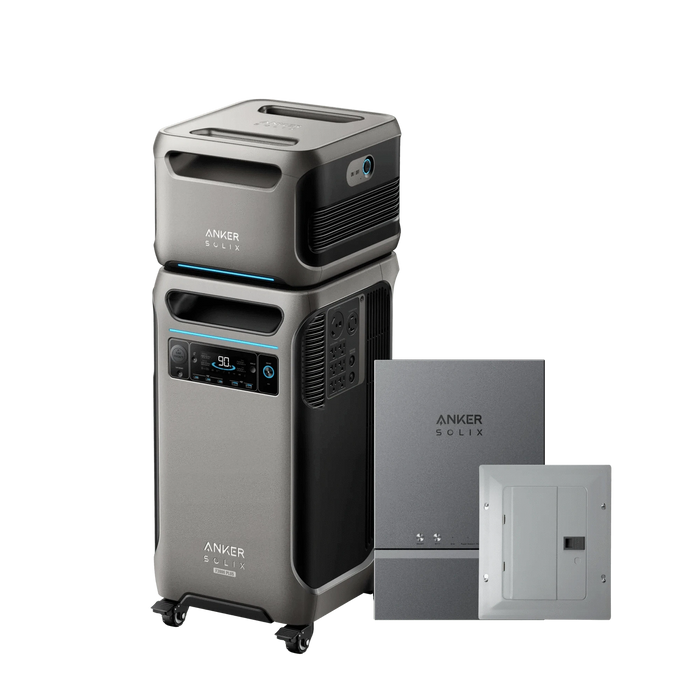

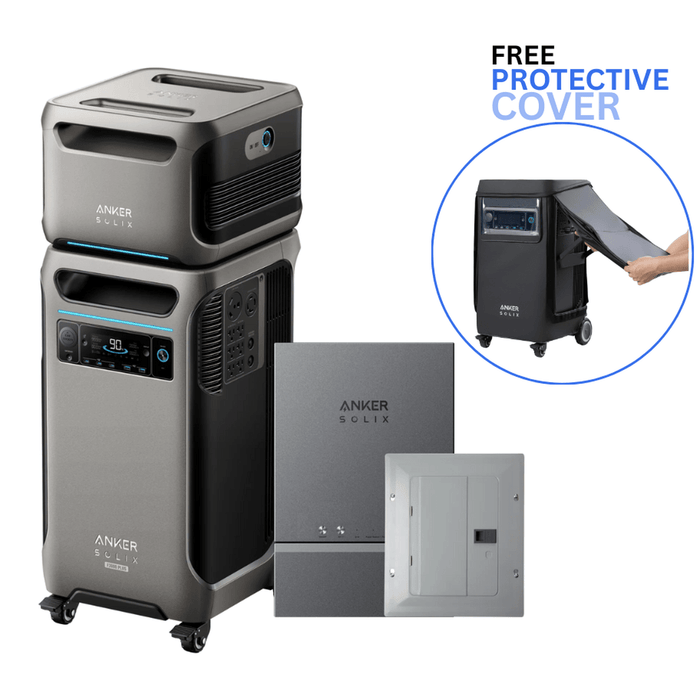

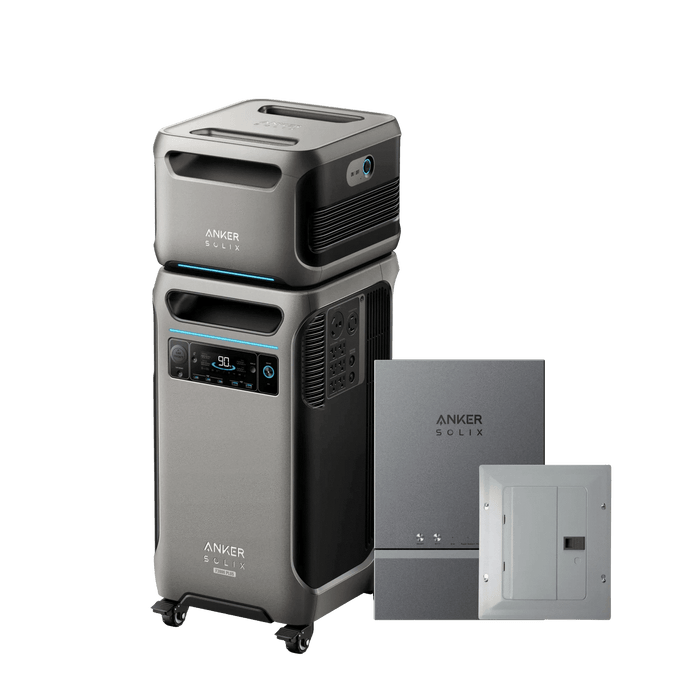

Anker Solix | F3800 + Expansion Battery + Home Power Kit with Free Protective Cover
Overview
The Anker SOLIX F3800, combined with the Expansion Battery and Home Power Kit, offers a comprehensive and scalable energy solution for your home. This setup ensures reliable backup power, seamless integration with your existing energy systems, and enhanced control over your energy consumption.
KEY FEATURES
-
High Capacity and Output: The SOLIX F3800 provides a substantial 3,840Wh capacity with a continuous output of 6,000W. When paired with the Expansion Battery, total capacity increases to 7,680Wh, capable of powering various household appliances simultaneously.
-
Seamless Integration: The Home Power Kit allows the SOLIX F3800 to integrate effortlessly with your utility grid and rooftop solar panels. This integration optimizes energy efficiency and provides backup power during outages.
-
Smart Energy Management: Utilize the Anker app to monitor and control energy usage, enabling you to avoid peak rate charges and optimize consumption. This feature promotes sustainability and self-sufficiency.
-
Reliable Backup Power: Ensure uninterrupted power to essential home appliances during outages, maintaining the operation of critical devices without interruption.
-
Long-Term Durability: Built with LiFePO4 (LFP) battery cells, the system offers over 3,000 cycles to 80%+ capacity, ensuring a lifespan of up to 10 years.
-
Comprehensive Warranty: Backed by a 5-year hassle-free warranty, reflecting Anker's commitment to quality and customer satisfaction.
Always Stay Charged and Prepared
What's Included
Power Station
- Anker SOLIX F3800
- AC Charging Cable
- Anker SOLIX MC4-to-XT60 Charging Cable
Home Panel Kit
- Anker SOLIX Home Power Panel
- Backplate Bracket (×2)
- Wall Bracket (×2)
- F3800 to Home Power Panel Cable (1.5m) (×1)
- 200A Current Transformer (Model: XH-SCT-S24) (×2)
- 100A Current Transformer (Model: CTSA016-100A/100mA) (×1)
- M6*60 Expansion Bolt (Secures Wall Bracket to Concrete Wall) (×4)
- M6*50 Hexagonal Self-Tapping Screw (Secures Wall Bracket to Wooden Wall) (×4)
- M4*10 Cross Recessed Countersink Screw (×10)
- Positioning Card
- Installation Guide
- 12-Circuit Backup LoadCenter(×1)
- 100A Circuit Breaker (×1)
-
12-Circuit Backup Load Center Ground Bar Kit (×1)
Expansion Battery
- Anker SOLIX BP3800 Expansion Battery
- Battery-to-Host Cable
- Important Information
Specification
Anker SOLIX F3800 Portable Power Station
| Specification | Details |
|---|---|
| Capacity | 3,840Wh |
| Battery Chemistry | LFP (LiFePO₄), 3,000+ cycles |
| Expandable Capacity | Supports up to 6 × Expansion Batteries (3.84kWh each) |
| AC Continuous Output | 6,000W Dual Voltage: 120V & 240V |
| AC Surge Output | 9,000W |
| Scalability | Supports up to 2 × F3800 units |
| AC Outlets | 6 × NEMA 5-20 (120V, 20A) 1 × NEMA 14-50 (240V, max 6,000W) 1 × NEMA L14-30 (240V, max 6,000W) |
| Solar Input Recharge | Max 2,400W (2 × 1,200W inputs at 25A each) |
| AC Input Recharge | Max 1,800W |
| USB Outputs | 2 × USB-A (12W each, 24W total) 3 × USB-C (100W each, 300W total) |
| UPS Function | Switch time < 20ms |
| App Control | Wi-Fi & Bluetooth connectivity |
| Dimensions (L × W × H) | 27.6 × 15.3 × 15.6 in (including wheels) |
| Net Weight | 132.3 lbs |
| Warranty | 5-Year Warranty |
