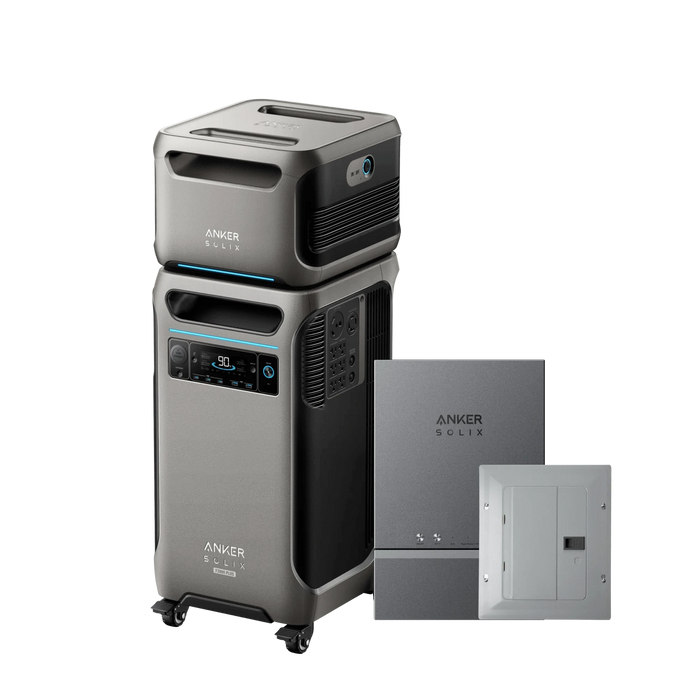

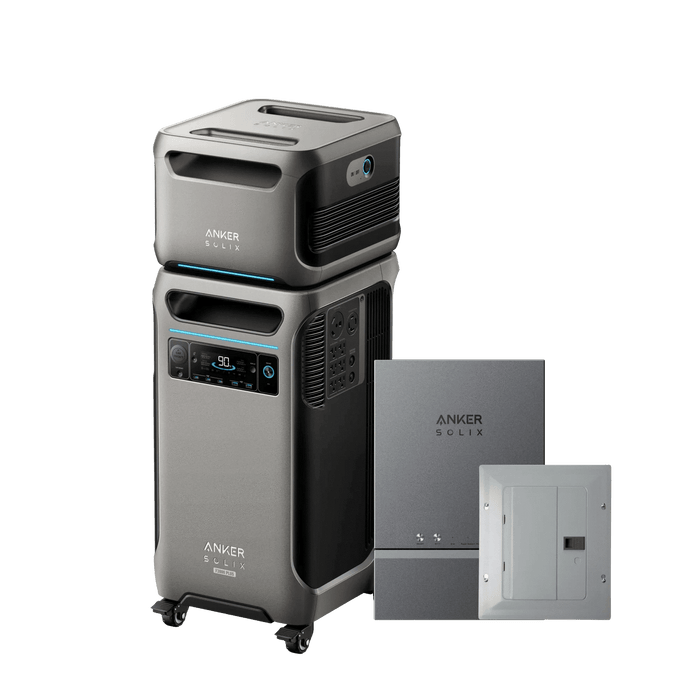

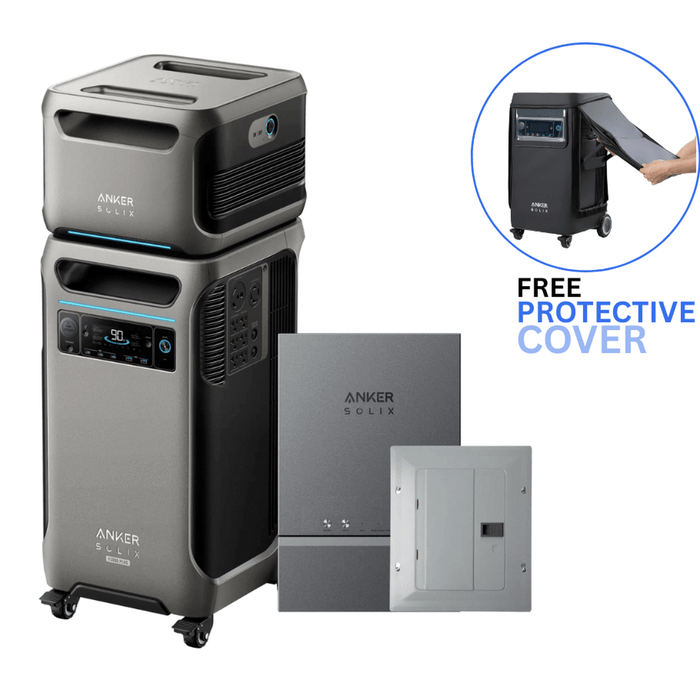

Anker Solix | F3800 Plus + Expansion Battery + Smart Home Power Kit with Free Protective Cover
Whole-Home Backup Power with Smart Control, 7.68kWh Capacity & 6,000W Output
Power your entire home with confidence using the Anker SOLIX F3800 Plus + Expansion Battery + Smart Home Power Kit with Free Protective Cover. Delivering a robust 7,680Wh capacity and 6,000W dual-voltage output (120V/240V), this all-in-one solution is ideal for complete energy independence, emergency backup, and EV charging. Designed to seamlessly integrate into your home’s electrical system, the Smart Home Power Kit enables automated switchover and intelligent energy management, so you're never left in the dark.
With 3,200W max solar input, EV-grade LFP batteries for 10+ years of use, and the convenience of app-based control, this expandable system brings powerful, eco-friendly performance right to your home. Plus, with a free protective cover, you're ready for indoor or outdoor deployment in any situation.
Key Benefits of the F3800 Plus + Expansion Battery + Smart Home Power Kit
-
Massive 7.68kWh Energy Storage: Run essential home appliances for extended periods with expandable battery support (up to 53.8kWh).
-
6,000W Dual-Voltage Output: Powers both 120V and 240V devices, including HVAC systems, ovens, well pumps, and more.
-
Smart Home Integration: Seamlessly connect to your home electrical panel with the Smart Home Power Kit for automated backup during outages.
-
High-Speed Solar Charging: Up to 3,200W MPPT solar input for fast, efficient recharging using clean energy.
-
EV & RV Ready: Charge electric vehicles and RVs directly through NEMA TT-30P and L14-30 ports.
-
Remote Monitoring & Control: Easily manage power usage, solar input, and battery levels via the Anker app (Wi-Fi/Bluetooth).
-
Durable & Portable: Built-in wheels and a retractable handle ensure mobility, while the included protective cover provides outdoor protection.
-
Long-Lasting LFP Battery: Enjoy 10+ years of use (3,000+ cycles) backed by a 5-year warranty.
Product Highlights
-
Anker SOLIX F3800 Plus: 3,840Wh capacity, 6,000W output (120V/240V)
-
Expansion Battery: Adds 3,840Wh for a total of 7,680Wh
-
Smart Home Power Kit: Seamless home integration and smart control
-
3,200W solar input via dual MPPT (11–165V)
-
240V gas generator bypass compatibility (6,000W)
-
EV-grade LiFePO₄ batteries with advanced safety and longevity
-
Free protective cover included for extra durability and portability
What's Included
Anker SOLIX F3800 Plus Portable Power Station
- F3800 Plus
- AC Charging Cable
- Solar Charging Cable x 2
Anker SOLIX BP3800 Expansion Battery
- BP3800 Expansion Battery
- Battery-to-Host Cable
- Important Information
Home Power Panel Kit
- Anker SOLIX Home Power Panel
- Backplate Bracket (×2)
- Wall Bracket (×2)
- F3800 to Home Power Panel Cable (1.5m) (×1)
- 200A Current Transformer (Model: XH-SCT-S24) (×2)
- 100A Current Transformer (Model: CTSA016-100A/100mA) (×1)
- M6*60 Expansion Bolt (Secures Wall Bracket to Concrete Wall) (×4)
- M6*50 Hexagonal Self-Tapping Screw (Secures Wall Bracket to Wooden Wall) (×4)
- M4*10 Cross Recessed Countersink Screw (×10)
- Positioning Card
- Installation Guide
- 12-Circuit Backup LoadCenter(×1)
- 100A Circuit Breaker (×1)
- 12-Circuit Backup Load Center Ground Bar Kit (×1)
Specification
Anker SOLIX F3800 Plus Portable Power Station
| Specification | Details |
|---|---|
| Capacity | 3,840Wh |
| Battery Chemistry | LFP (LiFePO₄), 3,000+ cycles |
| Expandable Capacity | Supports up to 6 × Expansion Batteries (3.84kWh each) |
| AC Input | 120V~ 15A Max (< 3 hrs) / 12A Max (continuous), 60Hz, L+N+PE |
| AC Input Power (Charging) | 1,800W Max |
| AC Input Power (Bypass Mode) | 1,440W Max |
| Solar Panel Input | 11–165V ⎓ 17A Max (1,600W Max Each) |
| Anker SOLIX Generator Port | 60V Max, 120A Max |
| Car Charger Output | 12V ⎓ 10A |
| HPP & Generator Adapter Port | 6,000W Max (AC Input) 6,000W Max (AC Output) 120V/240V, L1+L2+N+PE |
| AC Output Power (Total) | 6,000W Max |
| AC Output (Standard) | 120V~ 20A Max, 60Hz, 2,400W Max |
| AC Output (NEMA L14-30R) | 120V/240V~ 25A Max, 60Hz, 6,000W Max |
| USB-A Output | 5V ⎓ 2.4A (12W Max per port) |
| USB-C Output | 5V ⎓ 3A 9V ⎓ 3A 15V ⎓ 3A 20V ⎓ 3A 20V ⎓ 5A (100W Max per port) |
| Dimensions (L × W × H) | 27.6 × 15.3 × 15.6 in (including wheels) |
| Net Weight | 136.7 lbs |
| Warranty | 5-Year Warranty |
