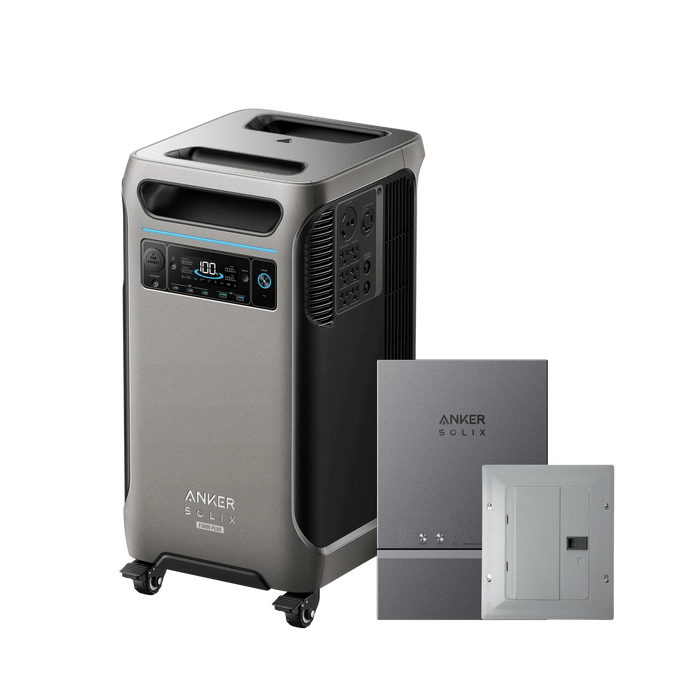

Anker Solix | F3800 Plus + Smart Home Power Kit with Free Protective Cover
Ultimate Whole-Home Backup Power Solution with 240V Support and Smart Panel Integration
Experience complete energy independence with the Anker SOLIX F3800 Plus + Smart Home Power Kit, a powerhouse designed for reliable home backup, off-grid living, and EV/RV charging. Delivering 3,840Wh of capacity and 6,000W output with 120V/240V dual-voltage support, this system ensures your home stays powered during outages—automatically.
The included Smart Home Power Kit integrates directly with your electrical panel, enabling seamless switchover to battery power during blackouts. Paired with 3,200W solar input, dual MPPT controllers, and app-enabled smart control, this setup redefines what backup energy should be: powerful, intelligent, and ready when you need it.
Key Benefits
-
Seamless Home Backup: Automatically switches to battery power via the Smart Home Power Kit, keeping your home powered without manual intervention.
-
High Power Output: 6,000W AC dual-voltage output (120V/240V) powers large appliances, HVAC, and critical home systems.
-
Expandable System: Start with 3.84kWh and scale up to 53.8kWh with additional batteries for whole-home energy storage.
-
Fast Solar Charging: Accepts 3,200W max solar input with wide 11–165V compatibility and dual MPPT tracking for rapid, efficient recharging.
-
EV & RV Ready: Supports NEMA TT-30P and L14-30 connections for direct EV and RV charging.
-
Smart Monitoring: Control and monitor performance via the Anker app (Wi-Fi/Bluetooth enabled).
-
Built for the Long Term: Uses advanced EV-grade LiFePO₄ batteries rated for 3,000+ cycles and backed by a 5-year warranty.
-

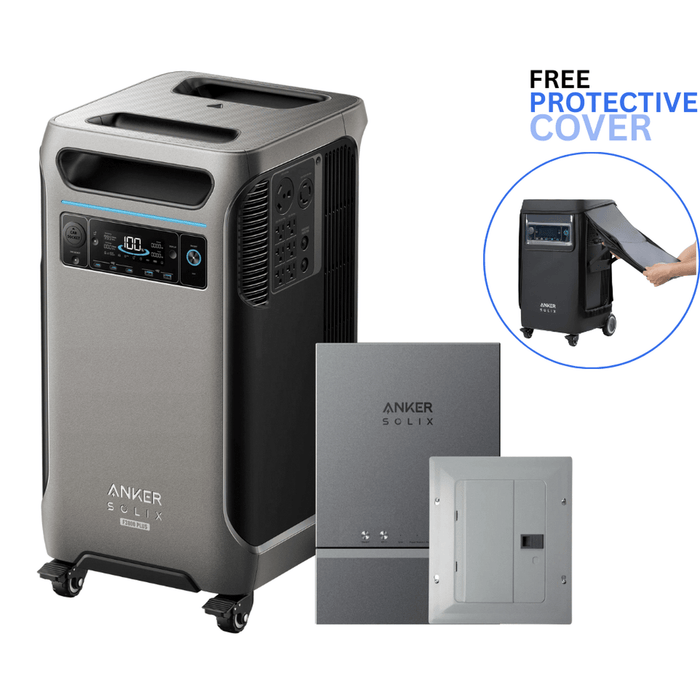

Free Protective Cover: Includes a rugged cover for safe transport, dust protection, and outdoor durability.
What's Included
Anker SOLIX F3800 Plus Portable Power Station
- F3800 Plus
- AC Charging Cable
- Solar Charging Cable x 2
Home Power Panel Kit
- Anker SOLIX Home Power Panel
- Backplate Bracket (×2)
- Wall Bracket (×2)
- F3800 to Home Power Panel Cable (1.5m) (×1)
- 200A Current Transformer (Model: XH-SCT-S24) (×2)
- 100A Current Transformer (Model: CTSA016-100A/100mA) (×1)
- M6*60 Expansion Bolt (Secures Wall Bracket to Concrete Wall) (×4)
- M6*50 Hexagonal Self-Tapping Screw (Secures Wall Bracket to Wooden Wall) (×4)
- M4*10 Cross Recessed Countersink Screw (×10)
- Positioning Card
- Installation Guide
- 12-Circuit Backup LoadCenter(×1)
- 100A Circuit Breaker (×1)
- 12-Circuit Backup Load Center Ground Bar Kit (×1)
Specification
Anker SOLIX F3800 Plus Portable Power Station
| Specification | Details |
|---|---|
| Capacity | 3,840Wh |
| Battery Chemistry | LFP (LiFePO₄), 3,000+ cycles |
| Expandable Capacity | Supports up to 6 × Expansion Batteries (3.84kWh each) |
| AC Input | 120V~ 15A Max (< 3 hrs) / 12A Max (continuous), 60Hz, L+N+PE |
| AC Input Power (Charging) | 1,800W Max |
| AC Input Power (Bypass Mode) | 1,440W Max |
| Solar Panel Input | 11–165V ⎓ 17A Max (1,600W Max Each) |
| Anker SOLIX Generator Port | 60V Max, 120A Max |
| Car Charger Output | 12V ⎓ 10A |
| HPP & Generator Adapter Port | 6,000W Max (AC Input) 6,000W Max (AC Output) 120V/240V, L1+L2+N+PE |
| AC Output Power (Total) | 6,000W Max |
| AC Output (Standard) | 120V~ 20A Max, 60Hz, 2,400W Max |
| AC Output (NEMA L14-30R) | 120V/240V~ 25A Max, 60Hz, 6,000W Max |
| USB-A Output | 5V ⎓ 2.4A (12W Max per port) |
| USB-C Output | 5V ⎓ 3A 9V ⎓ 3A 15V ⎓ 3A 20V ⎓ 3A 20V ⎓ 5A (100W Max per port) |
| Dimensions (L × W × H) | 27.6 × 15.3 × 15.6 in (including wheels) |
| Net Weight | 136.7 lbs |
| Warranty | 5-Year Warranty |
