Anker Solix | Power Dock for E10 Automatic Backup Kit | 10-30 kW Turbo Output | Smart Grid & Storm-Guard

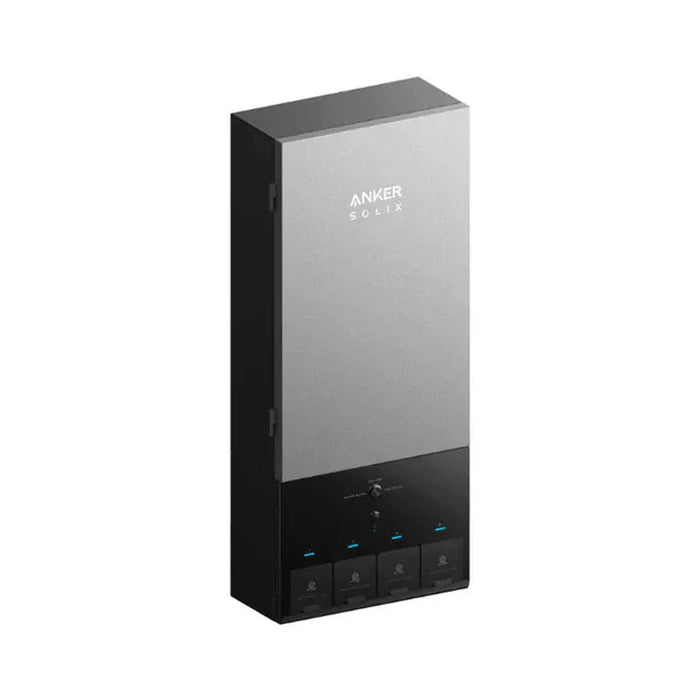

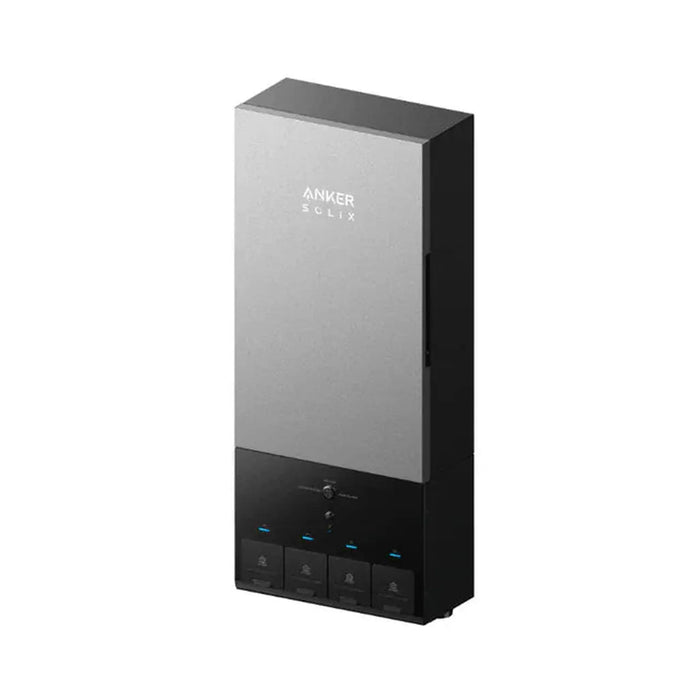

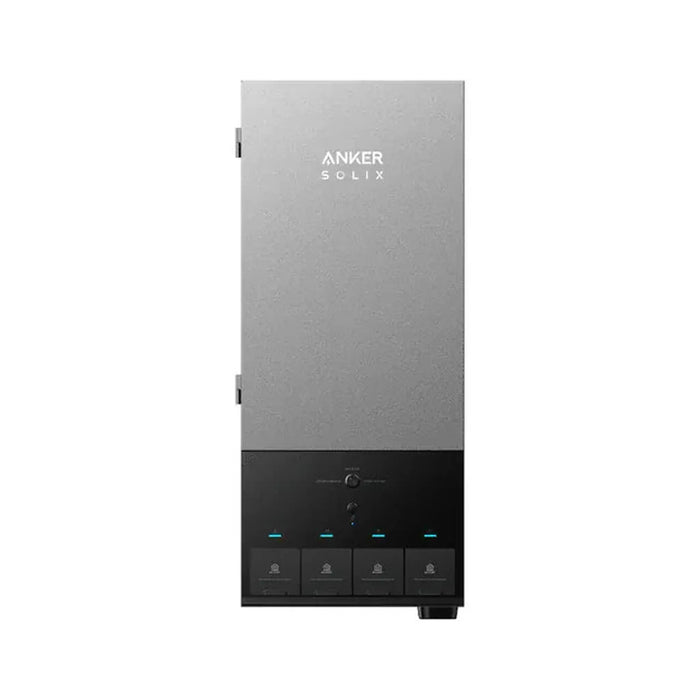

Anker Solix | Power Dock for E10 Automatic Backup Kit
Optimize your Anker SOLIX E10 system with the Power Dock Only—a smart, 200A energy gateway designed for full-home backup, seamless solar integration, and reliable generator support. Protect every circuit, reduce energy costs, and stay ready for storms with this rugged, weatherproof unit.
Key Features & Benefits
- Automatic Whole-Home Backup (200A Service Entrance) – Connects E10 for complete home coverage. Sub-20ms automatic switchover keeps devices and data safe. Storm Guard mode pre-charges to 100% ahead of severe weather.
- 12-Circuit Smart Prioritization – Manage up to 12 circuits via the app. Automatically protect essential loads during extended outages, maximizing backup efficiency.
- Cut Electricity Bills by Up to 80% – Self-Consumption and Time-of-Use modes store excess solar and off-peak grid power. Supports up to 15.3 kW AC solar for rooftop integration.
- Up to 24kW Generator Pass-Through – Works with any 240V standby or portable generator, delivering high-output pass-through and optimizing energy storage.
- Weatherproof & Outdoor Ready (NEMA 3R) – Sealed against rain, snow, ice, dust, and debris. Operates from -4°F to 131°F without additional shelter.

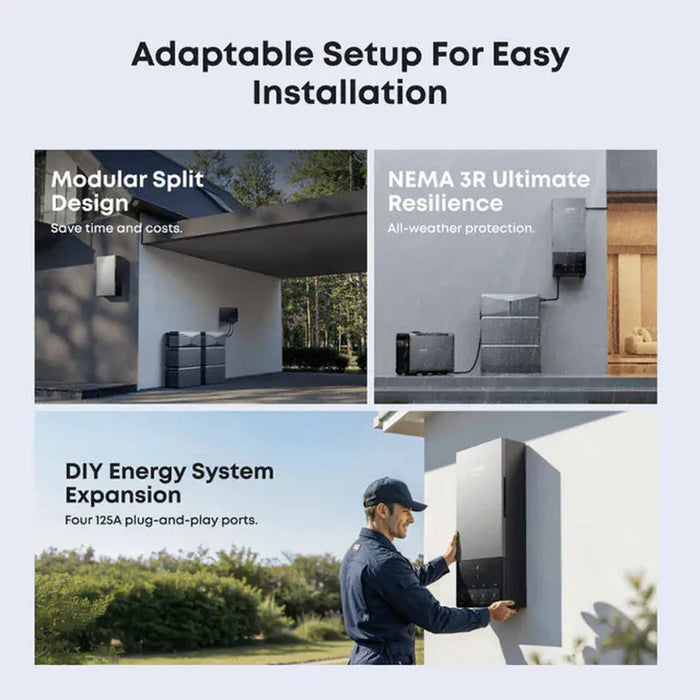

- Easy Plug-and-Play Installation – Pre-wired cables and quick-connect ports simplify setup. Wall or floor mountable. Professional support and licensed installation available.
What's included
- L1 current transformer ×1
- L2 current transformer ×1
- PV current transformer ×1
- 4×200 mm cable ties ×3
- Circuit breaker bracket ×1
- M3×8 Phillips pan-head combination screw ×2
- M4×12 Phillips pan-head combination screw ×1
- M6×50 imperial hex-head self-tapping screw ×8
Specification
| Product | |
| Product Name | Anker SOLIX Power Dock |
| Model | AX170 |
| Performance Specifications | |
| Rated Voltage | 120/240 VAC (Split Phase) |
| Rated Frequency | 60 Hz |
| Switchover Time (On-Grid to Off-Grid) | < 20 ms |
| Switchover Time (Off-Grid to On-Grid) | 0 ms |
| Grid Connection | |
| Current Rating | 200 A Maximum, 160 A Continuous |
| Subpanel Connection | |
| Current Rating | 200 A Maximum, 160 A Continuous |
| Plug&Play AC Port | |
| AC Ports | 4 |
| Continuous Current Rating per Port | 100 A |
| Continuous Current Rating Total 4 Ports | 100 A (Conneted To One Breaker) 160 A (Conneted To Two Breakers) |
| Integrated Circuits | |
| Circuits 1&2 Current Rating (Load Or Generator) | 100 A Maximum, 80 A Continuous |
| Circuits 7&8 Current Rating (Load Or AC Solar) | 80 A Maximum, 64 A Continuous |
| Circuits 3&4&5&6&9&10&11&12 Current Rating (Load) | 60 A Maximum, 48 A Continuous |
| Circuits For Batteries Current Rating | 125 A Maximum, 100 A Continuous |
| Others | |
| Connectivity | Wi-Fi, Bluetooth |
| Installation Option | Wall Mounting |
| Dimensions (W x H x D) | 36.1" × 15" × 7.1" (380 × 916 × 180 mm) |
| Weight | 60 Ibs (27.2 kg) |
| Enclosure Type | NEMA TYPE 3R |
| Operating Temperature | -4 °F to 131 °F (-20~55°C) |
| Warranty | 10 Years |
| Certification Information | ATS box：UL 67, UL 1741, UL 1741 CRD, UL 3141, UL 869A, CSA C22.2 No. 107.1-16, CSA C22.2 No. 29-15, 47 CFR Part 15, ICES-003, CP65,TSCA, PFAS Combiner box：UL 1741, CSA C22.2 No. 107.1:16, ANSI/CAN/UL 9540,47 CFR Part 15, Subpart B, 47 CFR Part 15,Subpart C 15.247, ICES-003, RSS247,CP65,TSCA, PFAS |
