Battle Born Batteries | 2000W Inverter
Battle Born Batteries | 2000W Inverter

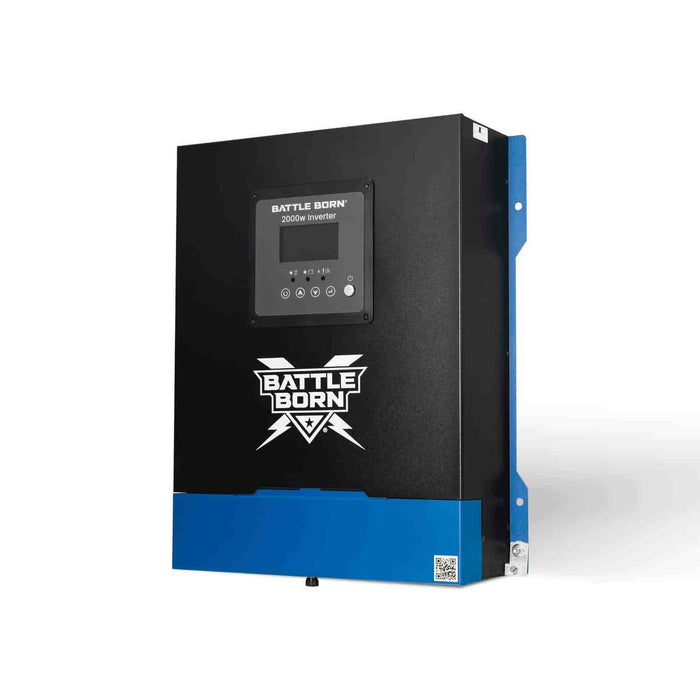

The Battle Born 2000W Inverter delivers clean and reliable AC power from your 12V battery system, perfect for RVs, marine applications, and off-grid setups. With pure sine wave output, it safely powers sensitive electronics, appliances, and tools while offering durable, compact, and maintenance-free performance.
KEY FEATURES

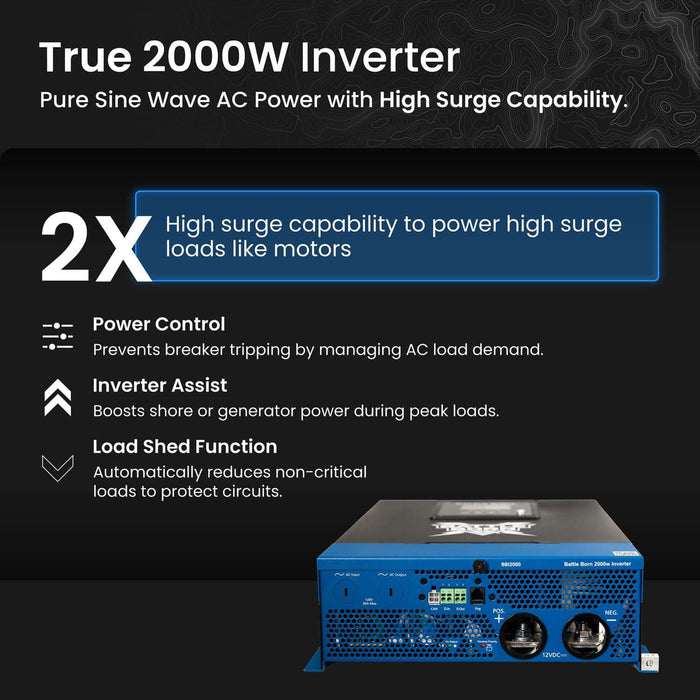

- 2000W Pure Sine Wave AC Power with High Surge Capability: Pure Sine Wave AC power just like the utility grid power to power any kind of AC loads. 2X High Surge capability to power high surge loads like motors.
- Power Control: The Battle Born 2000W Inverter will reduce the charger current to support AC loads to mitigate nuisance AC input breaker tripping, thus preventing the generator or grid from being overloaded.
- Inverter Assist: With Inverter Assist, the Battle Born 2000W Inverter will switch on to support temporary AC load peak power demand which is often required only for a limited period, and will compensate insufficient generator, shore, or grid power with power from the battery. When the load reduces, the spare power is used to recharge the battery.
-
Load Shed Function: Besides Power Control to optimize the use of available AC shore power, the Battle Born 2000W Inverter is equipped with a load shed feature to shed non-critical loads on AC Out 2 with the use of a digital output control signal. This can help to reduce nuisance breaker tripping during temporary high load surge periods.
- Note: An external relay or circuit breaker controlled via the digital output must be used in order to employ this feature.
- Integrated Automatic Transfer Switch: Seamlessly switches between shore power and battery power without interruption. This simplifies installation, eliminates the need for separate wiring for inverter and shore power circuits, and prevents unnecessary battery cycling. The transfer occurs in under 20 milliseconds, fast enough to keep sensitive electronics like TVs uninterrupted.
- Two AC Outputs: This inverter features a second AC output (labeled L2), which functions as a dedicated passthrough circuit. This output is only active when AC input power is available, ensuring efficient power management.
- Compatibility:
Specifications
| Category | Details |
|---|---|
| Output Voltage | 120 VAC |
| Continuous Power | 2000 W @ 40°C (derated above 104°F / 40°C) |
| Continuous Current | 16.7 A |
| Surge Power (5 sec) | 4000 W |
| Frequency | 60 Hz (or 50 Hz selectable) |
| GFCI Protection | Customer-provided |
| Wave Shape | Pure Sine Wave |
| Peak Efficiency | 91% |
| Full Load Efficiency | >86% |
| DC Input Nominal Voltage | 12.0 VDC |
| DC Input Operating Voltage Range | LBCO voltage to 18.0 VDC |
| Maximum Non-Operating Voltage (DC) | 25.2 VDC |
| Nominal DC Current at Full Load | 192 ADC (Two AC Outputs) |
| Transfer Relay Rating | 30A (24A continuous) |
| Cooling | Fan (activated by high internal temp or high AC output) |
| Transfer Time – Shore to Inverter | <20 ms |
| Transfer Time – Inverter to Shore | <20 ms (20-second delay) |
| Transfer Voltage – Shore to Inverter | <85 V or >140 V |
| Transfer Voltage – Inverter to Shore | <135 V or >90 V |
| Operating Temperature Range | -4 – 140°F (-20 – 60°C), derated above 104°F / 40°C |
| Storage Temperature Range | -40 – 203°F (-40 – 95°C) |
| Humidity (Operation / Storage) | 5–95% RH, non-condensing |
