Big Battery | 12V 4X HUSKY 2 KIT
12V 4X HUSKY 2 KIT – 20.48kWh LiFePO4 Battery System for RVs, Marine & Off-Grid Power
Unleash next-level power with the 12V 4X HUSKY 2 KIT—BigBattery’s most advanced 12V LiFePO4 battery solution, delivering a massive 20.48kWh of reliable, long-lasting energy. Designed for RVs, camper vans, marine vessels, trolling motors, and off-grid solar systems, this kit provides unmatched capacity, performance, and safety.
Engineered for Heavy-Duty Applications
Each battery in the 12V 4X HUSKY 2 KIT features Tier 1 lithium iron phosphate (LiFePO4) cells known for their exceptional cycle life, thermal stability, and energy density. Built with a rugged IP65-rated enclosure, this kit stands strong against the elements—perfect for mobile, outdoor, and marine environments.
Whether you're facing freezing temperatures or blazing heat, the self-heating system ensures your power stays consistent, while the auto-balancing BMS, CANBus, and RS485 communication protocols provide intelligent monitoring and safety management across all units.
Key Specifications:
-
Energy Storage: 20.48kWh (4 x 5.12kWh HUSKY 2 Batteries)
-
System Voltage: 12V
-
Battery Chemistry: Tier 1 LiFePO4
-
Advanced BMS: Auto-balancing, over/under-voltage, temperature & short circuit protection
-
Communications: RS485 & CANBus Compatible
-
Self-Heating Function: Reliable winter performance
-
Casing: Industrial-grade IP65 enclosure
-
Installation: Plug-and-play with all cables included
-
Maintenance: 100% maintenance-free
Perfect For:
-
RV and Camper Van Power Systems
-
Marine Applications (Yachts, Trolling Motors, Sailboats)
-
12V Off-Grid Solar Battery Banks
-
Emergency Backup and Mobile Power Stations
What's Included

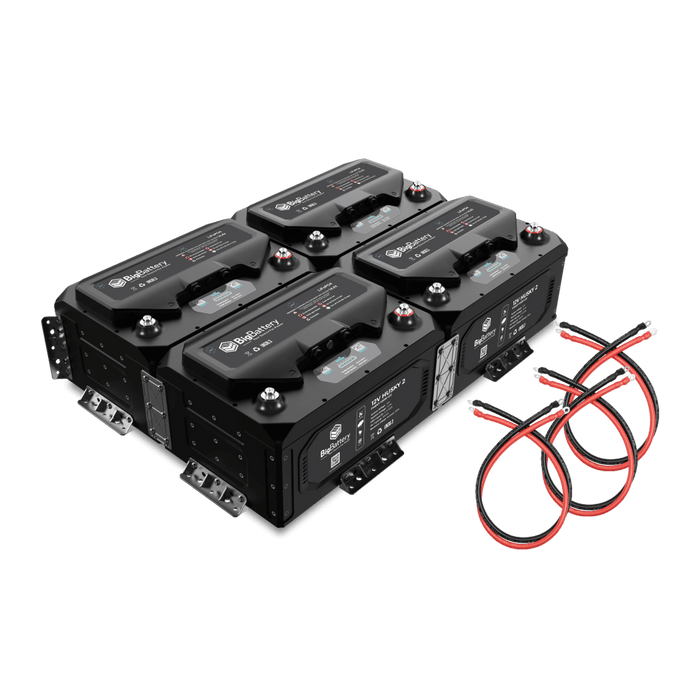

4 × 12V HUSKY 2 - LiFePO4 - 400Ah - 5.12kWh

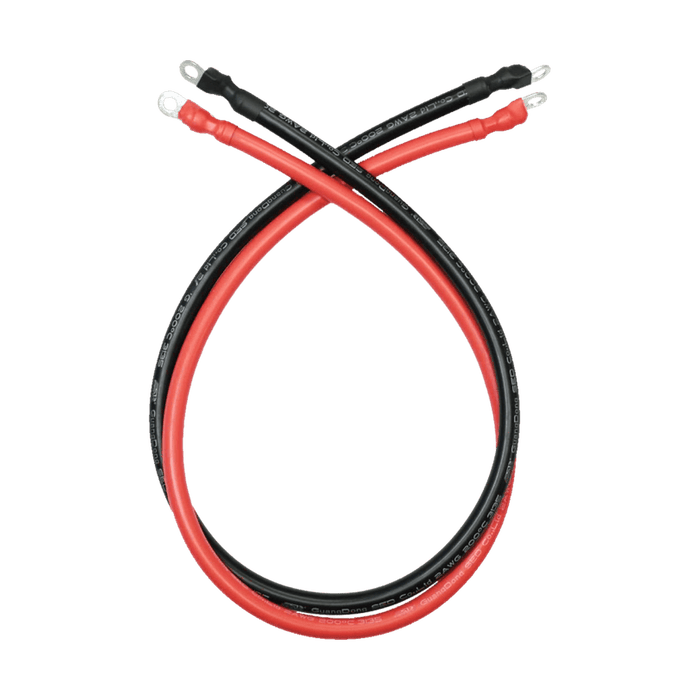

3 × 4AWG (Black and Red) 21 inches Ring to Ring Terminal Cable
Specs and Downloads

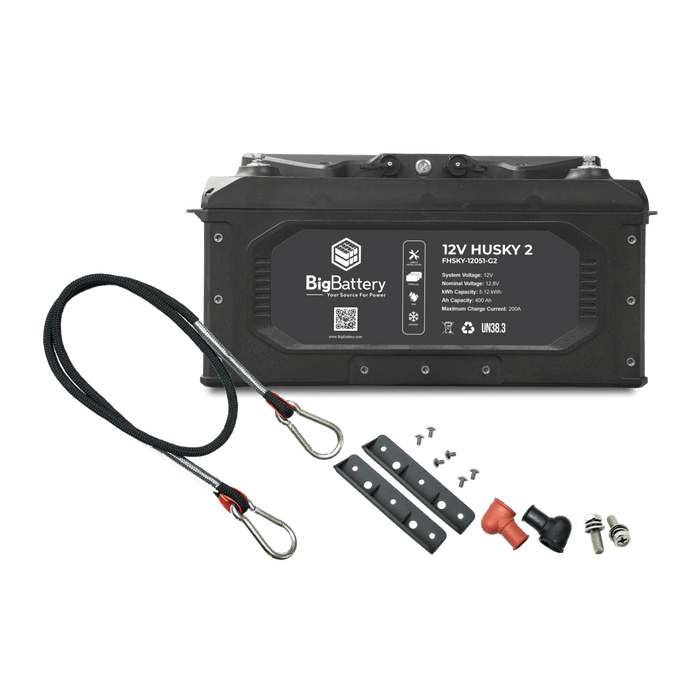

Single Battery Tech Specs
| SKU: | FHSKY-12051-G2 |
| System Voltage: | 12V |
| Nominal Voltage: | 12.8V |
| Chemistry: | LiFePO4 |
| kWh Capacity: | 5.12kWh |
| Ah Capacity: | 400Ah |
| Charging Voltage Range: | 13.9V - 14V |
| Max Charge Voltage: | 14.4V |
| Operating Voltage Range: | 12V - 14.4V |
| Suggested Low Voltage Cutoff: | 12V - 12.7V |
| BMS Cutoff Range: | 10.5V - 11.75V |
| Cell Configuration: | 4S |
| Max Continuous Discharge Current: | 300A |
| Max Continuous Power: | 5120W |
| Max Discharge Peak Current: | 350A (Max 5 seconds) |
| Max Charge Current: | 200A |
| Charge Temperature Range: | -4°F - 113°F (-20°C - 45°C) |
| Discharge Temperature Range: | -4°F - 131°F (-20°C - 55°C) |
| Optimal Discharge Temperature Range: | 59°F - 95°F (15°C - 35°C) |
| Storage Temperature Range: | -4°F - 113°F (-20°C - 45°C) (Max 6 months) |
| Weight: | 95 lb (43.1 kg) |
| Depth: | 12.6 in (320 mm) |
| Width: | 18.1 in (460 mm) |
| Height: | 9.8 in (249 mm) |
| Max Connections: | Up to (16) Parallel |
| Protection Rating: | IP65 / NEMA 4X |
| Communications: | CANBus / RS485 |
| Self-Heating: | Yes |
