Big Battery | 24V 4X HUSKY 2 KIT with Charger
Overview
SECOND GENERATION POWER STORAGE IS HERE! The 24V 20.48kWh 4x HUSKY 2 Kit from BigBattery delivers unmatched reliability and efficiency for RVs and vans.
The HUSKY 2 is our most powerful 24V solution yet, designed to fuel your adventures no matter where they take you. With Tier 1 LFP cells, a wide operating range, and robust temperature tolerance, this battery sets a new standard in lithium storage.
Loaded with cutting-edge features, the HUSKY 2 comes in an IP65-rated case, with an advanced BMS for automatic cell balancing and a self-heating function for reliable performance in cold conditions. CANBus and RS485 protocols keep you connected, and the 350A external capacity meter provides real-time power monitoring.
The HUSKY 2 Kit is a plug-and-play solution for your vehicle, complete with cables and a 30A IP65-rated charger for quick installation. With the HUSKY 2, you’re always ready to hit the road.
Shop the all-new 24V 4x HUSKY 2 Kit today!

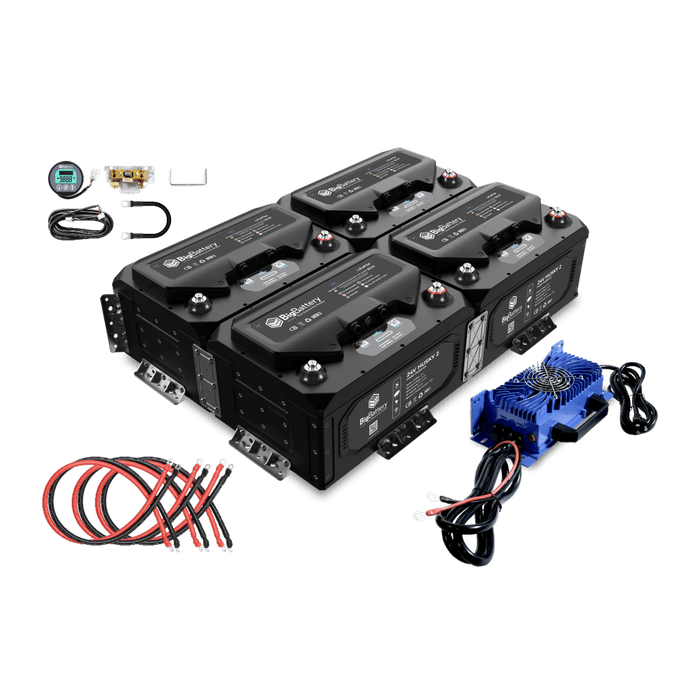

What's Included

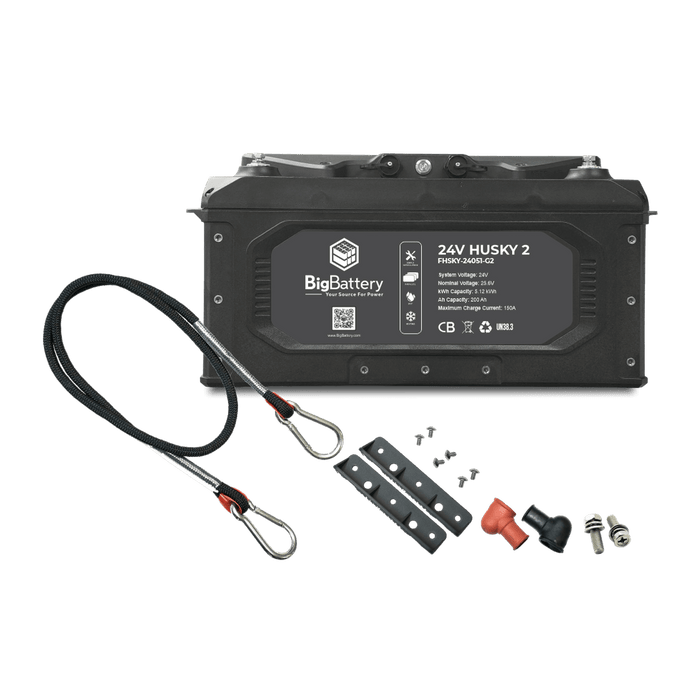

4 × 24V HUSKY 2 - LiFePO4 - 200Ah - 5.12kWh

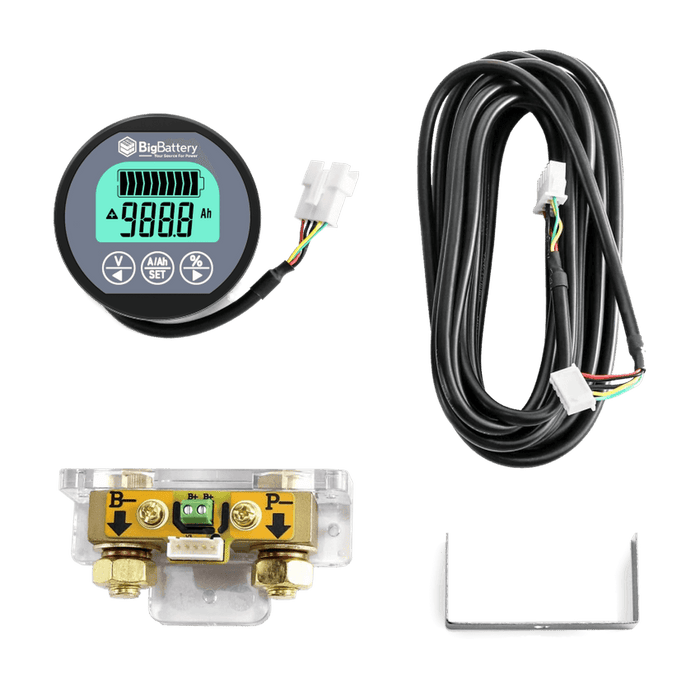

1 × 350A Battery Capacity Meter

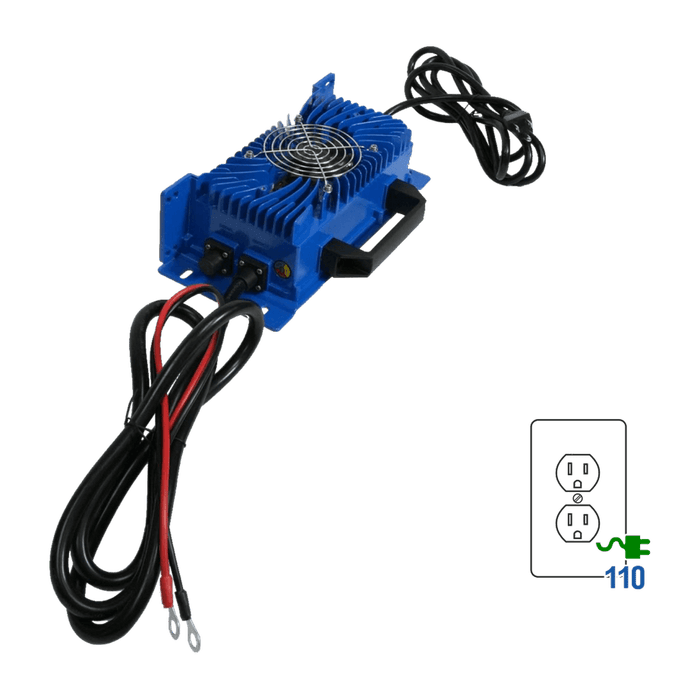

1 × 24V 30A Charger (28.8V DC) - Ring Terminals

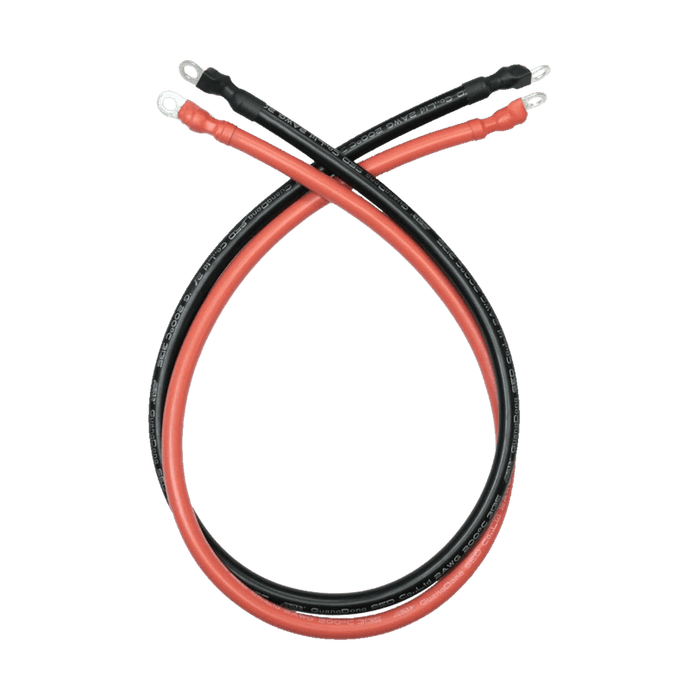

3 × 4AWG (Black and Red) 21 inches Ring to Ring Terminal Cable

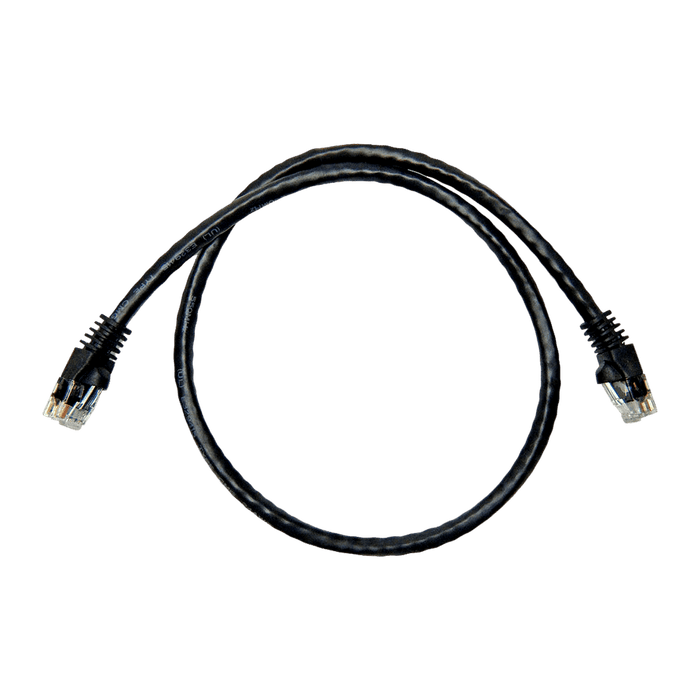

3 × Parallel Comm Cable
Specs and Downloads
Single Battery Tech Specs
| SKU: | FHSKY-24051-G2 |
| System Voltage: | 24V |
| Nominal Voltage: | 25.6V |
| Chemistry: | LiFePO4 |
| kWh Capacity: | 5.12kWh |
| Ah Capacity: | 200Ah |
| Charging Voltage Range: | 27.8 - 28V |
| Max Charge Voltage: | 29.2V |
| Operating Voltage Range: | 24 – 28.8V |
| Suggested Low Voltage Cutoff: | 24 – 25.4V |
| BMS Cutoff Range: | 21 – 23.5V |
| Cell Configuration: | 8S |
| Max Continuous Discharge Current: | 200A |
| Max Continuous Power: | 5120W |
| Max Discharge Peak Current: | 300A (Max 5 seconds) |
| Max Charge Current: | 150A |
| Charge Temperature Range: | -4°F - 113°F (-20°C - 45°C) |
| Discharge Temperature Range: | -4°F - 131°F (-20°C - 55°C) |
| Optimal Discharge Temperature Range: | 59°F - 95°F (15°C - 35°C) |
| Storage Temperature Range: | -4°F - 113°F (-20°C - 45°C) (Max 6 months) |
| Weight: | 95 lb (43.1 kg) |
| Depth: | 12.6 in (320 mm) |
| Width: | 18.1 in (460 mm) |
| Height: | 9.8 in (249 mm) |
| Max Connections: | Up to (16) Parallel |
| Protection Rating: | IP65 / NEMA 4X |
| Communications: | CANBus / RS485 |
| Self-Heating: | Yes |
