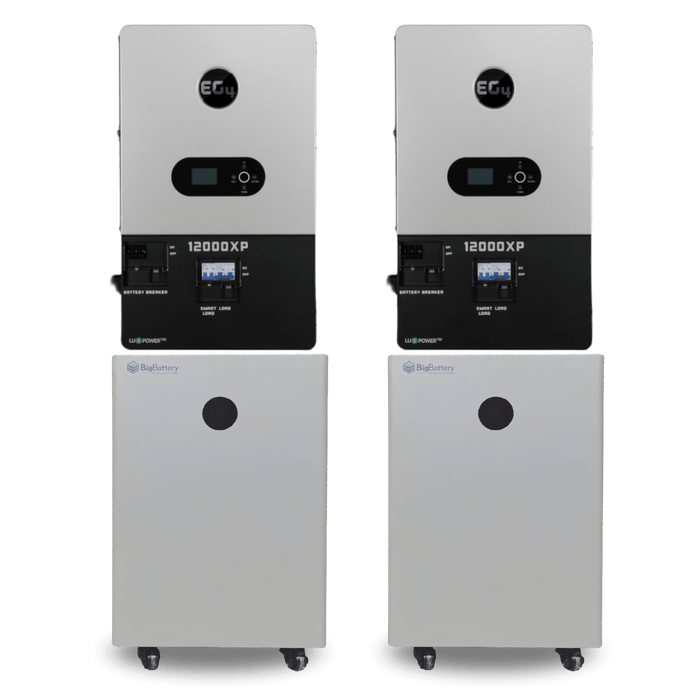

BigBattery | 2× NEXUS 48V LiFePO4 Batteries + 2× EG4 12000XP Inverters
Description:
Experience unmatched power, performance, and reliability with the BigBattery 2× NEXUS + 2× EG4 12000XP system. This advanced energy storage and inverter bundle delivers exceptional capacity, efficiency, and scalability—perfect for home backup, solar integration, or off-grid applications. Designed for durability and long-lasting operation, it ensures stable, high-output power for residential and commercial energy needs.
KEY FEATURES
- High-capacity power solution – Combines two NEXUS 48V 14.3kWh LiFePO4 batteries for massive energy storage.
- Powerful dual inverter setup – Includes two EG4 12000XP hybrid inverters offering 12kW continuous power output.
- Advanced battery technology – LiFePO4 chemistry ensures superior safety, cycle life, and energy density.
- Flexible energy integration – Ideal for solar systems, off-grid power setups, or whole-home backup.
- Seamless scalability – Expand your system with additional batteries or inverters as your energy demand grows.
- Smart monitoring and control – Inverters feature built-in Wi-Fi and app-based system management.
- Reliable and efficient operation – Pure sine wave output ensures clean power for sensitive electronics and appliances.
- Long lifespan – Over 4000+ charge cycles for years of dependable use.
Specifications
AC INPUT
| Nominal AC Voltage: | 120/240VAC | 120/208VAC (L1/L2/N required) |
| Frequency (Grid | Generator): | 60 Hz (Default) | 50 Hz (Configurable) |
| Max. Continuous AC Current (Grid | Generator): | 100A @ 240VAC | 62.5A @ 240VAC |
| Max. AC Input Power: | 24000W |
| AC Bypass (Grid | Generator): | 100A | 90A |
| Recommended Generator Capacity: | 6000W – 15000W |
AC OUTPUT
| Output Voltage: | 120/240VAC | 208VAC |
| Output Frequency: | 60 Hz (Default) | 50 Hz (Configurable) |
| Max. Continuous Output Current: | 50A @ 240VAC | 57.7A @ 208VAC |
| Nominal Output Power (without PV): | 12000W @ 240V | 12000W @ 208V |
| Nominal Output Power (with PV): | 12000W @ 240V | 12000W @ 208V |
| Max. Continuous Wattage: | 12000W (L1/L2) | 6000W (L1-N/L2-N) |
| Surge Capacity: | 18000W (5 sec) | 15000W (10 sec) |
| Power Factor: | 0.99 |
| Total Harmonic Distortion: | <3% |
| Switching Time: | <10 ms (Single) | <20 ms (Parallel) |
PV INPUT
| No. of MPPTs (Inputs per MPPT): | 2 (2) |
| Max. Input Current: | 35A / 35A |
| Max. Short Circuit Input Current: | 44A / 44A |
| DC Input Voltage Range: | 100 – 480VDC |
| Min. Start Up Voltage: | 100VDC |
| MPPT Operating Voltage Range: | 120 – 385VDC |
| Nominal MPPT Voltage: | 320VDC |
| Max. Utilized PV Power: | 24000W (12000W per MPPT) |
| Max. Recommended PV Input: | 28000W (14000W per MPPT) |
| Max. Efficiency: | 99% (MPPT) | 93.5% (PV to Loads) | 92.8% (PV to Battery) | 92.5% (AC to Battery) | 90.2% (Battery to Loads) |
| Idle Consumption (Standby Mode): | <70W |
BATTERY
| Nominal Voltage: | 48VDC |
| Battery Voltage Range: | 46.4 – 60VDC |
| Max. Charge / Discharge Current: | 250A |
| Max. Charge / Discharge Power: | 12000W |
| DC Cut-Off Voltage: | 59VDC |
| Recommended Battery Capacity per Inverter: | >400Ah |
OPERATING ENVIRONMENT
| Max. Parallel Connections: | 6 |
| Protection Rating: | IP20 |
| Communication Interface: | RS485 / CANBus / WiFi |
| Operating Temperature (Full Load): | 32ºF – 113ºF (0ºC – 45ºC) |
| Storage Temperature: | 5ºF – 140ºF (-15ºC – 60ºC) |
| Altitude: | <6,561 ft (2000 m) |
| Relative Humidity (Non-Condensing): | 5 – 95% |
| Typical Noise Emission: | <60 dB |
| Cooling Method: | Fan |
DIMENSIONS
| Weight: | 104.7 lbs (47.5 kg) |
| Depth: | 5.9 in (150 mm) |
| Width: | 20.9 in (530 mm) |
| Height: | 34.25 in (870 mm) |
