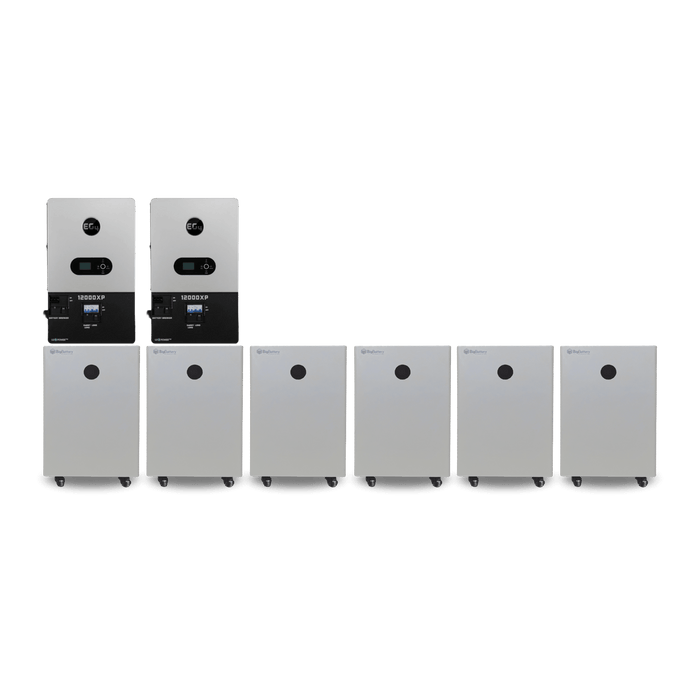

BigBattery | 6× NEXUS 48V LiFePO4 Batteries + 2× EG4 12000XP Inverters
Take your energy independence to the next level with the BigBattery 6× NEXUS + 2× EG4 12000XP system. Designed for large-scale residential, commercial, and off-grid power applications, this powerhouse setup delivers unmatched capacity, performance, and reliability. With a total of 85.8kWh of LiFePO4 storage and dual 12kW hybrid inverters, it ensures uninterrupted, efficient, and sustainable power for your entire energy system.
KEY FEATURES
- Massive 85.8kWh energy capacity – Six 48V 14.3kWh NEXUS LiFePO4 batteries deliver robust, long-lasting storage.
- Dual 12kW hybrid inverters – Two EG4 12000XP units provide a total of 24kW continuous output power.
- Advanced LiFePO4 chemistry – Offers exceptional safety, thermal stability, and over 4000+ deep cycles.
- Whole-home and business backup – Powers heavy appliances, HVAC systems, and critical loads with ease.
- Solar-ready performance – Integrates seamlessly with solar arrays for complete off-grid functionality.
- Smart control and monitoring – Built-in Wi-Fi, RS485, and app connectivity for remote system management.
- Pure sine wave output – Ensures clean, stable power for sensitive electronics and devices.
- High efficiency operation – Engineered for consistent, reliable performance with minimal energy loss.
- Expandable and scalable – Add more batteries or inverters to meet future energy demands.
Specifications
AC INPUT
| Nominal AC Voltage: | 120/240VAC | 120/208VAC (L1/L2/N required) |
| Frequency (Grid | Generator): | 60 Hz (Default) | 50 Hz (Configurable) |
| Max. Continuous AC Current (Grid | Generator): | 100A @ 240VAC | 62.5A @ 240VAC |
| Max. AC Input Power: | 24000W |
| AC Bypass (Grid | Generator): | 100A | 90A |
| Recommended Generator Capacity: | 6000W – 15000W |
AC OUTPUT
| Output Voltage: | 120/240VAC | 208VAC |
| Output Frequency: | 60 Hz (Default) | 50 Hz (Configurable) |
| Max. Continuous Output Current: | 50A @ 240VAC | 57.7A @ 208VAC |
| Nominal Output Power (without PV): | 12000W @ 240V | 12000W @ 208V |
| Nominal Output Power (with PV): | 12000W @ 240V | 12000W @ 208V |
| Max. Continuous Wattage: | 12000W (L1/L2) | 6000W (L1-N/L2-N) |
| Surge Capacity: | 18000W (5 sec) | 15000W (10 sec) |
| Power Factor: | 0.99 |
| Total Harmonic Distortion: | <3% |
| Switching Time: | <10 ms (Single) | <20 ms (Parallel) |
PV INPUT
| No. of MPPTs (Inputs per MPPT): | 2 (2) |
| Max. Input Current: | 35A / 35A |
| Max. Short Circuit Input Current: | 44A / 44A |
| DC Input Voltage Range: | 100 – 480VDC |
| Min. Start Up Voltage: | 100VDC |
| MPPT Operating Voltage Range: | 120 – 385VDC |
| Nominal MPPT Voltage: | 320VDC |
| Max. Utilized PV Power: | 24000W (12000W per MPPT) |
| Max. Recommended PV Input: | 28000W (14000W per MPPT) |
| Max. Efficiency: | 99% (MPPT) | 93.5% (PV to Loads) | 92.8% (PV to Battery) | 92.5% (AC to Battery) | 90.2% (Battery to Loads) |
| Idle Consumption (Standby Mode): | <70W |
BATTERY
| Nominal Voltage: | 48VDC |
| Battery Voltage Range: | 46.4 – 60VDC |
| Max. Charge / Discharge Current: | 250A |
| Max. Charge / Discharge Power: | 12000W |
| DC Cut-Off Voltage: | 59VDC |
| Recommended Battery Capacity per Inverter: | >400Ah |
OPERATING ENVIRONMENT
| Max. Parallel Connections: | 6 |
| Protection Rating: | IP20 |
| Communication Interface: | RS485 / CANBus / WiFi |
| Operating Temperature (Full Load): | 32ºF – 113ºF (0ºC – 45ºC) |
| Storage Temperature: | 5ºF – 140ºF (-15ºC – 60ºC) |
| Altitude: | <6,561 ft (2000 m) |
| Relative Humidity (Non-Condensing): | 5 – 95% |
| Typical Noise Emission: | <60 dB |
| Cooling Method: | Fan |
DIMENSIONS
| Weight: | 104.7 lbs (47.5 kg) |
| Depth: | 5.9 in (150 mm) |
| Width: | 20.9 in (530 mm) |
| Height: | 34.25 in (870 mm) |
