Big Battery | 72V 2X RAPTOR 2 KIT
Overview
2ND GENERATION POWER IS HERE!
BigBattery’s 72V RAPTOR 2 Kit is the ultimate solution for powering high-voltage golf carts, transport vehicles, and industrial equipment. This kit includes everything you need for a hassle-free installation, including a weatherproof charger, battery capacity meter, busbar, and terminal cables. The RAPTOR 2 delivers 7.68kWh of capacity in a durable, energy-efficient design.
The RAPTOR 2 prioritizes safety, durability, and visibility. Equipped with Tier 1 LFP cells, the safest lithium chemistry, and a cutting-edge BMS with automatic cell balancing, it’s built for long-lasting performance. The entire system is housed in an IP65-rated, vibration-resistant casing, designed to handle tough environments.
Stay informed with an external battery capacity meter and RS485 communication protocols, providing real-time updates on your battery’s status.
Outfit your vehicle or equipment with the RAPTOR 2 Kit and experience powerful, energy-efficient lithium performance wherever you go.

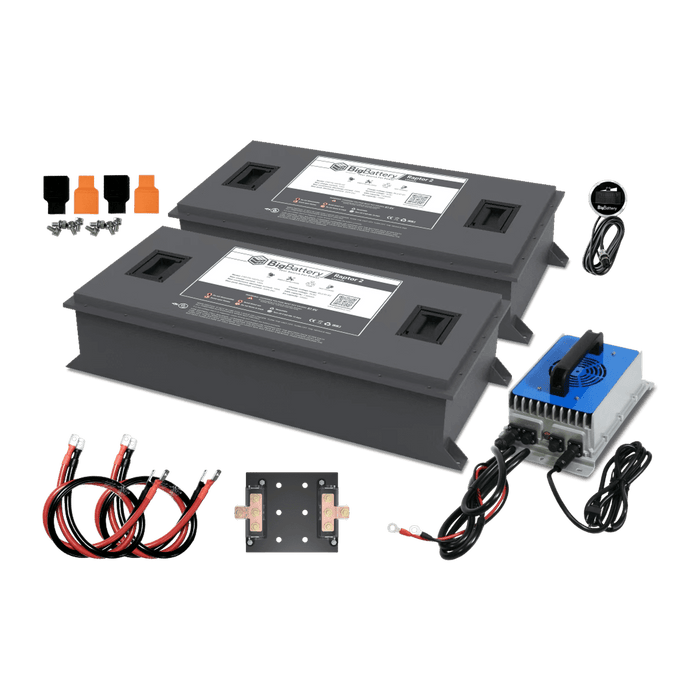

What's Included
2 × 72V RAPTOR 2 - 7.68kWh LiFePO4

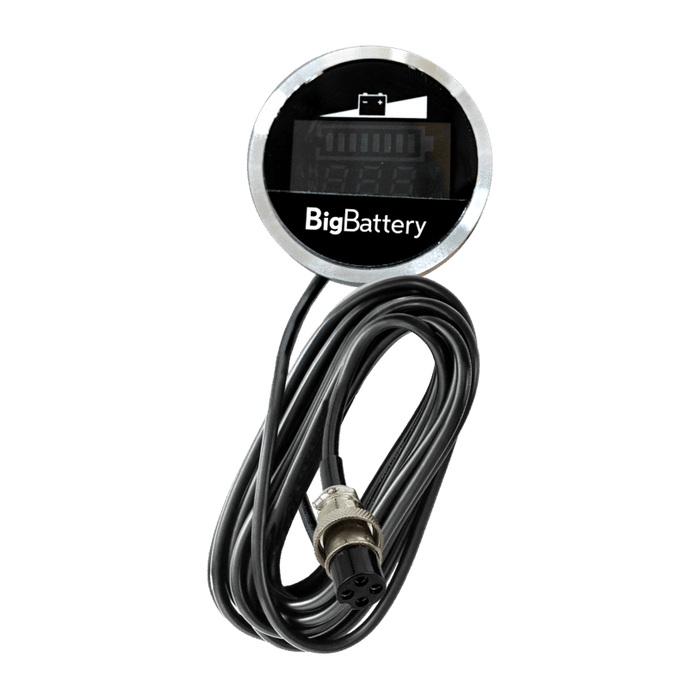

1 × 36V and 72V Raptor 2 Battery Capacity Meter

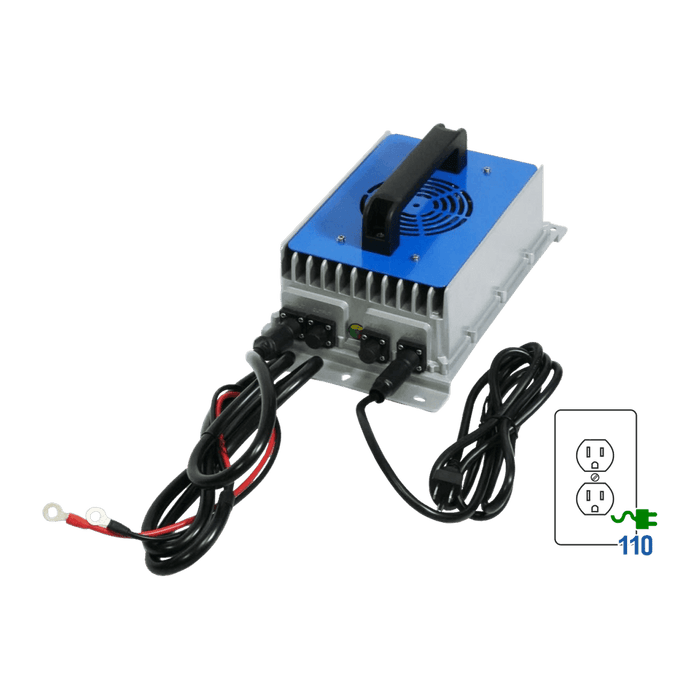

1 × 72V 15A Charger (86.4V DC) - Ring Terminals

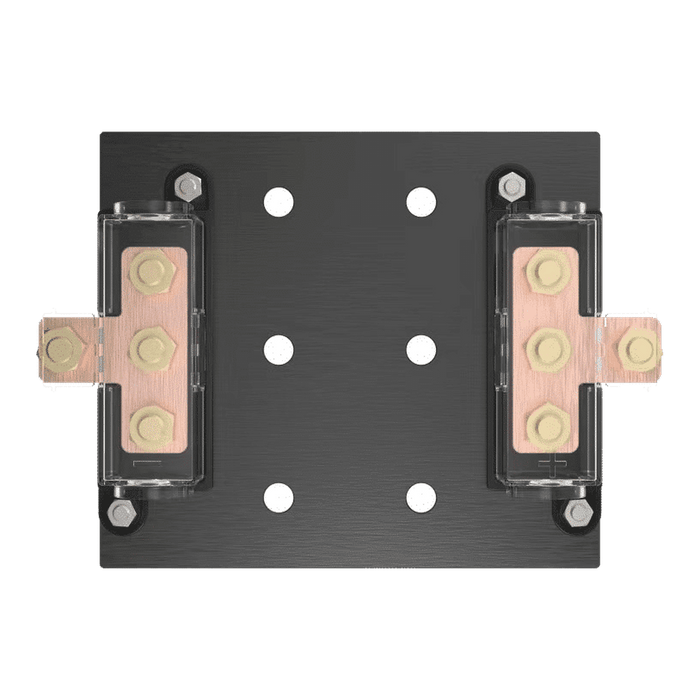

1 × Parallel Busbar
Specs and Downloads
Single Battery Tech Specs
| SKU: | FRPTR-72076-G2 |
| GTIN-12 (U.P.C.): | 850061252913 |
| System Voltage: | 72V |
| Nominal Voltage: | 76.8V |
| Chemistry: | LiFePO4 |
| kWh Capacity: | 7.68kWh |
| Ah Capacity: | 100Ah |
| Charging Voltage Range: | 85.2 - 87.6V |
| Max Charge Voltage: | 87.6V |
| Operating Voltage Range: | 72 - 87.6V |
| Suggested Low Voltage Cutoff: | 72 - 76.2V |
| BMS Cutoff Range: | 66V - 70.5V |
| Cell Configuration: | 24S |
| Max Continuous Discharge Current: | 150A |
| Max Continuous Power: | 7680W |
| Max Discharge Peak Current: | 300A (Max 5 seconds) |
| Max Charge Current: | 100A |
| Charge Temperature Range: | 32°F - 113°F (0°C - 45°C) |
| Discharge Temperature Range: | -4°F - 149°F (-20°C - 65°C) |
| Optimal Discharge Temperature Range: | 59°F - 95°F (15°C - 35°C) |
| Storage Temperature Range: | 23°F - 95°F (-5°C - 35°C) (Max 3 months, SoC >50%) |
| Weight: | 143 lb (64.9 kg) |
| Depth: | 15.3 in (389 mm) |
| Width: | 34.5 in (876 mm) |
| Height: | 7.4 in (188 mm) |
| Protection Rating: | IP65 / NEMA 4X |
| Communications: | RS485 |
