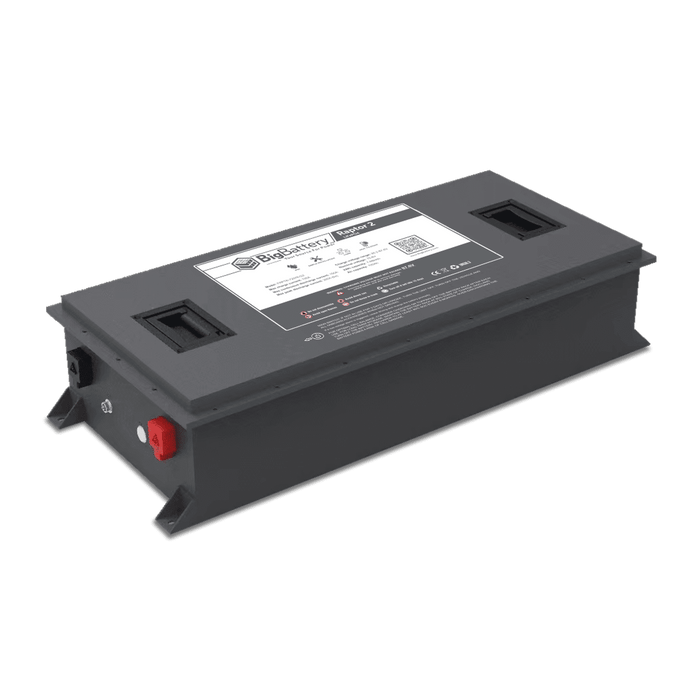

Big Battery | 72V RAPTOR 2 | 7.68kWh | LiFePO4
Overview
Introducing the latest in second-generation power: BigBattery’s groundbreaking 72V LiFePO4 RAPTOR 2. This powerhouse is set to revolutionize high-voltage applications for golf carts, transport vehicles, and industrial equipment, boasting an impressive 7.68 kWh capacity in a compact, durable form factor.
Safety, longevity, and visibility were paramount in the design of the RAPTOR 2. Featuring Tier 1 LFP cells, the safest chemistry available, and an advanced BMS with automatic cell-balancing, this battery ensures peace of mind during operation. Housed in an IP65-rated, vibration-resistant casing, it's built to endure rigorous work and play. But knowing your power is secure isn't enough; you should be able to see it in action. With an LED State of Charge Indicator and full RS485 communication protocols, monitoring your battery's status and performance is effortless.
Equip your equipment with the reliable power of the energy-dense RAPTOR 2 battery system and elevate your lithium performance whether you're navigating the neighborhood, campus, worksite, or warehouse. Explore the all-new 72V RAPTOR 2 today!
Specification
| System Voltage: | 72V |
| Nominal Voltage: | 76.8V |
| Chemistry: | LiFePO4 |
| kWh Capacity: | 7.68kWh |
| Ah Capacity: | 100Ah |
| Charging Voltage Range: | 85.2 - 87.6V |
| Max Charge Voltage: | 87.6V |
| Operating Voltage Range: | 72 - 87.6V |
| Suggested Low Voltage Cutoff: | 72 - 76.2V |
| BMS Cutoff Range: | 66V - 70.5V |
| Cell Configuration: | 24S |
| Max Continuous Discharge Current: | 150A |
| Max Continuous Power: | 7680W |
| Max Discharge Peak Current: | 300A (Max 5 seconds) |
| Max Charge Current: | 100A |
| Charge Temperature Range: | 32°F - 113°F (0°C - 45°C) |
| Discharge Temperature Range: | -4°F - 149°F (-20°C - 65°C) |
| Optimal Discharge Temperature Range: | 59°F - 95°F (15°C - 35°C) |
| Storage Temperature Range: | 23°F - 95°F (-5°C - 35°C) (Max 3 months, SoC >50%) |
| Weight: | 143 lb (64.9 kg) |
| Depth: | 15.4 in (391 mm) |
| Width: | 34.5 in (876 mm) |
| Height: | 7.4 in (188 mm) |
| Protection Rating: | IP65 |
| Communications: | RS485 |
