Big Battery | EG4 Chargeverter Plus
EG4 | Chargeverter Plus

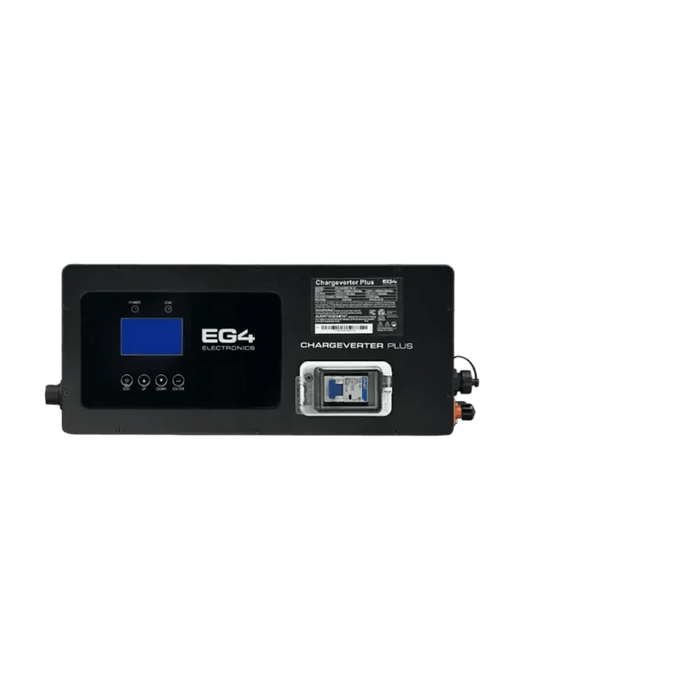

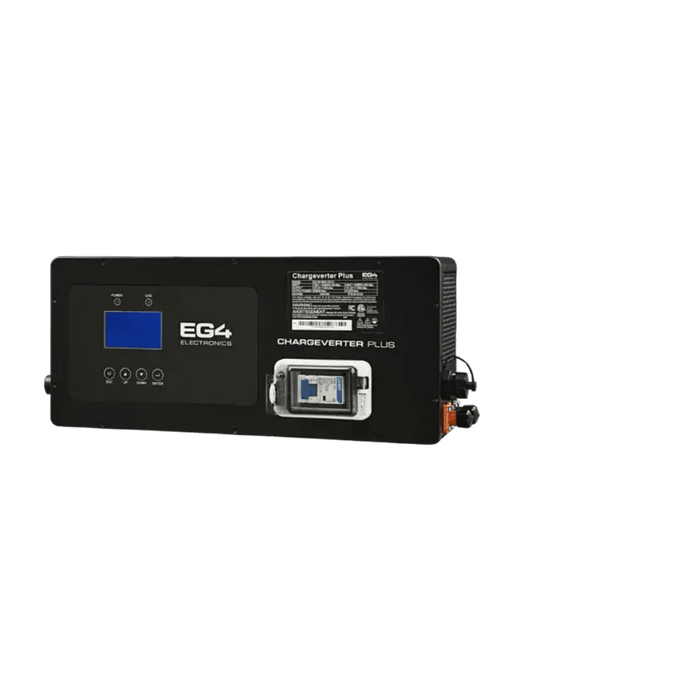

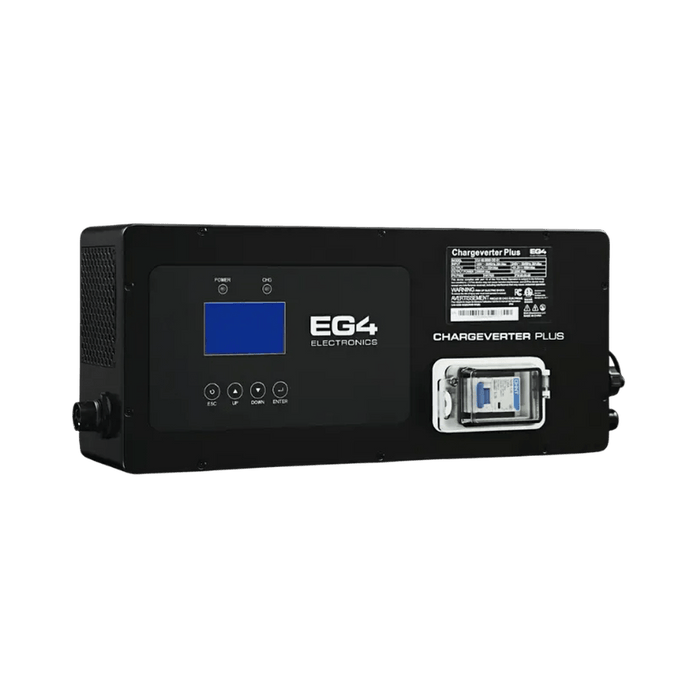

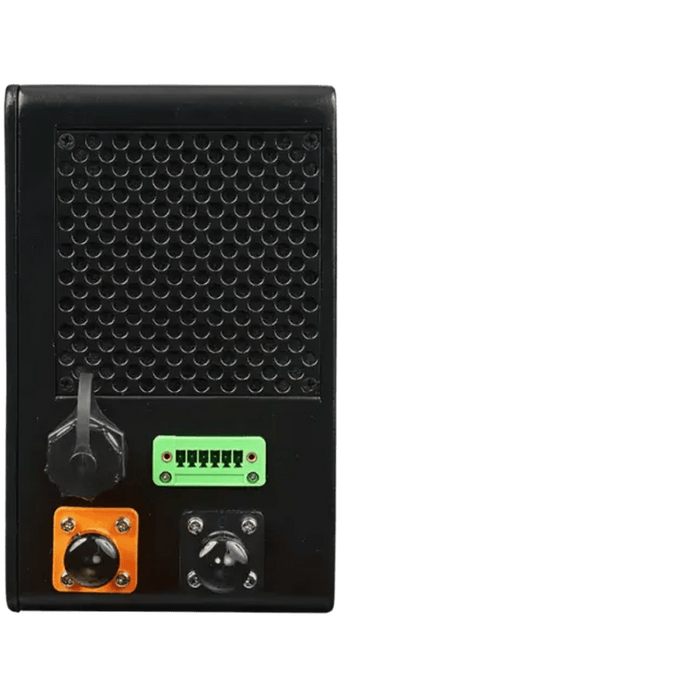

The EG4 Chargeverter Plus is a UL-certified AC-to-DC battery charger designed for 48V lithium battery systems and high-THD power sources such as generators and unstable grid power. It accepts a wide 90–264VAC input and provides adjustable 40–60VDC charging output, with up to 100A at 240VAC or 50A at 120VAC. CAN/RS485 communication enables compatible closed-loop battery charging, while built-in generator dry contacts support automatic generator start/stop functionality. The IP54-rated enclosure and wide operating-temperature range make it suitable for covered outdoor, residential, off-grid, and backup-power installations.
KEY FEATURES
- Up to 5.12kW Charging Power – Delivers up to 5,120W of DC charging power when supplied with 240VAC.
- 100A Maximum Charging Current – Adjustable from 0–100A at 240VAC.
- 50A Maximum at 120VAC – Provides up to 50A continuous charging from 120VAC.
- 80A Maximum at 208VAC – Supports up to 80A charging at 208VAC.
- Adjustable Charging Voltage – Output voltage can be configured from 40–60VDC.
- High-THD Power Compatible – Designed to condition unstable generator and grid power for reliable battery charging.
- Wide AC Input Range – Supports 90–264VAC at 50–60Hz.
- CAN/RS485 Communication – Supports communication with compatible lithium battery BMS systems.
- Automatic Generator Control – Built-in dry contacts support two-wire generator start/stop control with programmable warm-up and cool-down functions.
- IP54 Protection – Designed for protected outdoor and indoor installations with resistance to dust and light water exposure.
- Built-In Battery Breaker – Integrated breaker provides a convenient method for disconnecting charger output.
- Adjustable Charging Parameters – Allows charging voltage and current to be configured for compatible battery systems.
- 48V Lithium Battery Compatibility – Designed for compatible 15S and 16S lithium battery configurations.
- Extreme Temperature Operation – Rated for operation from -40°F to 131°F (-40°C to 55°C).
- UL Certified – Certified to UL1012 with FCC Class B compliance.
INCLUDED ITEMS
- Power Supply Cord
- Dry Contact Cable
- Positive (Red) & Negative (Black) 4AWG Battery Cables
- CAN/RS485 Communication Cable (RJ45 to RJ45)
Specifications
| Brand | EG4 |
| Product Name | Chargeverter Plus |
| Model | CU-48-5000-OD-01 |
| SKU | EG4CV48V100AIP54 |
| Big Battery SKU | INV037 |
| Product Type | AC-to-DC Battery Charger / Converter |
| Nominal Battery Voltage | 48VDC |
| Compatible Battery Configuration | 15S or 16S Lithium |
| Charge Current | 0–100A @ 240VAC / 0–80A @ 208VAC / 0–50A @ 120VAC |
| Charge Voltage | 40–60VDC adjustable |
| Default Charge Voltage | 40VDC |
| Maximum Output Power | 5,120W @ 240VAC / 2,560W @ 120VAC |
| Output Ripple | <500mV |
| AC Input Voltage Range | 90–264VAC |
| AC Input Frequency | 50–60Hz |
| Maximum Input Current | 26A @ 240VAC / 28A @ 120VAC |
| Idle Consumption | Approximately 4W |
| Communication | CAN / RS485 via RJ45 |
| Dry Contact | NO / NC / C |
| Ingress Protection | IP54 |
| Operating Temperature | -40°F to 131°F / -40°C to 55°C |
| Storage Temperature | -40°F to 158°F / -40°C to 70°C |
| Humidity | 5–95% RH, non-condensing |
| Maximum Operating Altitude | 9,843 ft / 3,000m |
| Dimensions (H × W × D) | 4.3 × 16.1 × 7.1 in / 110 × 410 × 180mm |
| Weight | 13.67 lbs / 6.2kg |
| Noise Level | <65dB |
| Certifications | UL1012, FCC Class B |
| Warranty | 3 Years when used indoors |
