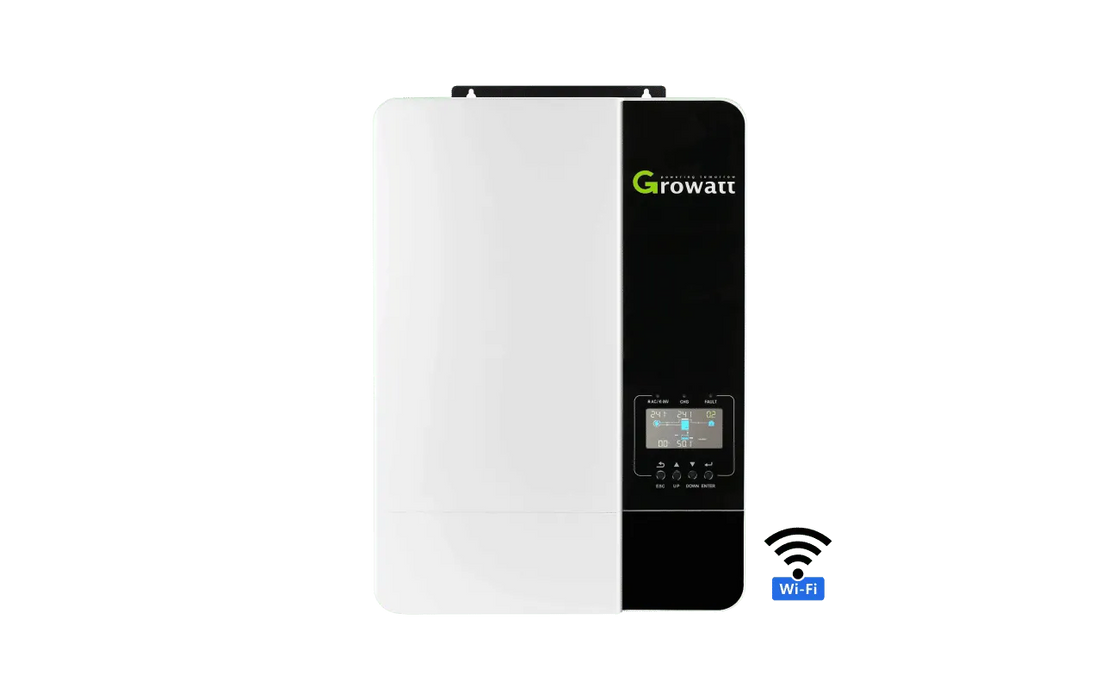

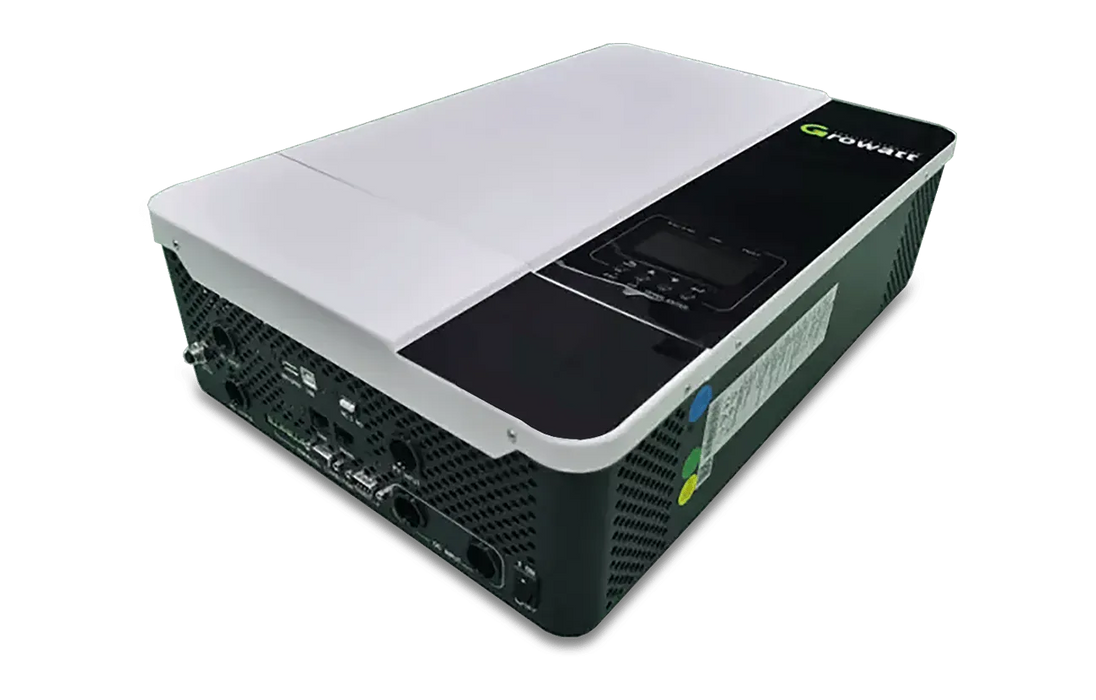

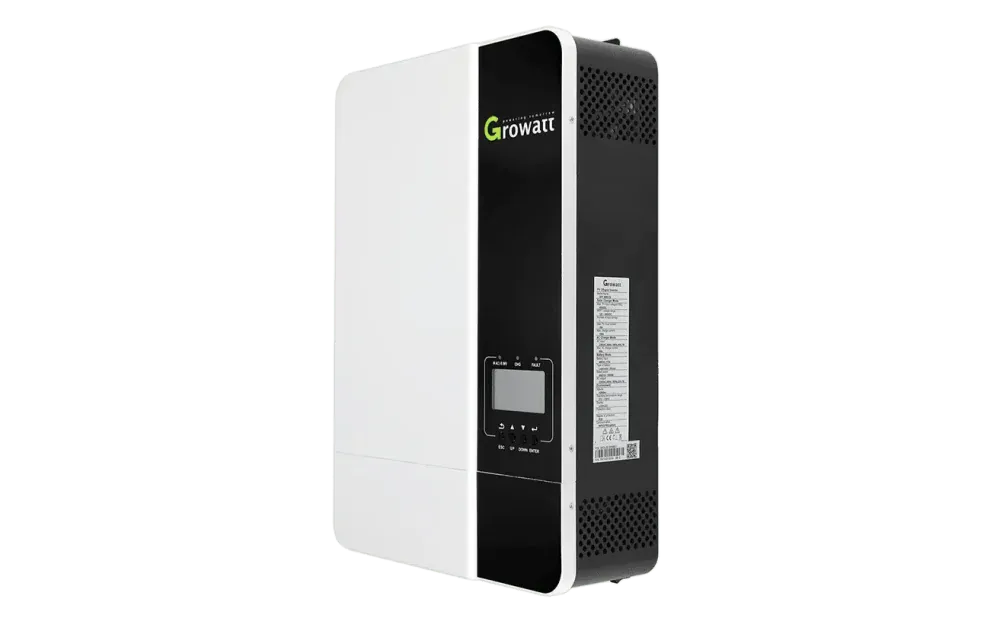

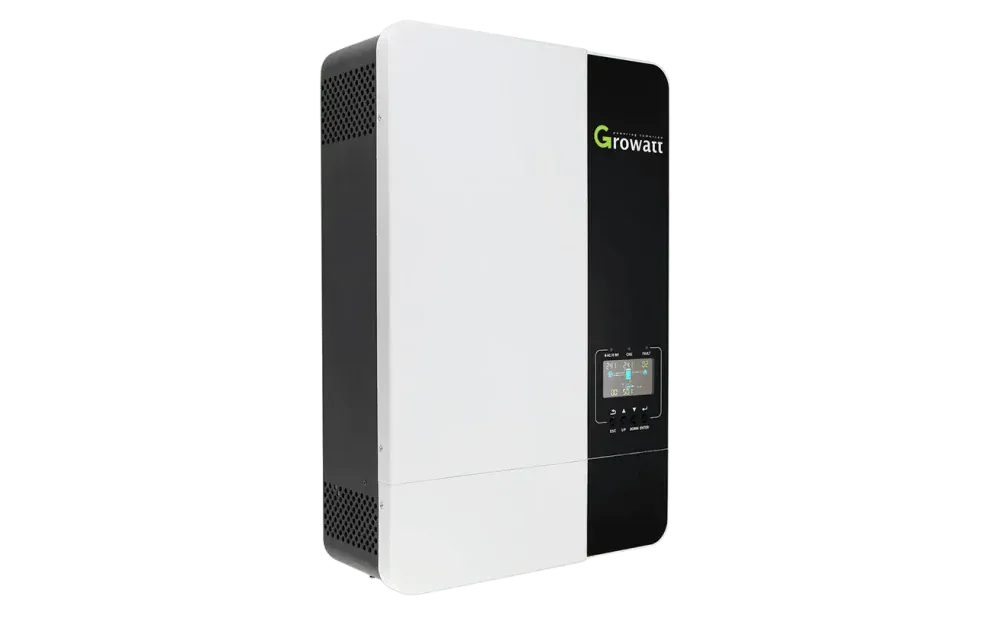

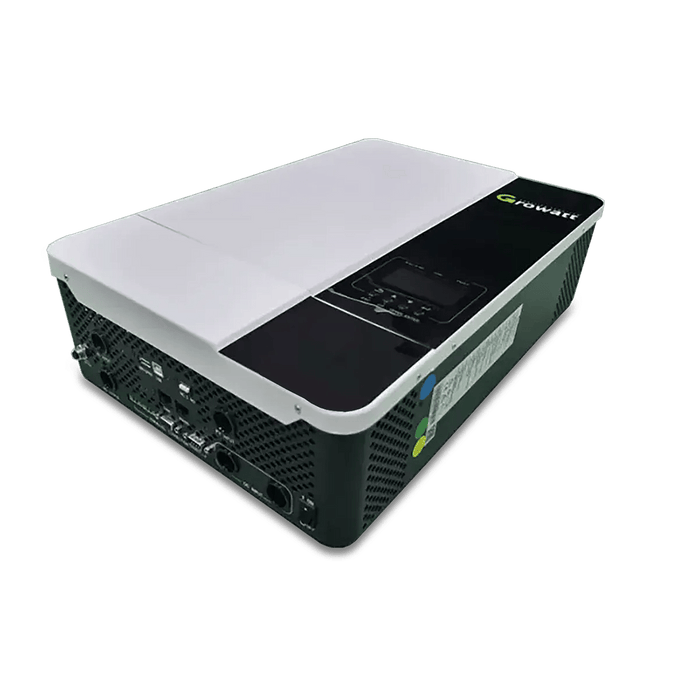

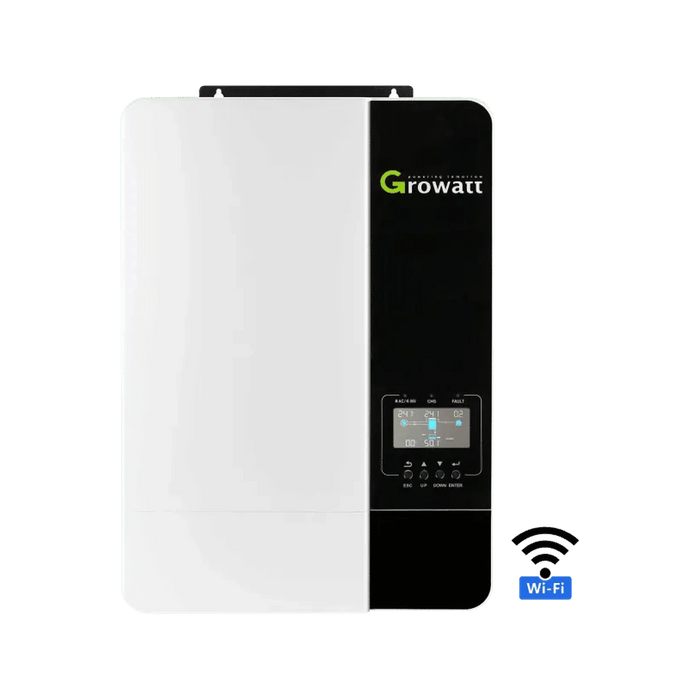

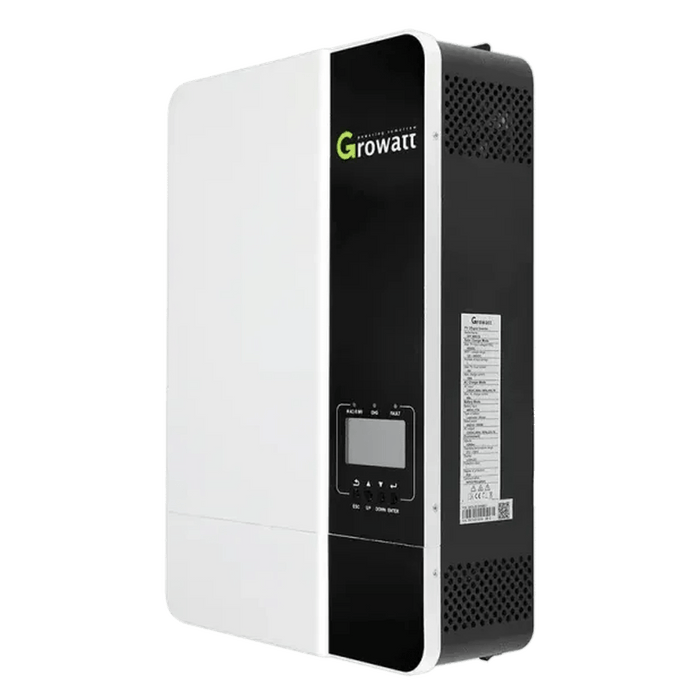

The Big Battery Growatt 3K Inverter is a compact 48V off-grid inverter/charger combining a 3,000W pure sine wave inverter, integrated MPPT solar charge controller, AC transfer switch, and battery charger in one unit. It supports up to 4,000W of PV input, provides 80A maximum PV charging, and can be configured for off-grid or solar-input priority. Up to six units can operate in parallel for systems up to 18kW, while CAN and RS485 communication support compatible battery BMS integration.
KEY FEATURES
- 3,000W Pure Sine Wave Output – Delivers clean AC power for compatible appliances, electronics, and off-grid loads.
- 6,000VA Surge Capacity – Handles short-duration startup and surge loads.
- 48V Battery System – Designed for compatible 48VDC lithium battery systems.
- Integrated MPPT Solar Controller – Built-in solar charge controller supports up to 4,000W of PV array power.
- 80A Maximum PV Charge Current – Supports high-current solar battery charging.
- 250VDC Maximum PV Open-Circuit Voltage – Supports higher-voltage PV string configurations.
- 120V AC Output – Provides 100/110/120VAC selectable output at 50/60Hz in battery mode.
- Integrated AC Transfer Switch – Automatically switches between utility/input power and inverter output.
- Power & Solar Priority Modes – Configurable operating modes help manage solar, grid, and battery power.
- UPS Functionality – Typical transfer time of approximately 10ms helps maintain connected loads during power interruptions.
- Parallel Expansion – Supports up to 6 units in parallel for systems up to 18kW.
- Split-Phase & 3-Phase Capability – Six units are required for supported split-phase or 3-phase configurations.
- CAN/RS485 BMS Communication – Supports communication with compatible lithium battery management systems.

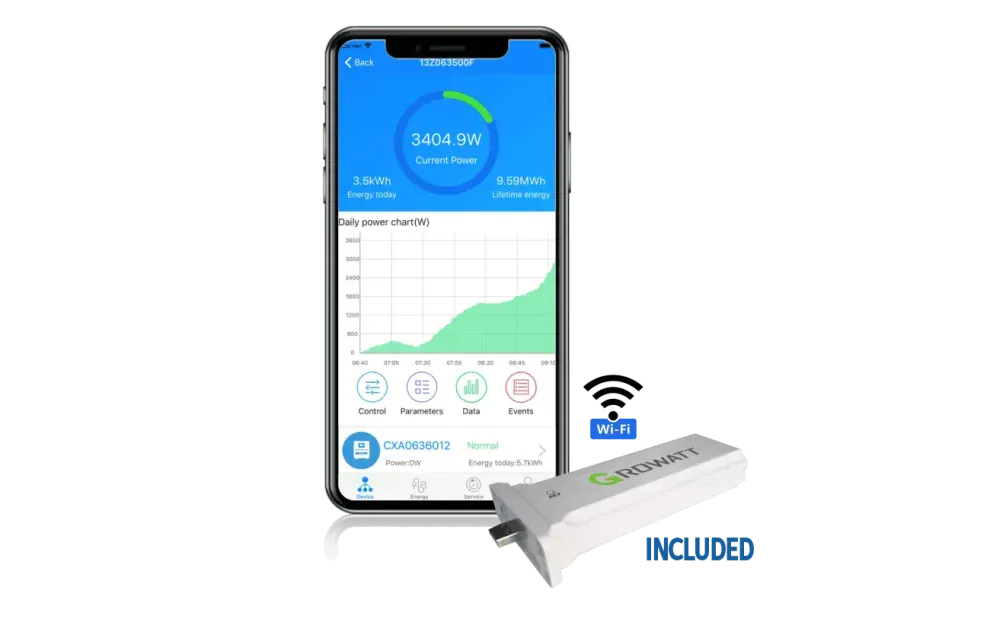

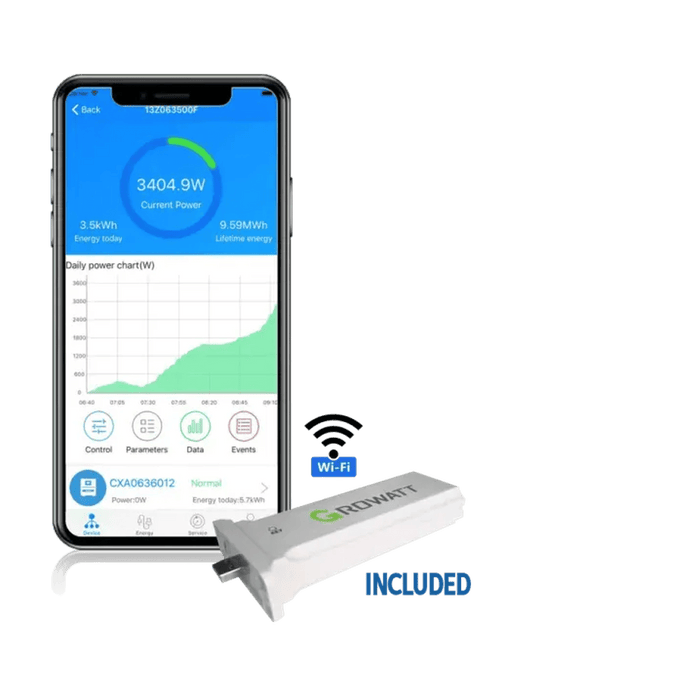

- Optional WiFi Monitoring – Supports remote system monitoring with compatible WiFi hardware.
- LCD Display – Provides system operating, charging, and fault information.
- Compact Design – Weighs approximately 26.5 lb for easier installation in space-constrained systems.
- Suitable for Off-Grid & Backup Power – Designed for homes, cabins, campers, RVs, and other mid-sized energy systems.
| Brand | Big Battery / Growatt |
| Product Name | Growatt 3K Inverter |
| Model | SPF 3000TL LVM-ES |
| SKU | INV001 |
| Product Type | Off-Grid Inverter / Charger |
| Battery Voltage | 48VDC |
| Rated Power | 3,000VA / 3,000W |
| Surge Power | 6,000VA |
| Waveform | Pure Sine Wave |
| Peak Efficiency | 90% |
| AC Output Voltage | 100 / 110 / 120VAC |
| Output Frequency | 50 / 60Hz |
| Transfer Time – Typical | 10ms |
| Transfer Time – Maximum | 20ms |
| AC Input Voltage | 120VAC |
| PC Input Voltage Range | 95–140VAC |
| Home Appliance Input Voltage Range | 65–140VAC |
| Battery Charge Current | 40A |
| Maximum PV Array Power | 4,000W |
| Maximum PV Charge Current | 80A |
| Maximum PV Open-Circuit Voltage | 250VDC |
| MPPT Trackers | 1 |
| Strings per MPPT | 1 |
| Parallel Capability | Yes, up to 6 units |
| Maximum Parallel System Power | Up to 18kW |
| 3-Phase / Split-Phase | Yes, 6 units required |
| Communication | CAN / RS485 |
| WiFi Monitoring | Optional |
| Standby Power Consumption | 2W |
| Operating Temperature | 0°C to 50°C / 32°F to 122°F |
| Storage Temperature | -15°C to 60°C / 5°F to 140°F |
| Relative Humidity | 5%–95%, non-condensing |
| Protection Rating | IP20 |

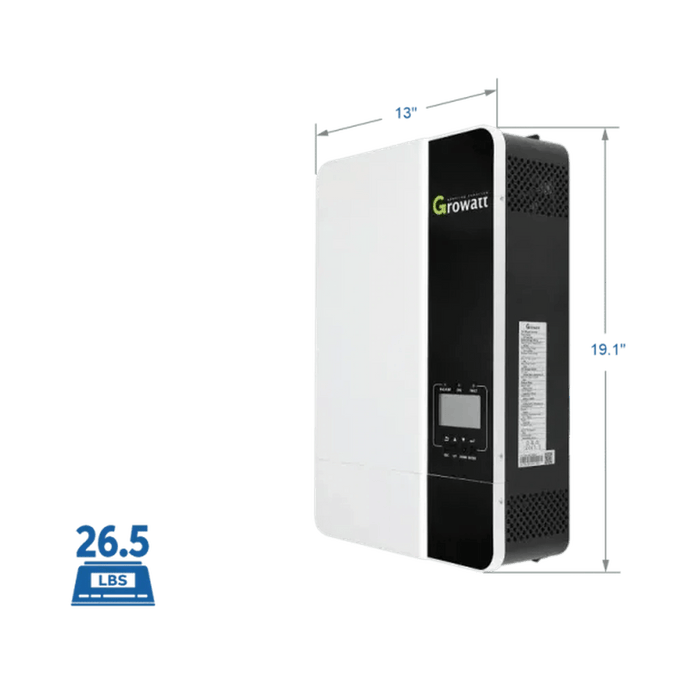

| Weight | 26.5 lbs |
| Depth | 5.3 in |
| Width | 13 in |
| Height | 19.1 in |
APPLICATIONS
- Off-grid solar systems
- Home backup power
- Cabins and small homes
- RVs and camper systems
- Battery-based solar storage
- Self-consumption systems
- Small commercial and mobile power applications
- 48V HUSKY 2 battery systems
