Big Battery | Victron MultiPlus-II 48/5000/70-95 120V

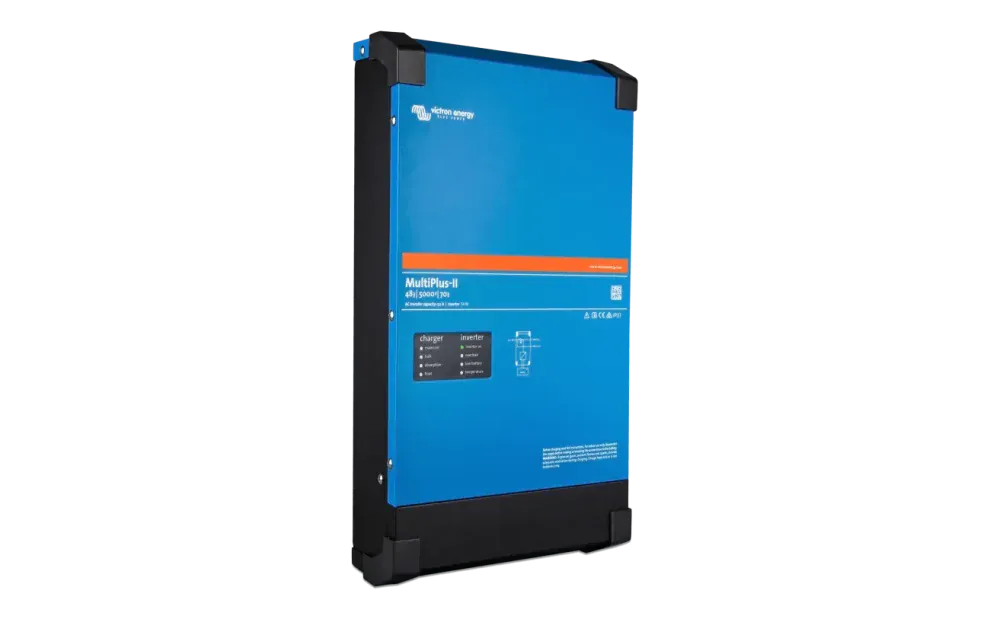

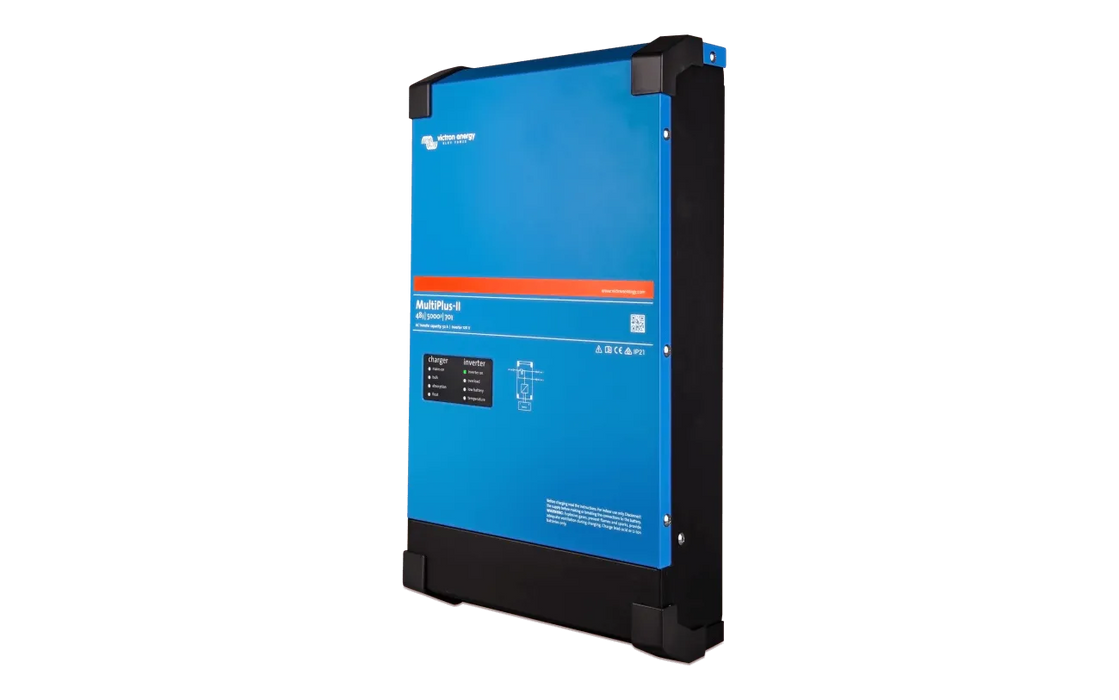

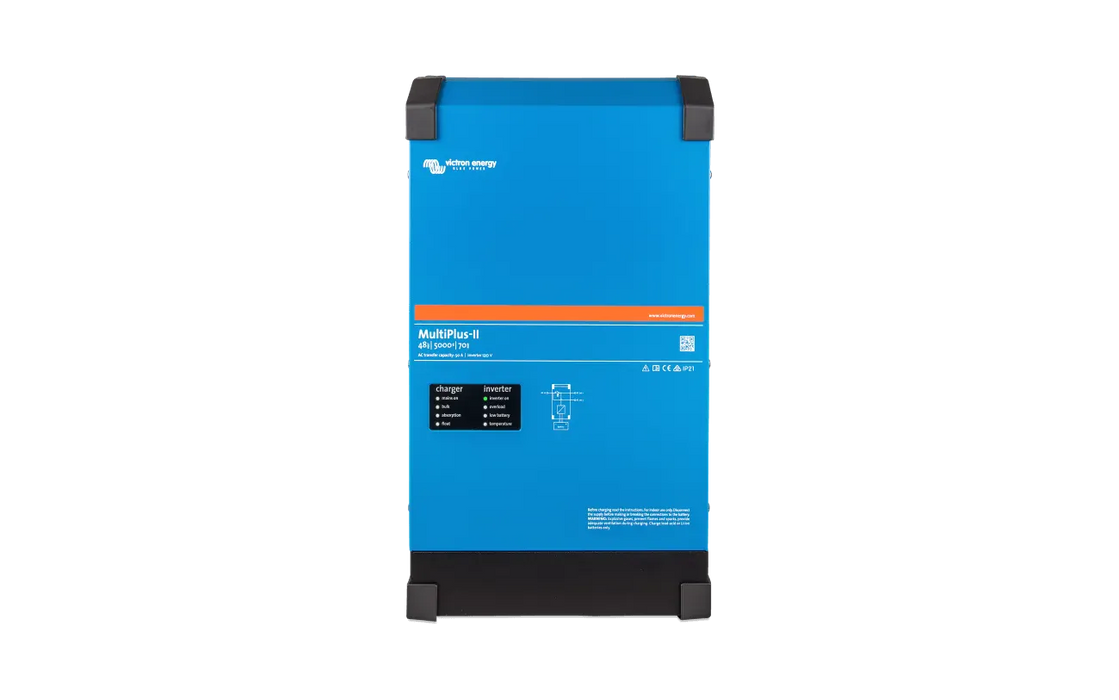

Victron MultiPlus-II 48/5000/70-95 120V
The Victron MultiPlus-II 48/5000/70-95 120V is a high-capacity 48V inverter/charger designed for off-grid, backup-power, RV, marine, and energy-storage systems. It combines a 5,000VA / 4,000W continuous inverter, 70A battery charger, PowerControl, PowerAssist, pure sine-wave output, and a 95A AC transfer switch. The MultiPlus-II can integrate with Victron GX devices for monitoring and control and supports parallel and advanced ESS configurations.
KEY FEATURES
- 5,000VA Inverter Capacity – Provides 5,000VA continuous output at 25°C, with 4,000W continuous power.
- 5,500W Peak Power – Handles short-duration surge loads up to 5,500W according to the Big Battery listing.
- 70A Battery Charger – Provides up to 70A of charging current for compatible 48V battery systems.
- Pure Sine Wave Output – Delivers clean AC power suitable for sensitive electronics and appliances.
- 120V AC Output – Provides regulated 120VAC output at 60Hz.
- PowerControl – Limits AC input current to help prevent overload when connected to shore power or a generator.
- PowerAssist – Combines AC input with battery power to supplement higher temporary loads.
- 95A Transfer Switch – Integrated transfer switch supports fast switching between AC input and inverter operation.
- ESS Ready – Supports advanced Victron Energy Storage System configurations.
- Parallel Operation – Multiple units can be configured in parallel for increased output power.
- Victron GX Integration – Compatible with Victron GX devices for system monitoring, control, and remote management.
- External AC Current Sensor Support – Optional sensor can extend AC input control up to 100A.
- Advanced Communication – Includes VE.Bus and general-purpose communication interfaces for system integration.
- Wide AC Input Range – Accepts 90–140VAC input at 45–65Hz.
- High Efficiency – Up to 96% maximum inverter efficiency according to the Victron technical datasheet.
- Built-In Protection – Includes protection against overload, short circuit, battery under-voltage, and excessive temperature.
Specifications
| Brand | Victron Energy |
| Product Name | MultiPlus-II 48/5000/70-95 120V |
| Big Battery SKU | INV015 |
| Model | 48/5000/70-95 |
| Product Type | Inverter / Charger |
| Battery Voltage | 48VDC |
| Continuous Power at 25°C | 5,000VA / 4,000W |
| Continuous Power at 40°C | 3,700W |
| Continuous Power at 65°C | 3,000W |
| Peak Power | 5,500W |
| Inverter Waveform | Pure Sine Wave |
| AC Output Voltage | 120VAC |
| AC Output Frequency | 60Hz ± 0.1% |
| AC Voltage Regulation | 120VAC ± 2% |
| Maximum Inverter Efficiency | 96% |
| AC Input Voltage Range | 90–140VAC |
| AC Input Frequency | 45–65Hz |
| Maximum AC Input Current | 95A |
| Transfer Switch Rating | 95A |
| Maximum Battery Charge Current | 70A |
| Battery Charge Absorption Voltage | 57.6V |
| Battery Charge Float Voltage | 55.2V |
| Battery Storage Voltage | 52.8V |
| External AC Current Sensor | Up to 100A, optional |
| Parallel Operation | Yes |
| VE.Bus Communication | Yes |
| General-Purpose Communication Ports | 2 |
| Remote On/Off | Yes |
| Programmable Relay | Yes |
| Operating Temperature | -40°C to +60°C / -40°F to 140°F |
| Humidity | Max. 95%, non-condensing |
| Protection Category | IP22 |
| Battery Connection | M8 bolts |
| AC Connection | 35mm² / 2 AWG |
| Weight | 71 lb / 32 kg |
| Height | 26.6 in / 676 mm |
| Width | 13.0 in / 330 mm |
| Depth | 6.5 in / 164 mm |
| Safety Listing | UL458 |
| Warranty | 5 Years |
APPLICATIONS
- Off-grid solar power systems
- Home backup power
- RV and camper electrical systems
- Marine and yacht power systems
- Cabins and remote properties
- Battery-based ESS installations
- Generator-assisted power systems
- Victron GX energy-management systems
- 48V Big Battery HUSKY 2 INV systems
