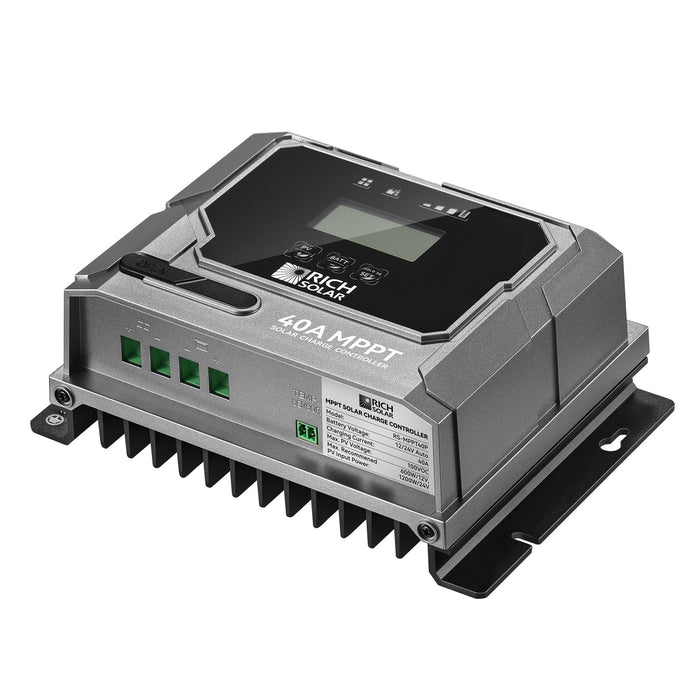

Rich Solar | BRAVO 40 | 40 Amp MPPT Solar Charge Controller | Premium 40A 12V/24V MPPT Solar Controller
Overview
FEATURES
- True MPPT, the Latest Algorithm
- Tracking Efficiency Above 99.5%
- Charge Conversion Efficiency as Higher as 98%
- 12V / 24V DC System Self-Adaptation
- Reverse Discharge Protection
- Targeted for Accurate CUSTOM Setting
- Overvoltage Protection
- Common Negative Connection
- Charging Data Storage
- Conformal Coating For Inside Board
- Designed According to UL1741, EN/IEC 62109 1
- In-house Design And Manufacture
- Extensive Internal Electronics In-Circuit Protections And Safety Protections
- Targeted For Lead Acid Batteries: Gel, AGM, WET, CRYSTAL, CALCIUM Batteries Type Selections
- Targeted For Lithium Batteries: LiFePO4, LTO (Lithium Titanium Oxide), LCO Batteries Type Selections
UNIQUE PERFORMANCE
- Splash Proof IP43
- 8+1 Battery Type Option
- Rubber Mask For Connectors Protection
- Unique Charge Management Technology For Safe And
Optimized Charge
- Unique Multiple Peaks Detected Technology For Maximum
PowerPoint Tracking
- Housing Enclosure In Patent Application
- Large and Informative LCD Display To Show Solar, Battery
and Setting Parameters
- Unique Fully Discharged Battery Recovery Or Re-Start For
Lead Acid or Lithium Battery
- Unique and Concise LED Bar / Transparent Windows
Indications In Patent Application
Specification
ATTRIBUTE | VALUE |
System Nominal Voltage: | 12/24V Auto |
Max. PV Open Circuit Voltage: | 100VOC |
Charging Technology: | MPPT |
Max PV Charging Current: | 40A |
Max. Recommended PV Input Power | 600 Watt (12V) / 1200 Watt (24V) |
Battery Type Preset: | Crystal, Gel, AGM, WET, Calcium / LCO, LFP, LTO |
Housing Case Color: | Black / Grey |
IP Grade: | IP43 for Inside PCBA, IP22 for Connection Area |
Net Weight: | 1.17kg / 2.58lb |
Dimensions (L*W*H): | 195*142*74 mm / 7.7*5.5*2.9 in |
