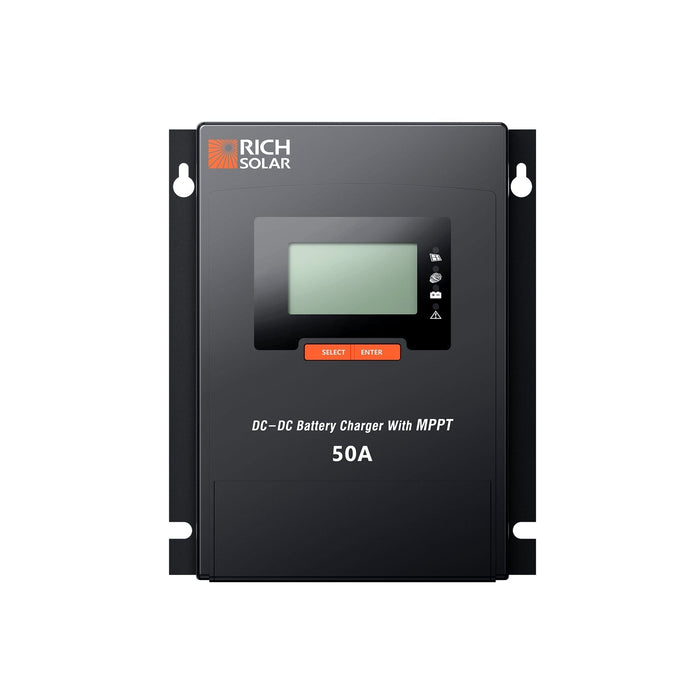

Rich Solar | BRAVO 50 DC | 50 Amp DC-DC Solar Charge Controller with MPPT | Premium 50A 12V/24V DC-DC Solar Controller with MPPT
by Rich Solar
SKU RS-MPPT50DC
Original price
$0.00
-
Original price
$0.00
Original price
$0.00
$249.99
$249.99
-
$249.99
Current price
$249.99
Overview
The BRAVO 50 DC is a high-quality charging device designed specifically for charging lithium batteries from a vehicle's alternator. This charger utilizes Maximum Power Point Tracking (MPPT) technology to optimize the charging efficiency and ensure maximum power transfer from the alternator to the battery, giving you the comfort and confidence to go fully off-grid!
FEATURES
- Can connect to PV and alternator
- Charges both leisure and starter battery
- MPPT with up to 99.9% efficiency
- Supports TTL communication
Specification
PV INPUT
- Max. Voltage of Open Circuit: 55Vdc
- MPPT Voltage Range: 17-36Vdc
- Max PV Input Current: 45A
- Max PV Input Power: 800W
BATTERY TYPE - Li-ion / Lead Acid / User Defined
- Rated Battery Voltage: 12Vdc
- Battery Voltage Range: 9-17Vdc
- Max MPPT Charging Current: 50A
- Max Alternator Charging Current: 60A
- MPPT Charging Mode: Buck
BATTERY TYPE - Lead Acid
- Rated Battery Voltage: 12Vdc
- Max MPPT Charging Voltage: 13.8V
- Max MPPT Charging Current: ≤25A
- Max Alternator Input Voltage (Conventional): 13.2-16Vdc
- Max Alternator Input Voltage (Euro 6 Standard): 12-16Vdc
- Alternator Charging Mode: Buck, Boost, Buck-Boost
EFFICIENCY
- MPPT Tracking Efficiency: >99%
- Max Charging Conversion Efficiency: 98%
COMMUNICATION
Embedded Interfaces:
TTL, Remove Switch
GENERAL
Weight: 4.7 lbs
Dimensions: 8.7 x 6.9 x 3.2 inches
Protection Degree: IP32
Operating Temperature Range: -35°C~65°C（-31℉～149℉)
