Rich Solar | BRAVO Waterproof 10 | 10 Amp Waterproof PWM Solar Charge Controller | Waterproof 10A 12V

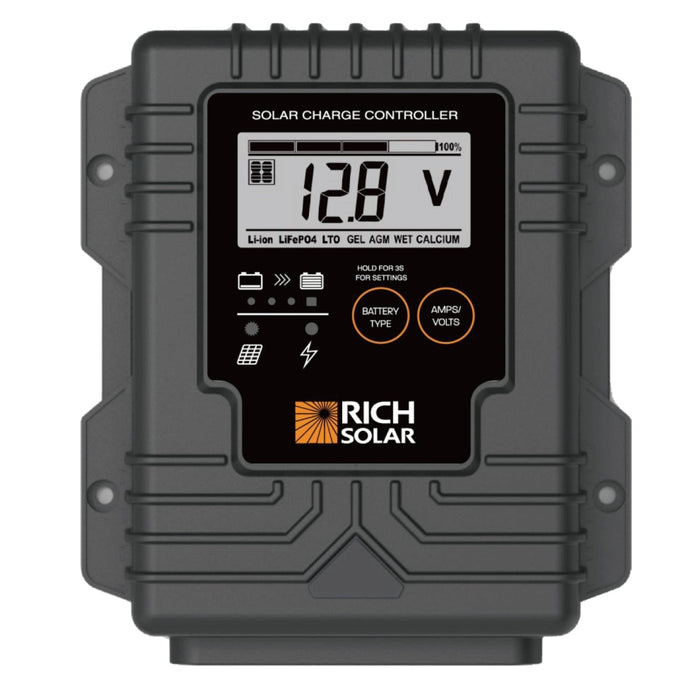

BRAVO Waterproof 10 | 10 Amp Waterproof PWM Solar Charge Controller
Waterproof 10A 12V PWM Controller for Off-Grid Systems
Reliable Power Control in a Compact, Waterproof Design
The BRAVO Waterproof 10 delivers stable and efficient power regulation for off-grid 12V battery systems. Built with rugged waterproof protection and essential safety features, this 10 Amp PWM controller is ideal for outdoor and mobile solar setups.
Features and Advantages
-
PWM Technology: Ensures high-efficiency charge regulation using MOSFET switching.
-
Waterproof Construction: Built for outdoor use with complete moisture protection.
-
Common Positive Grounding: Safe and simple electrical configuration.
-
Low Power Consumption: Efficient design minimizes energy loss.
-
Battery Type Selection: DIP switch setting supports Flooded (WET), AGM, GEL, and Lithium (LiFePO4) batteries.
-
Smart Charging Control: Manages charge cycles for optimal battery health.
-
LED Indicators: Clear battery condition and charging status display.
-
Thermal Protection: Automatically adjusts performance under high temperatures.
-
No-Spark Operation: Safe connection and disconnection under load.
-
Heavy-Duty Cables & Terminals: Built to resist corrosion in rugged environments.
-
Moisture-Resistant PCB: Conformal coating protects internal components.
-
External BTS Port: Optional temperature sensor port for more accurate charging.
-
Safety Protections:
-
Overvoltage
-
Short circuit
-
Reverse polarity
-
-
Certifications: CE standard, EMC and FCC compliant
Specification
ELECTRICAL PARAMETERS
| Rated solar panel amps: | 10AMP Max. |
| Normal input Solar cell array voltage: | 15-22VDC |
| Max. solar cell array voltage (output has no load): | 25VDC Max. |
| The controller lowest operating voltage (at solar or battery side): | 8VDC Min. |
| Standby current consumption at night | 5mA Max. |
| Maximum voltage drop-Solar panel to battery: | 0.25VDC Max. |
CHARGING CHARACTERISTICS
| Minimum battery start charging voltage: | 3VDC Min. |
| Soft start charging voltage: | 3-10±0.2VDC |
| Soft start charging current (50% PWM duty): | Up to 5AMP |
| Bulk charge voltage: | 10-14±0.2VDC |
| Equalization charging voltage at 25 ℃ | 15.5±0.2VDC |
| Equalization charging timer timed out: | 2 Hours |
| Battery temperature compensation coefficient | -24mV/°C |
| Temperature compensation range: | -20~+50°C |
PROTECTION
| Over temperature protection during charging: | 65°C |
ELECTRICAL PARTS
| Input output terminal: | M5 terminals |
PHYSICAL PARAMETERS
| Controller material: | Plastic, Standard ABS |
| Power terminal maximum stranded wire size: | #10AWG stranded-5mm² |
| Mounting: | Vertical wall mounting |
| IP grade: | IP65 |
| Net weight: | Approx. 0.3kg/0.66lb |
ENVIRONMENTAL CHARACTERISTICS
| Operating temperature: | -25~50°C(-13～122℉) |
| Storage temperature: | -40~85°C(-40～185℉) |
| Operating Humidity range: | 100% no condensation |
