Backwoods Solar | BWS 4″ AC/DC PUMP 23 GPM 320′ Submersible Pump with Controller
4AC-23-320 Submersible Pump

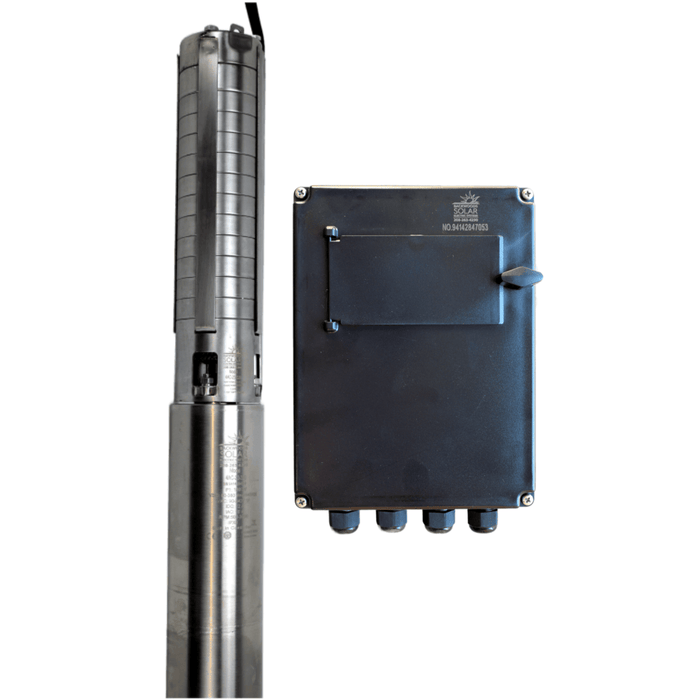

The Backwoods Solar 4AC-23-320 is a high-flow centrifugal submersible pump designed for off-grid water pumping applications. It can operate from solar power or 90–240VAC sources including the utility grid, inverter, or generator. Delivering up to 23 GPM at a 320-foot lift, it features stainless steel components, a brushless permanent magnet motor, built-in dry-run protection, and an integrated check valve. Its centrifugal design provides excellent sand-handling capability for demanding water pumping applications.
KEY FEATURES
- Delivers up to 23 GPM at a maximum lift of 320 feet.
- Centrifugal pump design provides superior sand-handling capability.
- Maximum permitted sand concentration is 120 g/m³.
- Supports solar direct and 90–240VAC power sources.
- Features a double-shielded brushless permanent magnet motor.
- Built-in high-efficiency MPPT tracker supports efficient solar operation.
- Dry-run protection automatically stops the pump when water is not detected.
- Automatically attempts to restart after dry-running conditions.
- Stainless steel pump liner, shaft, coupling, strainer, and cable sheath.
- Plastic impeller with microcast AISI 304 stainless steel base support and upper head.
- Integrated check valve in the pump head.

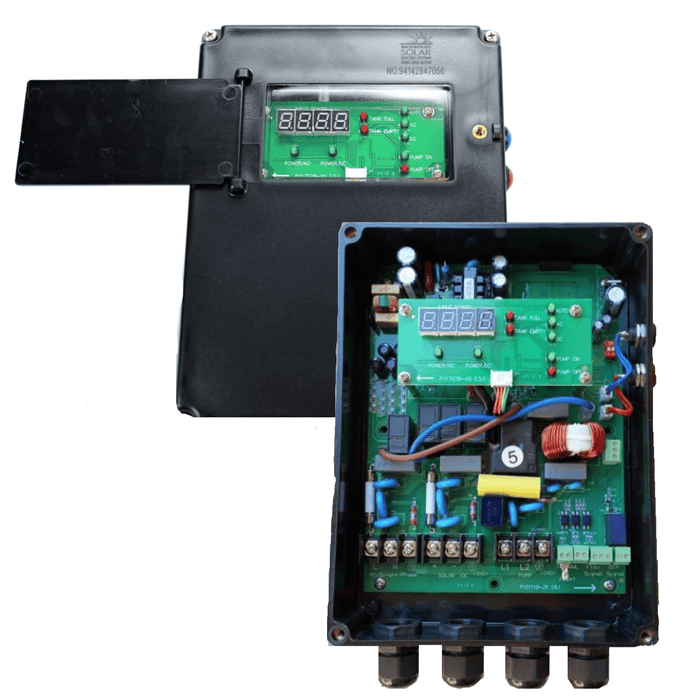

- Includes an external AC/DC pump controller.
- Can be submerged up to 150 meters (492 feet) below the static water level.
- Recommended for water temperatures up to 86°F.
- Backed by a 3-year limited warranty.
Specifications
| Specification | Details |
|---|---|
| Brand | Backwoods Solar |
| Model | 4AC-23-320 |
| Product Type | Submersible pump |
| Pump Design | Centrifugal |
| Maximum Flow | 23 GPM |
| Maximum Total Lift | 320 ft |
| Outlet | 1 1/4 in. NPT female |
| Solar Input | 130–190 Vmp |
| AC Input | 90–240 VAC |
| Motor Type | Brushless permanent magnet |
| Motor Design | Double-shielded |
| MPPT | High-efficiency MPPT tracker |
| Maximum Sand Content | 120 g/m³ |
| Dry-Run Protection | Yes |
| Check Valve | Integrated |
| Pump Materials | Stainless steel components with plastic impeller |
| Maximum Submersion | 150 m (492 ft) below static water level |
| Recommended Water Temperature | Up to 86°F |
| Controller | External AC/DC pump controller included |
| Warranty | 3-year limited warranty |
