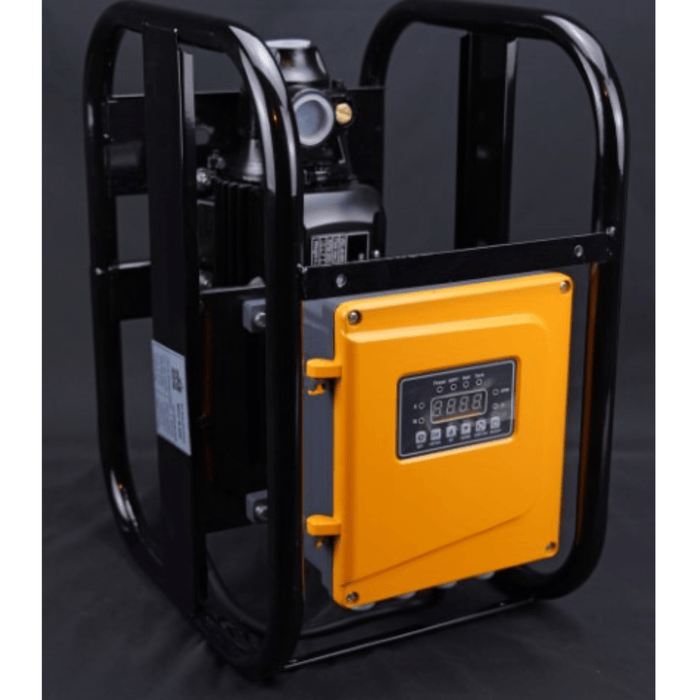

Backwoods Solar | BWS DC SURFACE MOUNT PUMP - 9 GPM 200'
SDC-9-200 Surface Mount Pump
The Backwoods Solar SDC-9-200 is a surface-mounted centrifugal pump designed for off-grid solar water pumping applications. Its brushless permanent magnet DC motor operates directly from 40–90VDC solar power and delivers up to 9 GPM at a 200-foot lift. The pump features an integrated DC controller with high-efficiency MPPT and vector control, a durable brass impeller, and built-in dry-run protection. It is designed to draw water from sources less than 25 feet deep.
KEY FEATURES
- Delivers up to 9 GPM at a maximum lift of 200 feet.
- Designed for water sources less than 25 feet below the pump.
- Centrifugal pump design with a durable brass impeller.
- Operates directly from 40–90VDC solar power.
- Optimal operating voltage range is 60–76VDC.
- Features an integrated DC-only pump controller.
- Built-in high-efficiency MPPT tracker and vector control.
- Built-in dry-run protection helps protect the pump when water is unavailable.
- Automatically stops after 10 seconds of dry running and attempts to restart after 1 minute.
- Makes another restart attempt after 30 minutes if water is still not detected.
- Includes an integrated check valve.
- Features a double-shielded brushless permanent magnet motor.
- Inlet and outlet use 1-inch NPT female connections.
- Does not include an integrated pressure switch.
- Backed by a 3-year limited warranty.
Specifications
| Specification | Details |
|---|---|
| Brand | Backwoods Solar |
| Model | SDC-9-200 |
| Product Type | Surface-mounted pump |
| Pump Design | Centrifugal |
| Maximum Flow | 9 GPM |
| Maximum Total Lift | 200 ft |
| Recommended Water Supply Depth | Less than 25 ft |
| Inlet | 1 in. NPT female |
| Outlet | 1 in. NPT female |
| DC Input | 40–90VDC |
| Optimal Operating Voltage | 60–76VDC |
| Maximum Open-Circuit Voltage | 96V |
| Motor Type | Brushless permanent magnet |
| Motor Design | Double-shielded |
| Impeller | Brass |
| Check Valve | Included |
| MPPT | High-efficiency MPPT |
| Vector Control | Yes |
| Dry-Run Protection | Integrated |
| Pressure Switch | Not included |
| Controller | Integrated DC-only controller |
| Warranty | 3-year limited warranty |
