Backwoods Solar | BWS Solar Direct DC Pump Kit 3GPM-225′
3DC-3-225 Solar Direct DC Pump Kit 3.3 GPM 224 ft
The Backwoods Solar 3DC-3-225 Solar Direct DC Pump Kit is a complete off-grid water pumping solution designed for low-flow and high-head applications. It includes a 3DC-3-225 helical submersible pump with controller, four 100W 12V monocrystalline solar modules, mounting rails, MC4 cable, combiner box, breakers, surge protection, float switch, and connection accessories. The system is well suited for filling livestock troughs and holding tanks without requiring a battery bank.
KEY FEATURES
- Maximum total lift of 224′
- Maximum flow of 3.3 GPM
- Outlet 3/4″ NPT threaded female
- Double shielded brushless permanent magnet motor
- High Efficiency MPPT tracker
- Motor is rated for 20-40 Vmp/48 VOC (optimal voltage range is 30-40VDC)
- Industry leading 3 year limited warranty
Kit Includes

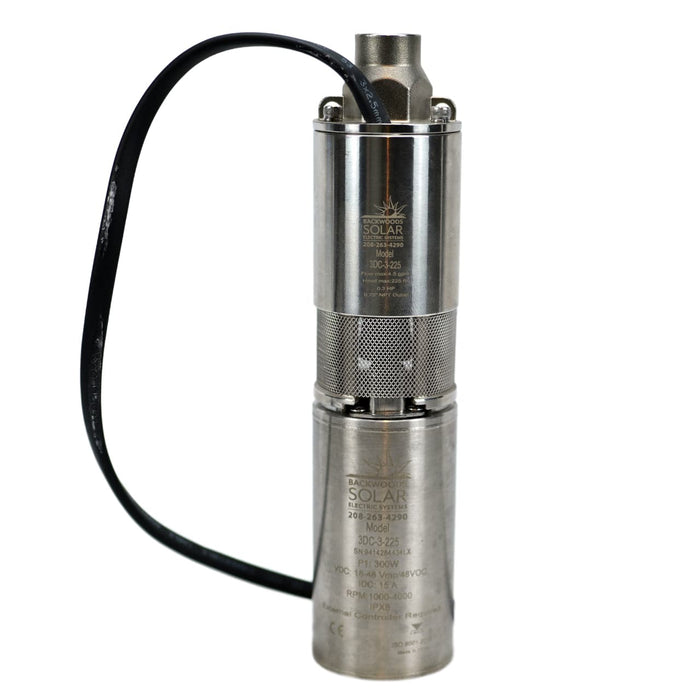

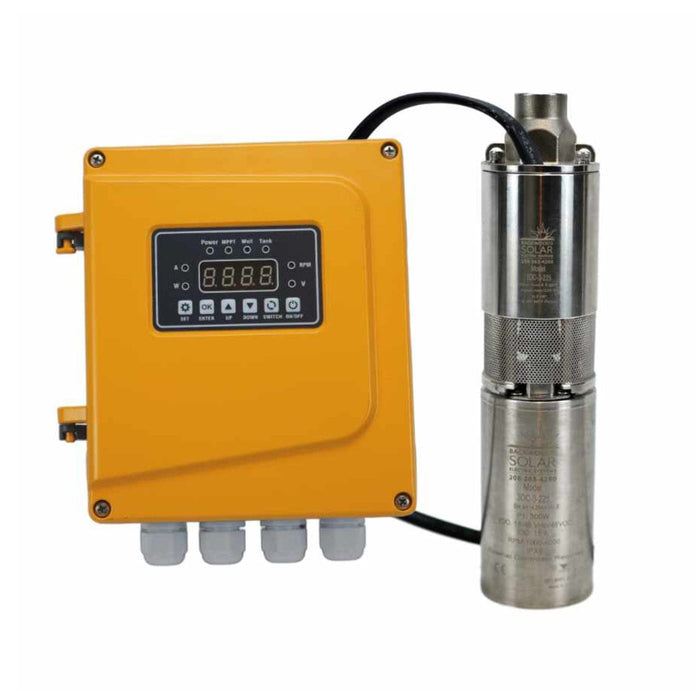

- 1 × Backwoods Solar 3DC-3-225 submersible pump with controller
- 4 × 100W 12V monocrystalline solar modules
- 1 × S-Rails Large 96-inch × 3-inch rail set
- 1 × 30 ft cable with locking MC4 plugs
- 1 × Midnite 3-circuit combiner box
- 3 × Watertight single-hole strain reliefs
- 4 × PV module ground lugs with rail clamps
- 4 × Wiley stainless steel cable clips
- 2 × Midnite 15A 300VDC DIN 1P PV breakers
- 1 × SPDT up/down float switch
- 1 × Midnite 115VDC surge protector
- 1 × Female Y connector
- 1 × Male Y connector
- 1 × 10–14 gauge 4-wire splice kit
