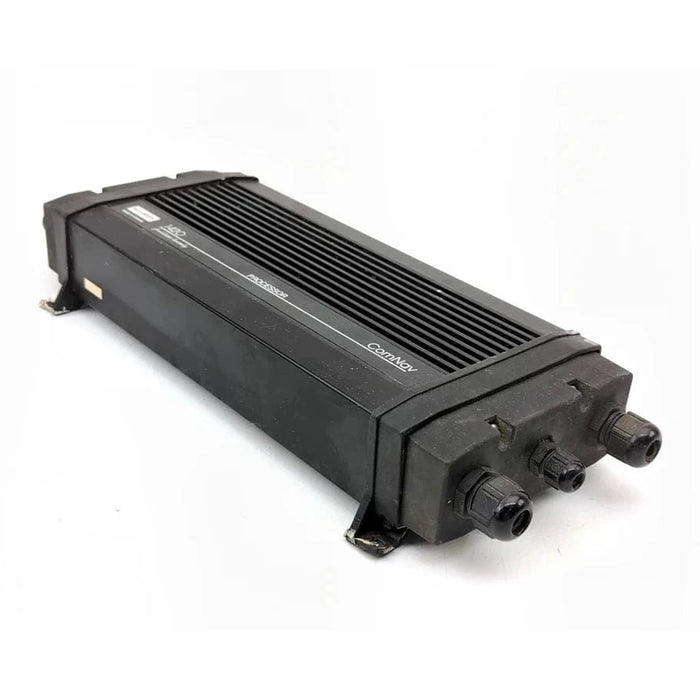

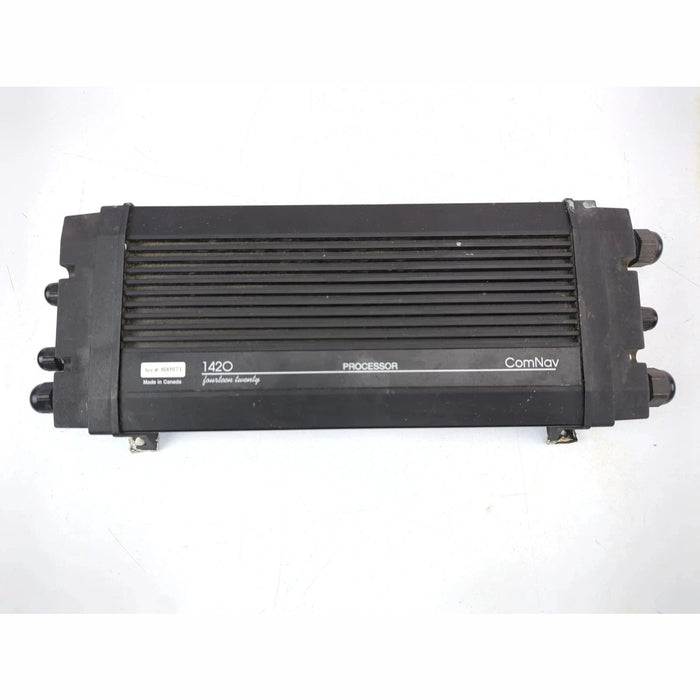

ComNav | 1420 Packs Autopilot Electronics Series
ComNav | 1420 Series Autopilot Electronics – Second Station Kit (Includes 20070002 & Installation Kit)
The ComNav 1420 Second Station Kit expands control of your 1420 Series Autopilot to an additional helm or steering location. Designed for convenience, safety, and versatility, this kit allows seamless operation of the autopilot system from two control points — perfect for vessels with dual helm stations or flybridge configurations.
KEY FEATURES
- Clip mounted allowing both fixed and hand held operation
- Suitable for small to mid-sized vessels
- Capable of operating on most standard types of steering systems
- Waterproof Control Head
- Automatic yaw, sea state and trim
- Output for optional analog rudder angle indicator, up to 4 stations
-
Easy course changes, from one degree to major changes, with the push of a button
- “Nav” mode accepts NMEA 0183 information
- One NMEA 0183 Heading Output (HDM & HDG)
- Built-in diagnostics and self test plus visual and audible alarms
- Reliable in any sea and weather condition
- Easy to install and fully compatible with your onboard instruments
- Fourteen selectable steering parameters for both Fast and Slow Modes
- Extended 3 year warranty
- Meets CE requirments
Specifications
- Operating Voltage: 10-40 VDC
- Power Consumption: Average 3 amps, 20 amps Peak
- Solenoid Output: 20 amps max.
- DC Reversing Pump: 20 amps max.
- Clutch Output: 3 amps max.
- Navigational Interface: NMEA 0183
- Heading Reference: Fluxgate / Magnetic Compass
- Course Resolution: 1º
- Course Detection: 0.25º
Installation & Operation Manual
