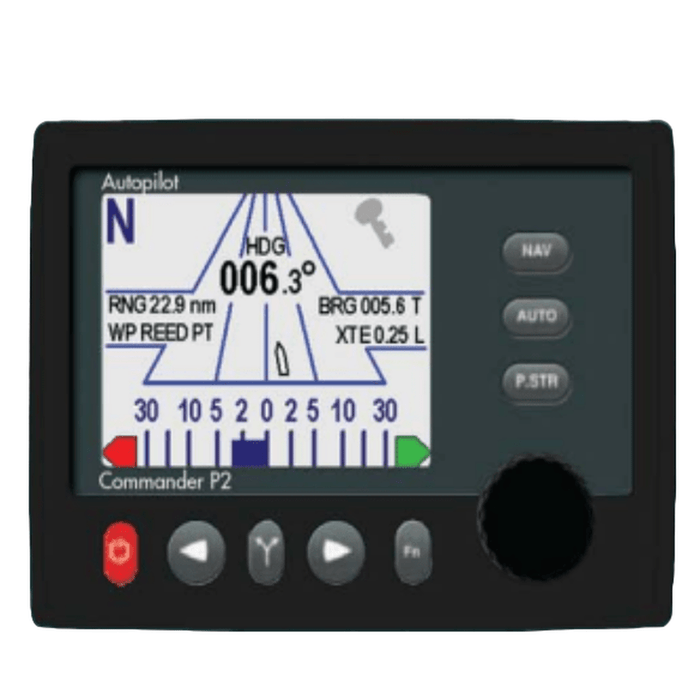

ComNav | Commander P2 (MONOCHROME) Autopilot Series

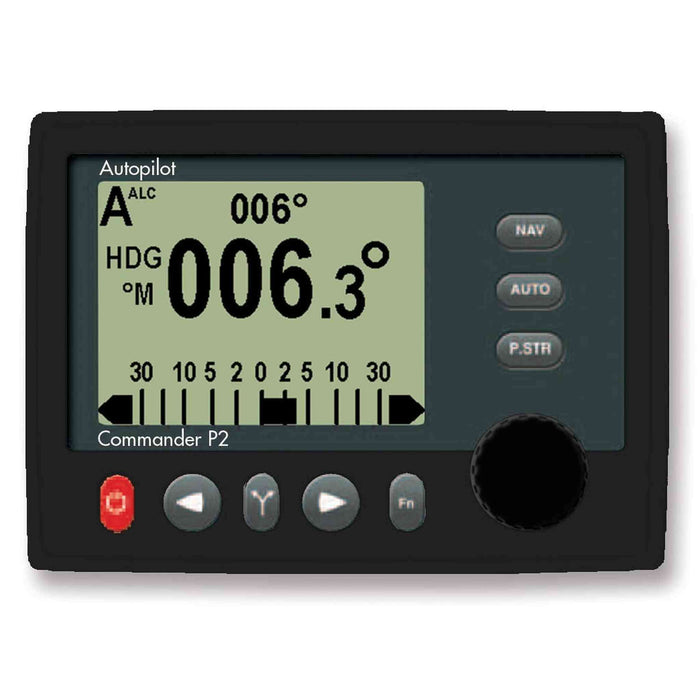

ComNav | P2 Color Pack – Without Feedback, Without Compass
The ComNav P2 Autopilot Color Pack is a compact, high-performance marine autopilot system designed for precision control and reliability. Engineered for vessels requiring exceptional rudder response and smooth handling, the P2 Autopilot offers advanced automatic setup features and intelligent control modes that simplify navigation and enhance safety at sea.
KEY FEATURES
- Auto Setup — automatic drive detection, automatic pilot calibration & automatic compass compensation
- Work Mode — Superbly suited for professional performance on vessels requiring ultimate rudder response
- Proportional Rate Control to provide gentle smooth response at fast cruising speeds
- NAV Mode provides adaptive precise track steering
- Quick Turn Selection — continuous circle, U-turn, Emergency MOB to steer the Williamson-Recovery turn
- FISH ZAG to allow the sport fisher to mimic the actions of live prey more closely
- 9 level backlit LCD display
- Colour head gives you Red Night Vision mode for comfortable viewing in all conditions
- Pre-defined parameter sets for full or semi-displacement, planning hulls, stern drives and sailboats
- Multiple steering capability for Fast, Slow and Work modes
- Simple to use course knob with mechanical detent
- Multi-station capability with security station lock
- Automatic trim
- Adjustable yaw, turn rate and rudder settings
- PORT and STBD dodge buttons for collision avoidance
- Output for optional analog rudder angle indicator, up to 4 stations
- Fully compatible with onboard NMEA instruments and most steering systems
- Versatile Wind Mode for excellent sailboat steering
Specifications
- Operating Voltage: 10 to 30 VDC
- Power Consumption: Average 0.5 Amps, 3 Amps Peak (Lower consumption capability with low backlight setting)
- Drive Output: 20 Amps
- Navigational Interface: Dual NMEA 0183 inputs
- NMEA 0183 Output: Heading (10x per sec), Autopilot Status (1x per sec)
- Heading Reference: Fluxgate, Magnetic Compass, NMEA
- Compass or Heading Sensor G2/G2B GPS compass
- Course Resolution: 1°
- Course Detection: 0.1°
- Control Head: Sunlight viewable high contrast LCD is available in color or monochrome version; QVGA (320 x 240) high resolution display
