ComNav | Commander P2VS Virtual Feedback

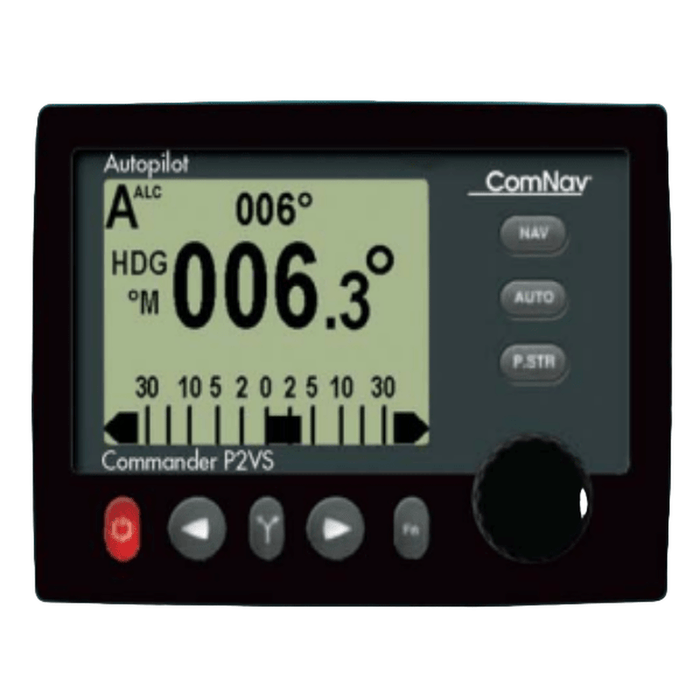

ComNav | Commander P2VS (Color) Autopilot Series
The ComNav Commander P2VS Autopilot delivers professional-grade steering control and precision for commercial and recreational vessels. Engineered for maximum reliability and smooth operation, it features adaptive steering technology, automatic setup functions, and compatibility with NMEA 0183/2000 networks. Its full-color display provides clear visibility in all conditions, making it a dependable choice for demanding marine environments.
KEY FEATURES
- Auto Learning Intelligent Steering Technology: IST
- Auto SETUP: Automatic drive detection, automatic pilot calibration &automatic compass calibration
- Auto Sea State for enhanced reliability in all weather conditions
- Crystal clear Sunlight Viewable TFT LCD Display or silver backed highcontrast monochrome LCD
- Advanced Power Features includes No Drift course: Automatic Leeway Control (ALC)
- Proportional Rate Control provides smooth response at fast cruising speeds
- GPS Nav mode provides precise adaptive track steering
- NMEA 0183 Input/output ports
- Quick Turn Selection: Fish Zag, Continuous Circle, U-Turn and Emergency
MOB turn - Simple touch 8 button illuminated keypad
- Multi-language capability configurable in English, French, Spanish, Italian
and others
- Waterproof control head commercial grade to IP67 Standards
- CE compliance for EMI & RF immunity
- Extended 3 year warranty
ADDITIONAL FEATURES
- 9 level backlit LCD display
- Color head gives you RED Night Vision mode for comfortable viewing in all ambient conditions
- Pre-defined parameter sets for stern drive
- Multiple steering capability for Fast and Slow speeds
- Simple to use course knob with mechanical detent
- Automatic trim
- Adjustable yaw, turn rate and rudder settings
- PORT and STBD dodge buttons for collision avoidance
- Fully compatible with onboard NMEA instruments and
most steering systems
Specifications
- Operating Voltage: 11 to 30 VDC
- Power Consumption: Average 0.5 Amps, 3 Amps Peak
(Lower consumption capability with low backlight setting)
- Drive Output: 20 Amps DC reversing pump or DC solenoids
- Navigational Interface: Dual NMEA 0183 inputs
- NMEA 0183 Output: Heading (10Hz), Autopilot Status (1Hz)
- Heading Reference: Fluxgate Compass with Heading Rate
Stabilizer or SSRC Rate Gyro Compass
- Course Resolution: 1°
- Course Detection: 0.1°
- Control Head: Sunlight viewable high contrast LCD is
available in color or monochrome version QVGA (320 x 240)
high resolution display
