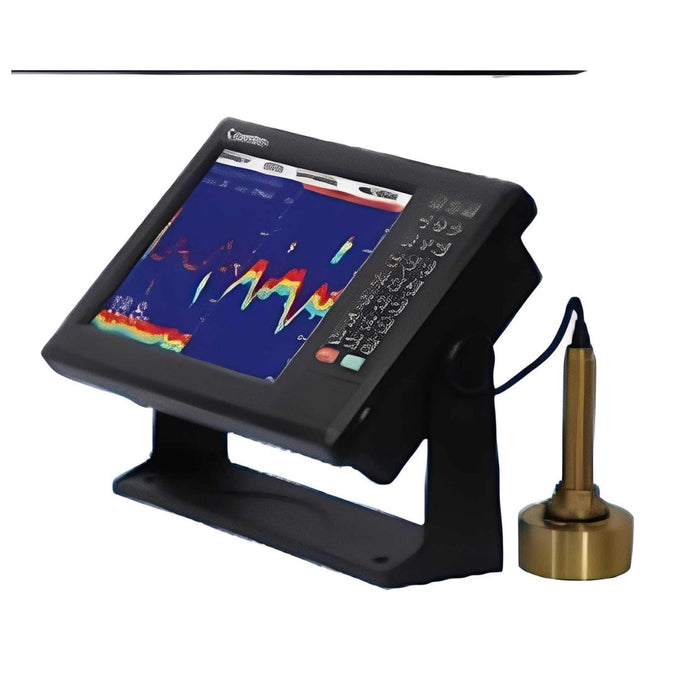

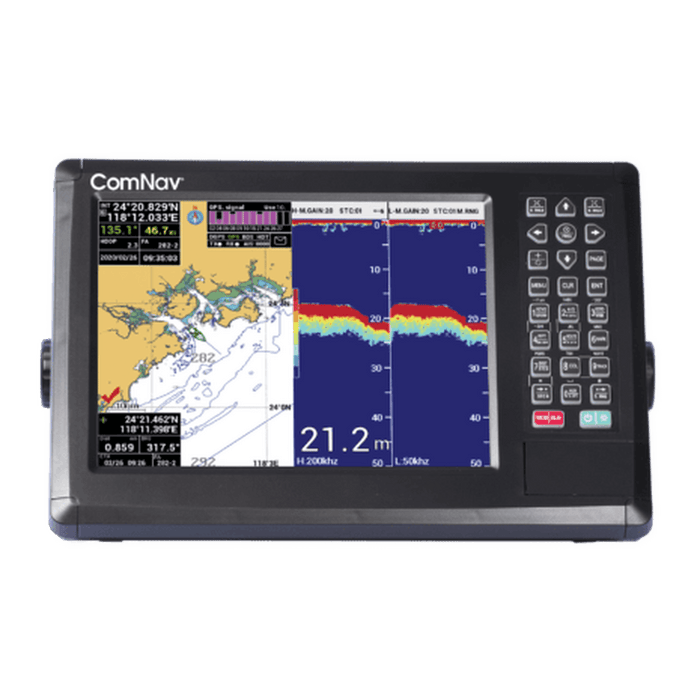

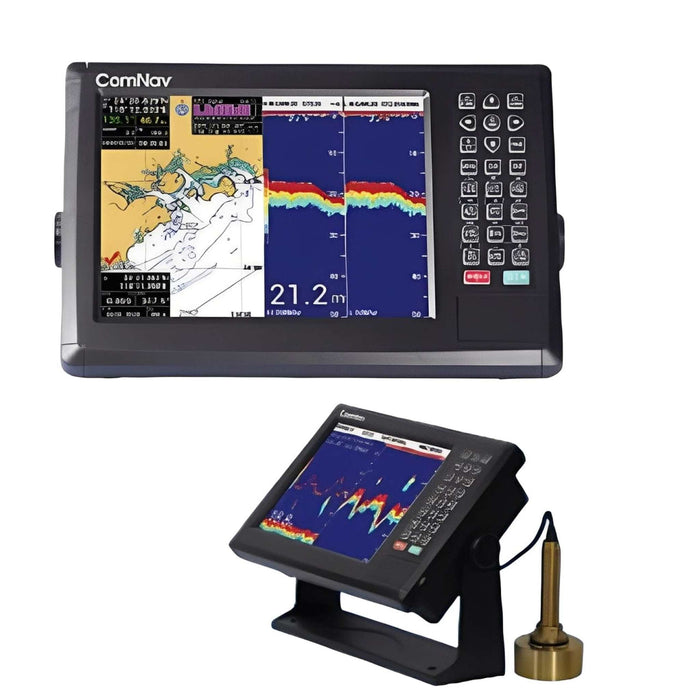

ComNav | Fishfinder | High-Performance Marine Sonar System
The ComNav Fishfinder is a powerful and reliable marine sonar system designed to deliver exceptional underwater clarity and fish detection. Engineered for both professional and recreational fishing, it combines advanced sonar technology with a bright, high-resolution display for precise imaging in shallow or deep waters. With user-friendly controls, fast response, and superior target separation, the ComNav Fishfinder enhances navigation and fishing efficiency in any marine environment.
KEY FEATURES
- 800 X 600 resolution and wide angle of view.
- Supports GPS, BEIDOU and SBAS (WAAS, EGNOS, MSAS, GAGAN).
- Provide AIS input interfaces to connect with AIS device conveniently and display AIS targets dynamically on the chart.
- Echo Sounder transmit power is 600W and transmit frequency is 50KHz / 200KHz.
- Conform to IP65 water-proof standard.
- Intelligent automatic operation mode in Echo Sounder mode, such as automatic seabed tracking, auto range, auto shift, auto gain control.
- Pre-built-in global reference chart which can be upgraded regularly.
- Floating GND power design, more stable and reliable
Specifications
| General | Environmental |
| Display | 10.4 inch Color TFT LCD |
| Display Resolution | 800 x 600 pixels (SVGA) |
| Display Brightness | 350cd/m² |
| Language | Default: English Optional: Multi-Language |
| Memory Capacity | 6000 waypoints; 10000 marks; 800 tracks; 200 routes (48 points each route); 200drawlines (40 points each drawline); |
| Interface | NMEA 0183 Input 2 Ports, NMEA 0183 Output 2 Ports |
| Chart | Optional |
| Power Supply | DC10V-36V |
| Echo Sounder Specifications | Acquisition Time |
| Transmit Frequency | 50/200KHz |
| Transmit Power | 600W |
| Range Ability | The following ranges^in meter, fathoms(FM), and feet(FT) are selectable |
| Range Units | Meter/FM: 2,5, 0, 10, 15, 20, 30, 40, 50, 80, 100, 150, 200, 300, 500, 1000 FT: 5, 10, 20, 30, 40, 50, 80, 100, 150, 200, 300, 500, 1000, 2000, 3000 |
| Manual Phasing | Each basic range can be phased (shifted) up or down in one-unit steps |
| Expansion Type | Bottom Discrimination; Bottom and Zoom are selectable |
| Display Modes | Single frequency (high or low) full-screen mode Single frequency split-screen mode with expanded Single frequency split-screen mode with bottom discrimination Dual frequency split-screen mode |
| A-Scope | The A-scope display can be turned on/off separately in right side screen |
| Gain | Adjustable in 31 steps for each operating frequency via keypad |
| STC | Adjustable in 10 steps for each operating frequency via keypad |
| Bottom Tracking Modes | Auto Range Mode, Auto Shift Mode |
| Echo Tone More | 8 colors |
| Echo Signal Level | 1 2 3 4 |
| Echo Background Color | Blue(default), black or white |
| Decoloration | Up to four weak echo colors can be turned off without changing receiver gain |
| White Line | Highlight the display the outline of bottom |
| Image Speed | 0 1 2 3 4 5 6 7 8 |
| Noise Reduction | LOW, MID, HIGH |
| Pulse-larm Modes | Shallow Mode, Deep Mode |
| Fish Alarm Color | According to the 7 different echo colors: 1(Weak), 2(L), 3(L), 4(Medium), 5(L), 6(L), 7(Strong) |
| Fish Alarm Level | Small, Medium and Large |
| Digital Depth Readout | Quick to adjust the VRM and get the depth value |
| Sonic Speed Set | 1500 meters/second (default) Adjustable over 1400 to 1600 m/sec. |
| Draft Set | Adjustable in 0.1-unit steps via menu system |
| DPT Output Sentences | $XXDPT (NMEA-0183) |
