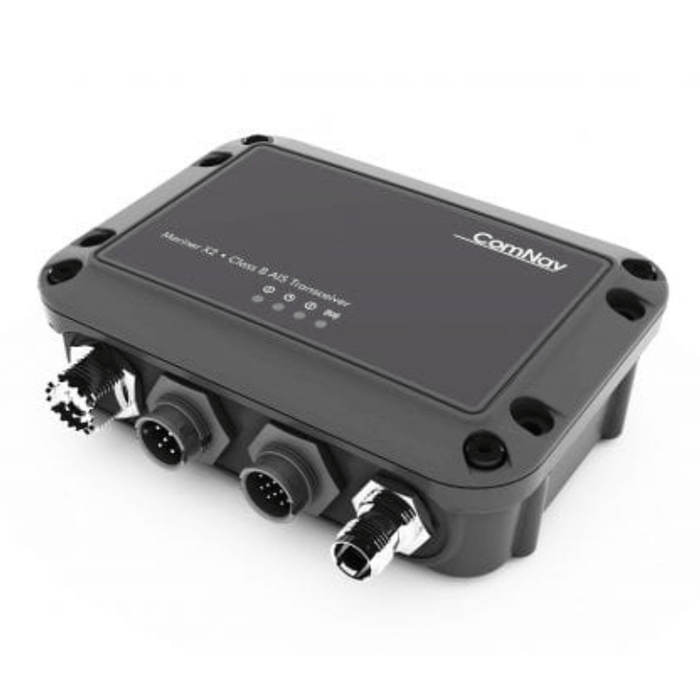

ComNav | X2 Class B AIS Transceiver
ComNav | X2 Class B AIS Transceiver
The ComNav X2 Class B AIS Transceiver delivers reliable and efficient vessel tracking for recreational, fishing, and light commercial boats. Designed for ease of installation and operation, it transmits vessel position, course, and speed data to nearby AIS-equipped vessels, ensuring improved situational awareness and maritime safety. With advanced connectivity, low power consumption, and robust marine-grade construction, the X2 is a dependable choice for boaters navigating busy waterways.
KEY FEATURES
- Display graphically AIS target overlay on standard radars and multifunction chart displays
- Standard NMEA 0183, NMEA 2000® and USB interface
- Worldwide service
- Built-in 50 channel GPS receiver complemented by an integrated GPS antenna
- Four LED status indicators
- Silent mode — User selectable
- Small and rugged, shock and vibration resistant
- Includes Pro AIS2 software for configuration and diagnostics
- Operating temp -15oC to +55oC
- Easily upgradeable through PC software via USB
- Real time display for serial data output
- Displays receiver and transmitter statistics
Specifications
| Category | Details |
|---|---|
| Power | |
| Power Supply | 12 to 24 VDC |
| Power Consumption | 150mA @ 12VDC, < 2W average |
| Connections | |
| GPS Receiver | AIS internal, 50 channels |
| Compliance | IEC 61108-1 compliant |
| Data Interfaces | |
| USB | Supported |
| NMEA 2000® | Supported |
| IEC61162-1: NMEA0183 Output | 38400 baud |
| IEC61162-1: NMEA0183 Input | 4800 baud |
| Silent Mode Switch Input | Supported |
| VHF Transceiver | |
| Transmitter / Receiver | 1 Transmitter / 2 Receivers |
| Frequency Range | 156.025 to 162.025 MHz (25 kHz steps) |
| Output Power | 2W |
| Receiver Sensitivity | < -110 dBm @ 20% PER |
| User Interface | |
| Indicators | Four LED indicators for Power, Transmit Timeout, Error, and Silent Mode |
| Environmental | |
| Waterproof Rating | IPx7 rated for water ingress |
| IEC Category | IEC 60945 "Protected" category |
| Operating Temperature | -15°C to +55°C |
| Compliance | FCC, USCG, R&TTE, IC, RoHS |
| Standards and Approvals | IEC62287-1 Edition 2, ITU-R M.1371-4, IEC60945 Edition 4, IEC61162-1/2 Edition 2, IEC61108-1, NMEA2000® Edition 2.20 |
| Supplied Accessories | |
| Included Items | 2m power and NMEA0183 data cable, 1m USB cable, proAIS2 configuration software, user manual, quick start guide, fixing screws |
