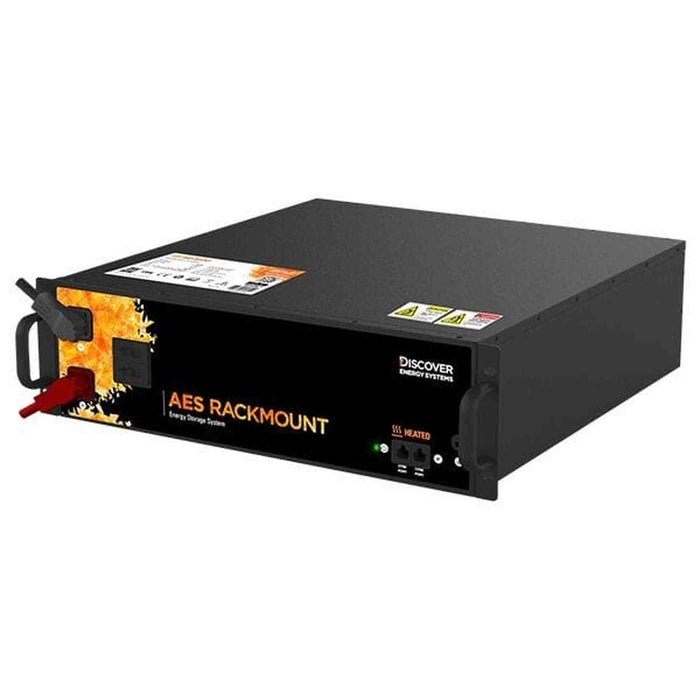

Discover Energy | AES Rackmount ESS Battery Module 5.0 Kwh 51.2V 100 Ah Heated

Overview

The AES RACKMOUNT Energy Storage System offers a streamlined solution for storing energy across a range of applications, including residential off-grid solar, whole-home backup power, and microgrids. Designed to meet UL1973 and UL9540-BESS safety standards, it simplifies permitting in North America and provides peace of mind with a 5-year standard warranty (extendable to 10 years with registration).

Engineered for high energy performance, the system ensures strong long-term value while complying with EMC Directive and FCC requirements for electromagnetic compatibility. When paired with the LYNK II Gateway, it enables seamless integration with top hybrid inverters and boosts charging efficiency.

Installation is fast and flexible—stack up to six AES RACKMOUNT Battery Modules using the Quick Stack Rack, and connect them in minutes with the AES RACKMOUNT Battery Combiner. For outdoor setups, the AES RACKMOUNT 30 kWh Outdoor Enclosure can house up to four systems, scaling storage up to 120 kWh with ease.

KEY FEATURES

• Versatile Energy Storage: Ideal for off-grid solar, whole-home backup, and microgrid applications.
• Certified Safety Standards: Complies with UL1973 and UL9540-BESS for simplified permitting in North America.
• Extended Warranty: Includes a 5-year standard warranty, extendable to 10 years with registration.
• Advanced Compatibility: Seamless integration with leading hybrid inverters via the LYNK II Gateway.
• High Efficiency: Optimized charging performance and intelligent energy management.
• Scalable Design: Stack up to 6 battery modules with the Quick Stack Rack.
• Quick Setup: Connect up to 6 modules effortlessly using the AES RACKMOUNT Battery Combiner.
• Outdoor-Ready Expansion: Compatible with AES RACKMOUNT 30 kWh Outdoor Enclosure; scale up to 120 kWh.
• EMC & FCC Compliant: Meets electromagnetic compatibility requirements for safe installation.

Specification

• Nominal Capacity: 5,120 Wh
• Usable DoD: 100%
• Voltage: 48
• Nominal Voltage: 51.2
• Discharge Temperature: 1.4^oF / 125.6^oF
• Charge Temperature: 39.2^oF / 125.6^oF
• Heating Temperature: 1.4^oF / 46.4^oF
• Dimensions:(L x W x H): 19.6" x 17.3" x 5.3"
• Weight: 97 lbs
• Cell Chemistry: LiFePO4
