Dual Pro | SB‑175 Blue Connector Kit – Pro Charging Systems 40143
SB‑175 Blue Connector Kit – Pro Charging Systems 40143

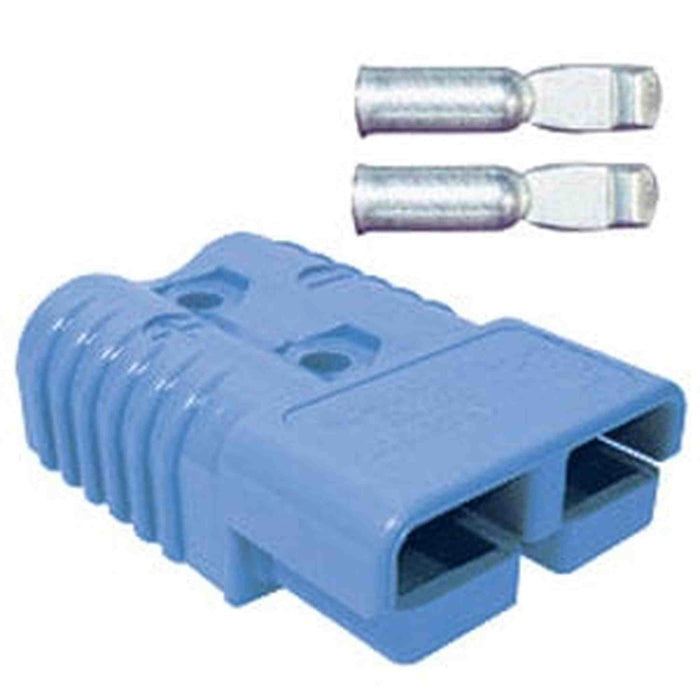

The SB‑175 Blue Connector Kit – Pro Charging Systems 40143 is a heavy-duty, genderless connector housing engineered for reliable 48V system power connections. Designed for high-current applications, this blue SB‑175 connector ensures secure and efficient power delivery while preventing mismatched connections.
Its flame-retardant polycarbonate housing and robust mechanical design provide long-lasting durability in demanding industrial, marine, and utility environments. Rated for 175 A continuous current and up to 280 A surge, it supports heavy-gauge wiring from 10 AWG to 1/0 AWG, making it an essential component for high-performance battery and power systems.
Key Features
-
Genderless Two-Pole SB‑175 Housing – Easy, secure mating for 48V systems
-
Blue Color-Coded Shell – Clear voltage identification
-
High Current Rating – 175 A continuous, 280 A surge capacity
-
Wire Compatibility – Accepts 10 AWG to 1/0 AWG cables
-
Flame-Retardant Polycarbonate (UL94 V‑0) – Durable and safe in high-heat applications
-
Mechanical Color Keying – Prevents mismatched connections
-
Wide Operating Temperature Range – –20 °C to +105 °C for demanding environments
Why Choose the SB‑175 Blue Connector Kit?
-
Ensures safe, reliable power connections for 48V systems
-
Handles high-current applications with ease
-
Durable, flame-retardant construction for long-term reliability
-
Simple, secure installation with genderless mating
Applications
The SB‑175 Blue Connector Kit – Pro Charging Systems 40143 is ideal for:
-
48V industrial and utility battery systems
-
Marine and recreational power setups
-
High-current on-board chargers and battery connections
-
Any application requiring reliable, heavy-duty connectors
Order the SB‑175 Blue Connector Kit Today
Upgrade your power system with the SB‑175 Blue Connector Kit – Pro Charging Systems 40143. Built for high performance, durability, and safety, this connector ensures your 48V system operates efficiently and reliably.
Shop now and secure reliable high-current connections for your battery system.
Specifications
- Connector type: SB‑175 two‑pole genderless housing
- Designed for use in 48 V battery systems
- Continuous current rating: 175 A; surge rating: 280 A
- Compatible wire gauge: 10 AWG to 1/0 AWG
- Housing material: UL94 V‑0 rated polycarbonate
- Mechanical keying: Color-coded (blue) for safe matching
- Temperature range: –20 °C to +105 °C
