Dual Pro | SB‑50 Gray Connector – Pro Charging Systems 40201
SB‑50 Gray Connector – Pro Charging Systems 40201

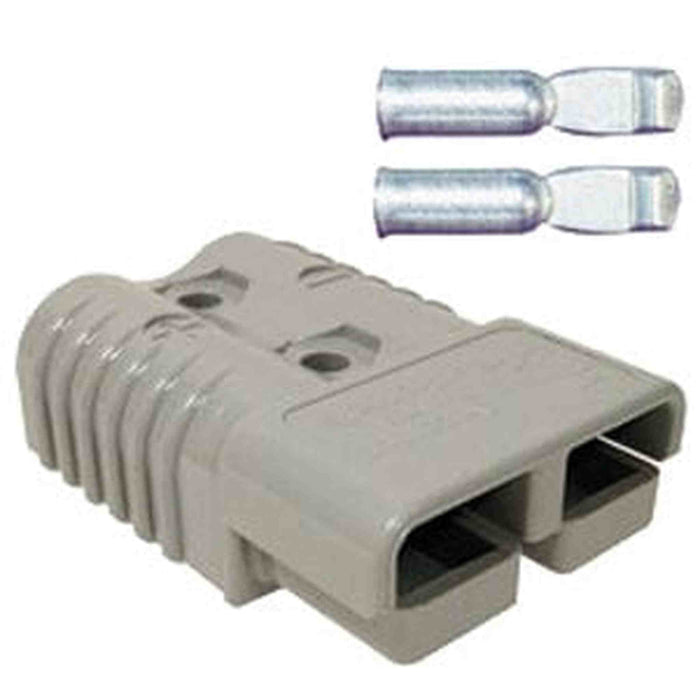

The SB‑50 Gray Connector – Pro Charging Systems 40201 is a heavy-duty, genderless connector housing designed for reliable 24V battery system connections. Engineered for durability and safety, this gray SB‑50 connector ensures secure power delivery while preventing mismatched connections through color-coded keying.
Built with flame-retardant polycarbonate (UL94 V-0) and a stainless steel spring for low-resistance contact retention, it supports UL-rated hot-plugging up to 50 A and accommodates wire sizes from 16 AWG to 6 AWG. Its rugged construction ensures repeatable, safe disconnects for marine, industrial, and utility applications.
Key Features
-
Genderless SB‑50 Housing – Simple and secure mating
-
Gray Color-Coded Shell – Clear 24V system identification
-
UL-Rated Hot-Plugging – Supports up to 50 A safely
-
Wire Compatibility – Accepts 16 AWG to 6 AWG cables
-
Stainless Steel Spring – Ensures low-resistance contact retention
-
Flame-Retardant Polycarbonate (UL94 V-0) – Durable and heat-resistant
-
Color-Matched Keying – Prevents incorrect mating
-
Reliable Disconnects – Secure and repeatable connections
Why Choose the SB‑50 Gray Connector?
-
Provides safe, reliable connections for 24V battery systems
-
Prevents mismatched mating with color-coded keying
-
Durable construction ensures long-term performance
-
Ideal for marine, industrial, and utility applications
Applications
The SB‑50 Gray Connector – Pro Charging Systems 40201 is perfect for:
-
24V battery systems in marine and industrial settings
-
On-board chargers and high-current applications
-
Utility and recreational vehicles
-
Any setup requiring secure, heavy-duty connectors
Order the SB‑50 Gray Connector Today
Ensure safe, efficient, and durable 24V connections with the SB‑50 Gray Connector – Pro Charging Systems 40201. Designed for high-performance applications, it provides reliable power and secure mating in demanding environments.
Shop now for professional-grade 24V connector solutions.
Specifications
- Connector type: Anderson SB‑50 genderless two‑pole housing
- Voltage rating: up to 600 V AC/DC
- Current rating: continuous 50 A, surge up to 120 A
- Compatible wire gauge: 16 to 6 AWG (1.5–13.3 mm²)
- Material: Polycarbonate housing, UL94 V‑0 for flammability
- Contact retention: Stainless steel springs
- Hot-plug rating: UL‑evaluated up to 50 A
- Design: Color-coded mechanical keying system for safety
- UL dielectric withstanding voltage: 2,200 V AC
