Dual Pro | SB‑50 Red Connector Kit – Pro Charging Systems 40200
SB‑50 Red Connector Kit – Pro Charging Systems 40200

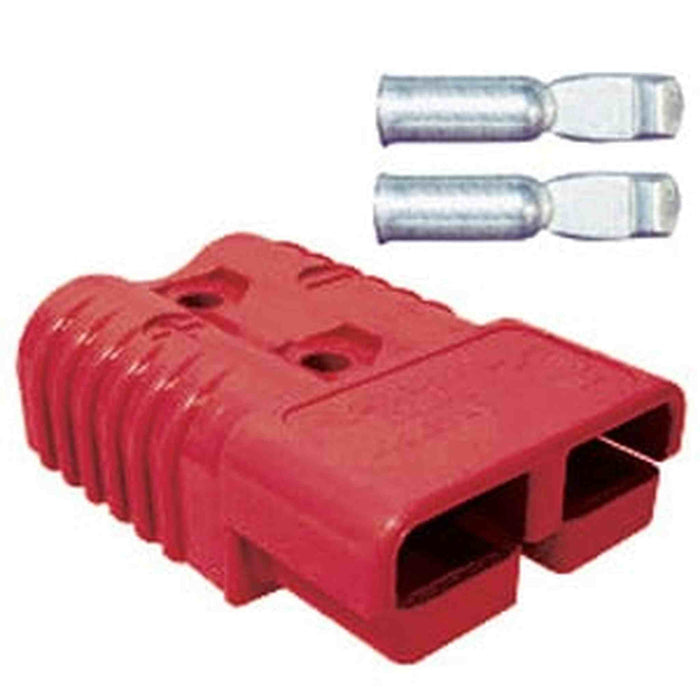

The SB‑50 Red Connector Kit – Pro Charging Systems 40200 is a rugged, color-coded connector housing designed for 24V systems. Engineered for secure battery and charger connections, this red SB‑50 kit includes the shell and crimp contacts, making it ideal for mid-range power applications requiring reliable, repeatable connections.
Built with flame-retardant polycarbonate (UL94 V-0) and stainless steel springs, the connector supports UL-rated hot-plugging up to 50 A and surge currents up to 120 A. Its genderless two-pole design allows easy mating, while compatibility with 16–6 AWG wires and multiple contact types ensures versatility in marine, industrial, and utility applications.
Key Features
-
Color-Coded Red Shell – Clearly identifies 24V system compatibility
-
Genderless Two-Pole SB‑50 Housing – Easy, secure mating with stainless steel springs
-
Hot-Plug Rated – 50 A continuous, 120 A surge
-
Wire Compatibility – Supports 16–6 AWG cables
-
Supports Multiple Contact Types – Wire, busbar, and PCB
-
Durable Flame-Retardant Housing – UL94 V‑0 rated for heat resistance
-
Operating Temperature Range – –20 °C to +105 °C
-
Reliable Repeated Mating – Built for long-term, secure connections
Why Choose the SB‑50 Red Connector Kit?
-
Ensures safe, efficient, and high-current 24V connections
-
Durable design withstands demanding marine, industrial, and utility environments
-
Genderless mating and color keying prevent mismatched connections
-
Ideal for mid-range power applications requiring secure, repeatable connections
Applications
The SB‑50 Red Connector Kit – Pro Charging Systems 40200 is perfect for:
-
24V battery and charger systems
-
On-board chargers for marine, RV, and industrial applications
-
Utility vehicles and recreational battery setups
-
Any system requiring reliable, color-coded SB‑50 connectors
Order the SB‑50 Red Connector Kit Today
Upgrade your 24V system with the SB‑50 Red Connector Kit – Pro Charging Systems 40200. Built for durability, safety, and reliable performance, it ensures secure, high-current connections in demanding applications.
Shop now for professional-grade SB‑50 connector solutions.
Specifications
- Connector type: Anderson SB 50 two-pole housing
- Color: Red
- Voltage compatibility: 24 V DC systems
- Wire gauge supported: 1.5 – 13.3 mm² (16 – 6 AWG)
- Continuous current rating: up to 50 A, surge rating to 120 A
- Housing material: Polycarbonate (PC), UL94 V‑0
- Flammability rating: UL94 V-0
- Operating temperature: –20 °C to +105 °C
- Includes: Housing and crimp contact kit
