Overview

Features

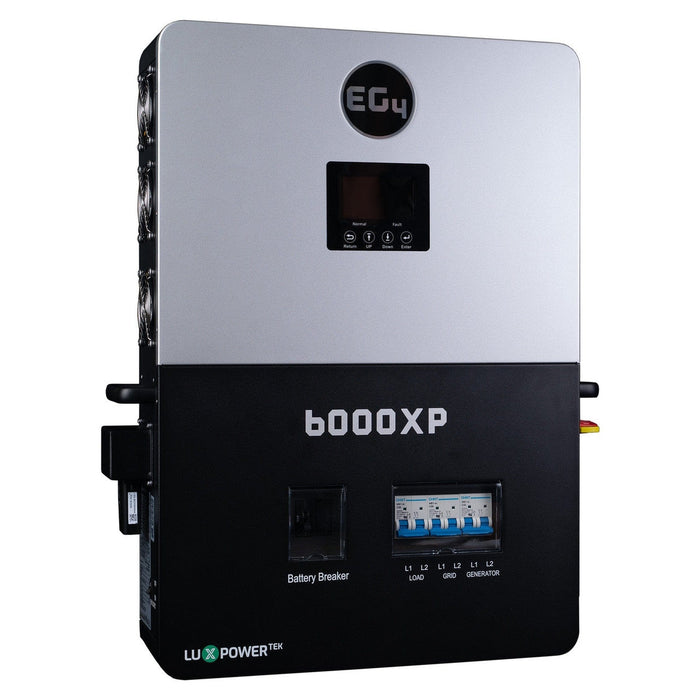

The EG4 6000XP is a sophisticated 48V split-phase off-grid inverter and charger that revolutionizes your energy setup. With a robust 8kW PV input capacity and a dependable 6kW continuous power output, it also includes a 140A battery charger. Its standout feature is scalability—connect up to 16 units in parallel to achieve an impressive 96kW of output power. Manage multiple stations and units effortlessly with our advanced EG4 monitoring software.

Performance Components

• 6000W rated output power

• Parallel capability with up to 16 units for 96kWs of output power

• Built-in Switchgear for reduced installation costs and improved safety

• Save up to $300 with built-in breakers, disconnects, and more!

• Transformer-Free Design

• Dedicated Generator Connection

• Inverter, AC Charger, and Solar Charge Controller

All-In-One

• Complete package to kickstart your setup

• Straightforward installation, hassle-free management

• Manages power from energy storage systems and grid simultaneously

• 120/240V split phase

Efficiency

• MPPT Efficiency 99%

• Outperforms similar-sized competitors by an average of 7%

• Battery Charging Efficiency 93%

• Battery Discharging Efficiency 93%

• 50W Idle Consumption (with battery)

Monitoring

• EG4 Monitoring App

  • Google Play

  • App Store

• Wi-Fi/4G/LAN

• RS485

What's Inside

• (1) 6000XP Inverter

• (1) User manual

• (1) Wi-Fi Module

• (6) Expansion Bolts

• (2) Cross-head bolts M8 Flange Nut

• (4) Cross-head bolts M3

• (1) Mounting Template

• (1) Inverter to  battery Comm. Cable (78in.)

• (1) Inverter to inverter Parallel Cable (78in.)

Specifications and Manuals

Click Here For Specification Sheet

• Rated Output Power:6000W
• Max PV Input:10,000W
• Max Charging Current:125A
• Paralleling:16 units for 96kWs
• Number of MPPTs:2 (4000W per)

Manual

Battery Compatability List

Certificate

Warranty

5-Year Warranty

______________________________________________________________________________________________

Warranty Registration and Validity

Your warranty must be registered within the first year of purchase or you must provide proof of purchase from Solar Guys Pro, an EG4 authorized distributor, for it to remain valid. Failure to register or provide proof of purchase may result in an invalidated warranty. This limited warranty applies to the original purchaser and is transferable one time only if the product remains in the original installation location. All parts exchanges are covered during the warranty period, but replacement shipping charges may apply outside the continental US.

Warranty Exclusions: EG4 Electronics is not obligated under this limited warranty for products subjected to the following conditions (including but not limited to):

1) Damages incurred during installation, reinstallation, or removal
2) Poor workmanship by an individual, installer, or firm
3) Damages from mishandling or inappropriate environmental exposure
4) Damages from improper maintenance or operating outside specified conditions
5) Tampering, altering, or disassembly of the product
6) Using the product in unintended applications
7) Damages from lightning, fire, flood, earthquake, riots, or acts of God
8) Products with altered, defaced, or removed serial numbers
9) Unauthorized firmware updates, upgrades, or patches
10) Damages from voltage or current spikes due to open-loop lithium battery communications

EG4 product warranty is a limited warranty – EG4’s liability in the event of a product defect is limited to repair or replacement under the terms of this warranty. EG4 is not responsible for any additional or indirect damages arising from the product malfunction. This includes incidental or consequential damages, such as loss of revenue, profits, or time. EG4 is not liable for any direct or indirect loss of life, bodily injury, illness, or death arising from misuse or mishandling of the product, whether caused by negligence or otherwise.

Return Policy

For returns, please contact us at: 571-350-0146 or email us at: info@solarguyspro.com. To view our return policy, please go: HERE

Warranty Claims Procedure

To initiate a warranty claim, contact our customer service team via phone at 571-350-0146 or email at info@solarguyspro.com to request an RMA. Warranty claims can also be initiated through the official EG4 website (https://eg4electronics.com/warranty).

Contact Information:
- Email: info@solarguyspro.com
- Phone: +1571-350-0146

Warranty Periods

- Inverters:
  - 10 years on 18kPV
  - 3 years (5 years extended warranty with EG4 batteries) on 3k, 6k, 6.5k, and 8k
- Batteries:
  - 10 years on LL
  - 5 years on LifePower (10 years extended when used with 18kPV)
  - 5 years on waterproof
  - 5 years on indoor wall mount
  - 10 years on outdoor wall mount
- Mini Split Air Conditioning:
   - 5 years on EG4 Hybrid AC/DC 12K BTU Mini Split
   - 5 years on EG4 Hybrid AC/DC 24K BTU Mini Split
   - 5 years on EG4 9K AC Mini Split
   - 5 years on EG4 12K AC Mini Split
