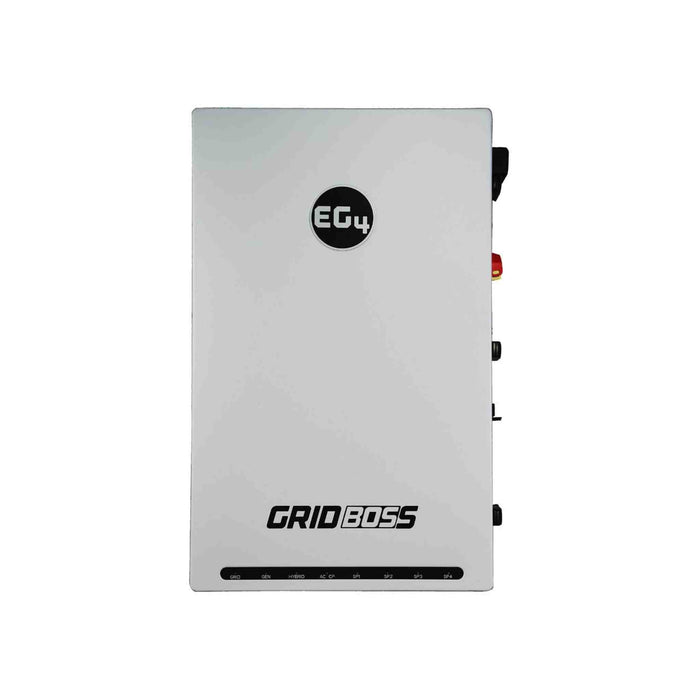

EG4 GridBOSS 200A MID

The EG4 GridBOSS 200A MID is a high-performance power gateway and microgrid interconnect device designed to streamline and centralize modern solar energy storage systems (ESS). It replaces up to ten traditional components—such as breakers, transfer switches, and control panels—with a single unit that manages the connection between the utility grid, hybrid inverters, generators, and critical loads. With a robust 200A service entrance rating, advanced smart load management, and seamless integration with EG4 hybrid inverters and monitoring platforms, the GridBOSS simplifies complex installations while improving efficiency, reliability, and visibility of system performance.

Key Features:

• Centralized System Integration - Acts as a single gateway to connect utility power, hybrid inverters, generators, and electrical loads—eliminating the need for separate breakers and transfer switches.
• High Service Capacity - 200A service entrance rating with a robust main breaker capacity designed to handle significant power demands for both backup and non-backup loads.
• Smart Load Management - Four programmable smart ports that can be configured for AC coupling or intelligent load control (rated 125A, 80A, 60A, 60A), enabling optimized energy distribution.
• Hybrid Inverter Support - Supports up to three hybrid inverters (each up to 90A, depending on model) for flexible system scaling and integration.
• Generator Integration - Includes a dedicated input for generator connection capable of handling up to 125A, allowing backup generation support.
• Real-Time Monitoring & Control - Works with EG4’s monitoring software for real-time tracking of energy flow on up to eight circuits, remote management, and system diagnostics.
• Advanced Port Programming - Features programmable drivers for dynamic energy routing and load shedding based on battery state-of-charge and system conditions.
• Rugged & Reliable Design - Built to tough environmental standards with IP14/NEMA 3R protection, wide operating temperature range (-40°F to 140°F), and robust internal busbar and fuse ratings.
• Long-Term Warranty - Backed by a 10-year manufacturer warranty for peace of mind and long-term reliability.

Specifications

• Nominal Voltage:120V AC / 240V AC
• Frequency: 60 Hz
• Max. Continuous Current: 200A
• Service Entrance Rating: 200A
• Nominal Voltage: 120V AC / 240V AC
• Frequency: 60 Hz
• Max. Continuous Current: 125A
• Nominal Voltage: 120V AC / 240V AC
• Frequency: 60 Hz
• Max. Continuous Current: 200A
• Number of Ports: 3
• Nominal Voltage: 120V AC / 240V AC
• Frequency: 60 Hz
• Max. Continuous Current (per port): 70A
• Supported Inverters: EG4 12kPV, EG4 18kPV, & EG4 FlexBOSS21
• Number of Ports: 4
• Nominal Voltage: 120V AC / 240V AC
• Frequency: 60 Hz
• Max. Continuous Current (per port): 125A / 80A / 60A / 60A
• Internal Busbar Rating: 350A
• Internal Fuse Rating: 315A
• Operating Temperature Range: -40ºF – 140ºF (-40ºC – 60ºC)
• Relative Humidity: 0 – 100%
• Altitude: <6,561 ft (2000 m)
• Protection Rating: IP14 / NEMA 3R
• Communications: RS485 / CANBus / WiFi
• Weight: 55 lbs (25 kg)
• Depth: 7 in (178 mm)
• Width: 19.7 in (501 mm)
• Height: 31.5 in (800 mm)

Spec Sheet

Manual

Warranty

10-Year Warranty

______________________________________________________________________________________________

Warranty Registration and Validity

Your warranty must be registered within the first year of purchase or you must provide proof of purchase from Solar Guys Pro, an EG4 authorized distributor, for it to remain valid. Failure to register or provide proof of purchase may result in an invalidated warranty. This limited warranty applies to the original purchaser and is transferable one time only if the product remains in the original installation location. All parts exchanges are covered during the warranty period, but replacement shipping charges may apply outside the continental US.

Warranty Exclusions: EG4 Electronics is not obligated under this limited warranty for products subjected to the following conditions (including but not limited to):

1) Damages incurred during installation, reinstallation, or removal
2) Poor workmanship by an individual, installer, or firm
3) Damages from mishandling or inappropriate environmental exposure
4) Damages from improper maintenance or operating outside specified conditions
5) Tampering, altering, or disassembly of the product
6) Using the product in unintended applications
7) Damages from lightning, fire, flood, earthquake, riots, or acts of God
8) Products with altered, defaced, or removed serial numbers
9) Unauthorized firmware updates, upgrades, or patches
10) Damages from voltage or current spikes due to open-loop lithium battery communications

EG4 product warranty is a limited warranty – EG4’s liability in the event of a product defect is limited to repair or replacement under the terms of this warranty. EG4 is not responsible for any additional or indirect damages arising from the product malfunction. This includes incidental or consequential damages, such as loss of revenue, profits, or time. EG4 is not liable for any direct or indirect loss of life, bodily injury, illness, or death arising from misuse or mishandling of the product, whether caused by negligence or otherwise.
