EG4 Indoor Buildable Conduit Box

Overview

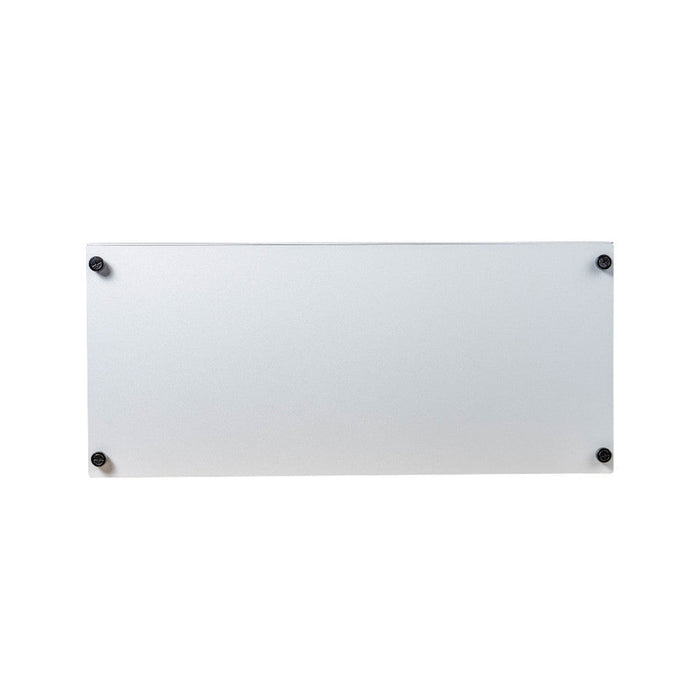

EG4 Indoor Buildable Conduit Box

The EG4® Indoor Buildable Conduit Box offers a straightforward and efficient solution for safeguarding cables and connections between the battery and inverter. This conduit box is designed to seamlessly pair the EG4 WallMount Indoor 280Ah Lithium Battery with the EG4 18kPV Hybrid Inverter, EG4 12kPV Hybrid Inverter, or EG4 6000XP Off-Grid Inverter.

Features and Benefits

• Seamless Integration: Compatible with EG4 18kPV, 12kPV, and 6000XP inverters alongside EG4 WallMount Indoor 280Ah Lithium Batteries.
• Cable Protection: Safeguards cables and connections between EG4 inverters and batteries.
• Parallel Battery Protection: Protects cables and connections on paralleled batteries, featuring side knockouts for battery-to-battery cable runs.
• Customizable Knockouts: Multiple side and top knockouts for flexible use with non-EG4 inverters.
• Code Compliance: Box size ensures proper wire spacing in accordance with NEC code.
• Easy Assembly: Simple and quick assembly with included hardware.
• Compact Shipping: Comes in a compact flat pack for convenient shipping.
• Dimensions: 9.06 x 20.47 x 9.80 in

What's Included

• Disassembled Indoor Buildable Conduit Box (6 pcs)

• M6 x 1.0 Phillips Flat Head Screw (x10)

• M6 x 1.0 Phillips Hex Head Screw w/ Washer set (x4)

• M6 x 1.0 Phillips Hex Head Screw w/ Washer set (x4)(for battery mounting)

• Rotating Cover

  • GLW-M63 Qty 4

  • GLW-M50 Qty 1

  • GLW-G 1 Qty 2

  • GLW-PG21 Qty 2

• Grommets

  • RSB-28 Qty 2

  • RSB-35 Qty 2

  • RSB-50 Qty 1

  • RSB-63 Qty 4


Specifications & Manuals

Click Here to Open Quick Start Guide

• Dimensions: 9.06 x 20.47 x 9.80 in
