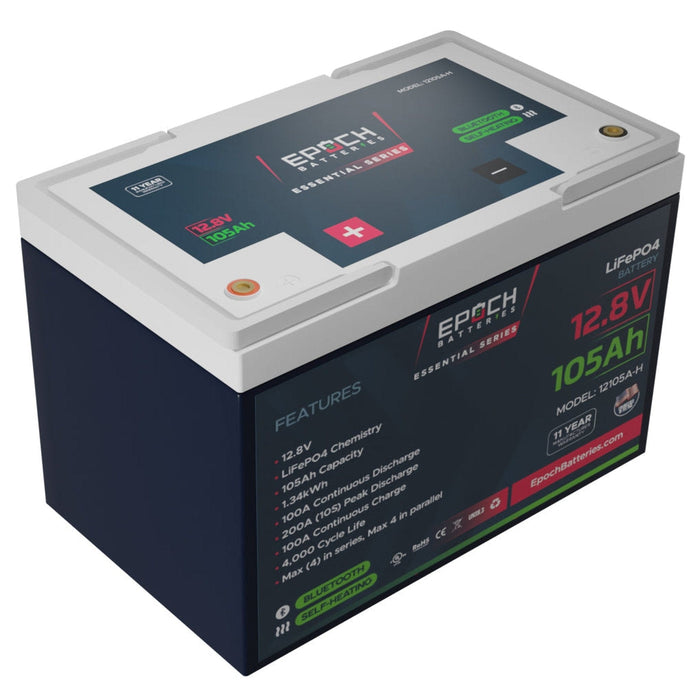

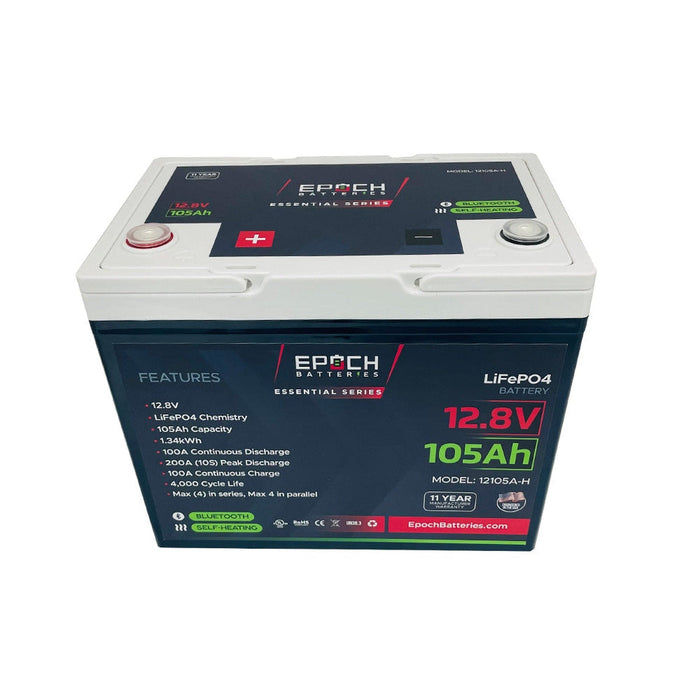

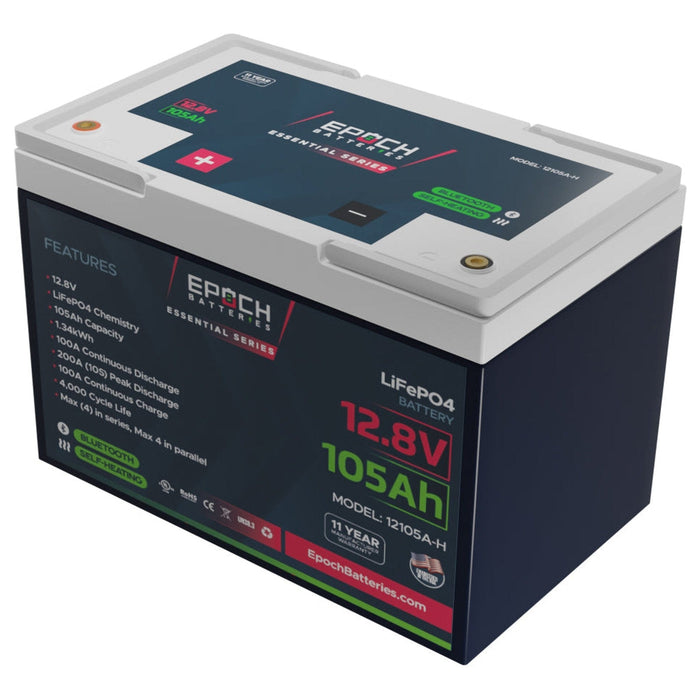

Epoch Batteries | 12V 105Ah - Group 24 - Heated & Bluetooth LiFePO4 Battery
Overview
- 54 Weatherproof
- iOS, Android Apps
- 4000+ Cycles
- Advanced BMS
- Internal Heating
- Safe & Reliable
Description
- LiFePO4 Chemistry - Deep Cycle Battery
- HEATED - Internal heating allows for charging in sub-zero conditions
- BLUETOOTH - iOS and Android Apps
- Built-in Smart Battery Management System (BMS)
- Over charge and over discharge protection
- Over current and short circuit protection
- High & low temperature disconnects
- Max (4) in Series up to 48V
- Max (4) in Parallel up to 420Ah
- 4,000+ Cycle life & Maintenance-free
- 11 Year Manufacturer Warranty
- Weight: 22.1 (LBS)
- Dimension: Length: 10.25 (inches) x Width: 6.75 (inches) x Height: 9 (inches)
Specification
CONFIGURATION
- Cell Configuration: 4S1P
- Chemistry: LiFePO4
CURRENT
- Ah Capacity: 105Ah
- Max Continuous Discharge Amps: 105A
- Max Charge Current Amps: 100A
- Max Discharge Peak Current Amps: 200A (10 Seconds)
- Series | Parallel: Max (4) in Series, Max (4) in Parallel - 4S4P
VOLTAGE
- Voltage: 12.8V
- Max Charge Voltage: 14.6V
- Operating Voltage Range: 10.0 - 14.6V
TEMPERATURE
- Charge Temp Range: -20°C (-4°F) / 55°C (131°F) (with heating)
- Discharge Temp Range: -20°C (-4°F) / 60°C (140°F)
- Storage Temp: 0°C (32°F) / 35°C (95°F)
