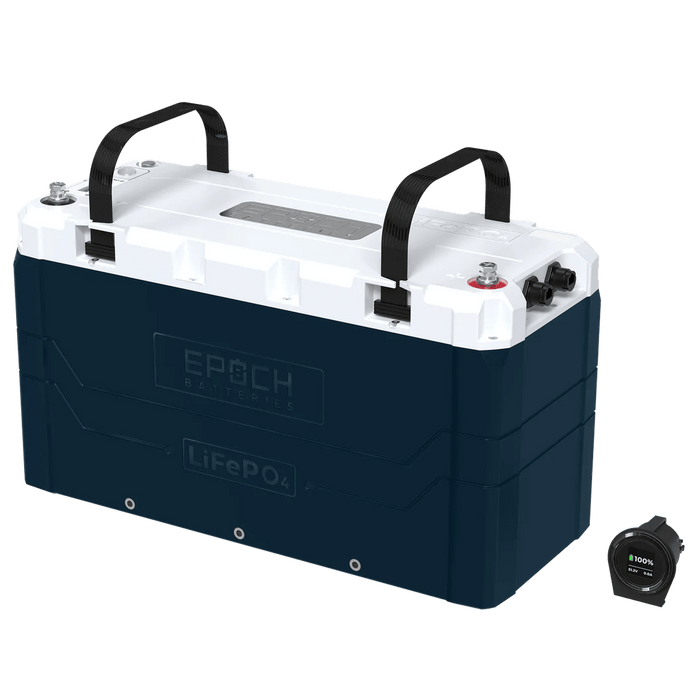

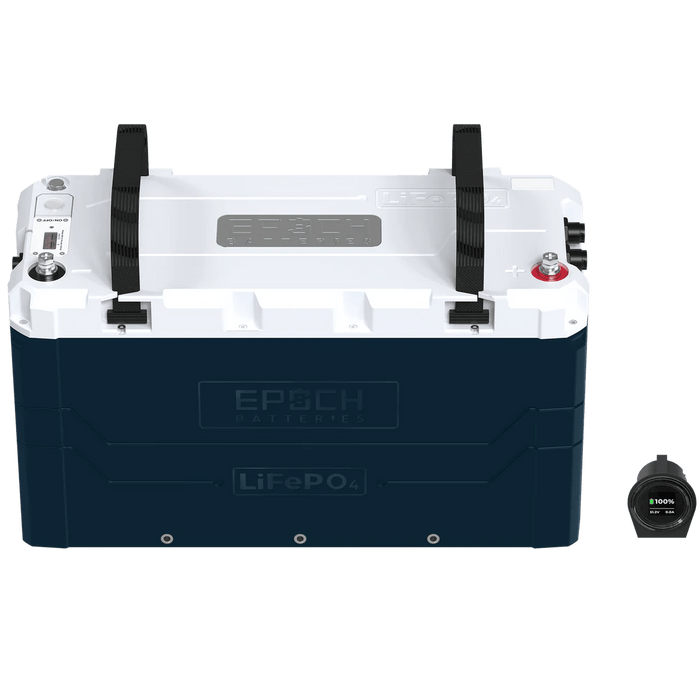

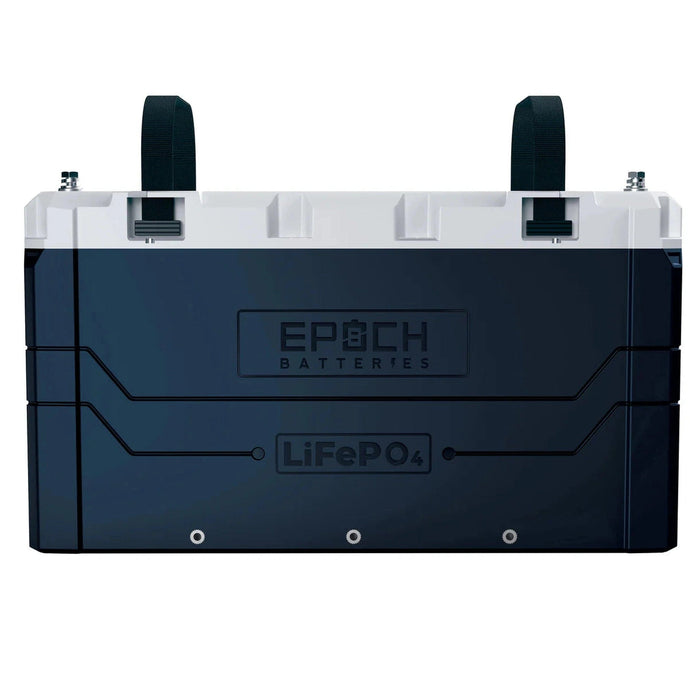

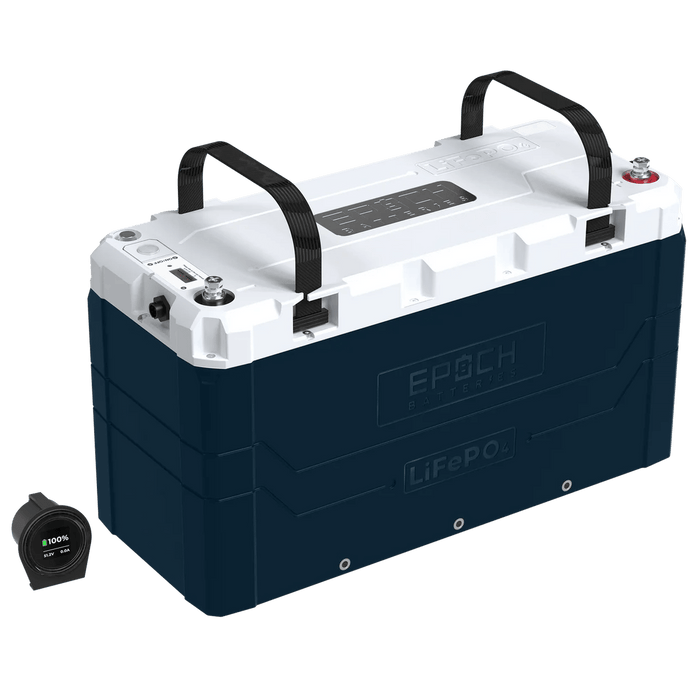

Epoch Batteries | 12V 460Ah V2 Elite Series | Heated & Bluetooth & Victron Comms LiFePO4 Battery

Overview

• IP 67 Waterproof

• iOS, Android Apps

• 3500+ Cycles

• Advanced BMS

• Internal Heating

• Safe & Reliable

Description

• LiFePO4 Chemistry
• UL60691 Certified Internal Fuse
• UL1642, UL1973, U9540A Certified Cells
• IEC 62619:2017, RoHS, CE Certified Cells
• Group 8D Size (20.9" x 8.7" x 12.1") L x W x H
• 460Ah Capacity
• 230A Max Continuous Discharge (500A 30s Discharge)
• 230A Max Continuous Charge (400A 5s Charge)
• IP67 Rated, Dust and WATERPROOF
• HEATED - Internal heating for below 0C charging
• BLUETOOTH - iOS and Android Apps
• VICTRON Communications - Parallel up to 16 together on 1 system
• External Power Button & Battery Gauge INCLUDED
• Built-in Smart Battery Management System (BMS)
• Over charge and over discharge protection
• Over current and short circuit protection
• High & low temperature disconnects
• 3500+ Cycle life & Maintenance-free
• 11 Year Manufacturer Warranty


What's Included

1 x Battery system

Specification

Data Sheet

CONFIGURATION

• Cell Configuration: 4S2P


• Chemistry: LiFePO4

CURRENT

• Ah Capacity: 460Ah


• Max Continuous Discharge Amps: 230A


• Max Charge Current Amps: 230A


• Max Discharge Peak Current Amps: 500A (30 Seconds) , 1300A (1 Second)


• Series | Parallel: Max (4) in Series OR Max (16) in Parallel - 4S1P or 1S16P

VOLTAGE

• Voltage: 12.8V


• Max Charge Voltage: 14.6V


• Operating Voltage Range: 10.0 - 14.6V

TEMPERATURE

• Charge Temp Range: -20°C (-4°F) / 55°C (131°F) (with heating)


• Discharge Temp Range: -20°C (-4°F) / 60°C (140°F)


• Storage Temp: 0°C (32°F) / 35°C (95°F)

Weight: 97 (LBS)
Dimensions
Length: 20.75 (inches)
Width: 8.5 (inches)
Height: 12 (inches)

Manuals & Downloads

User Manual
Data Sheet
